Rear Lamp Bulb Holder

Removal

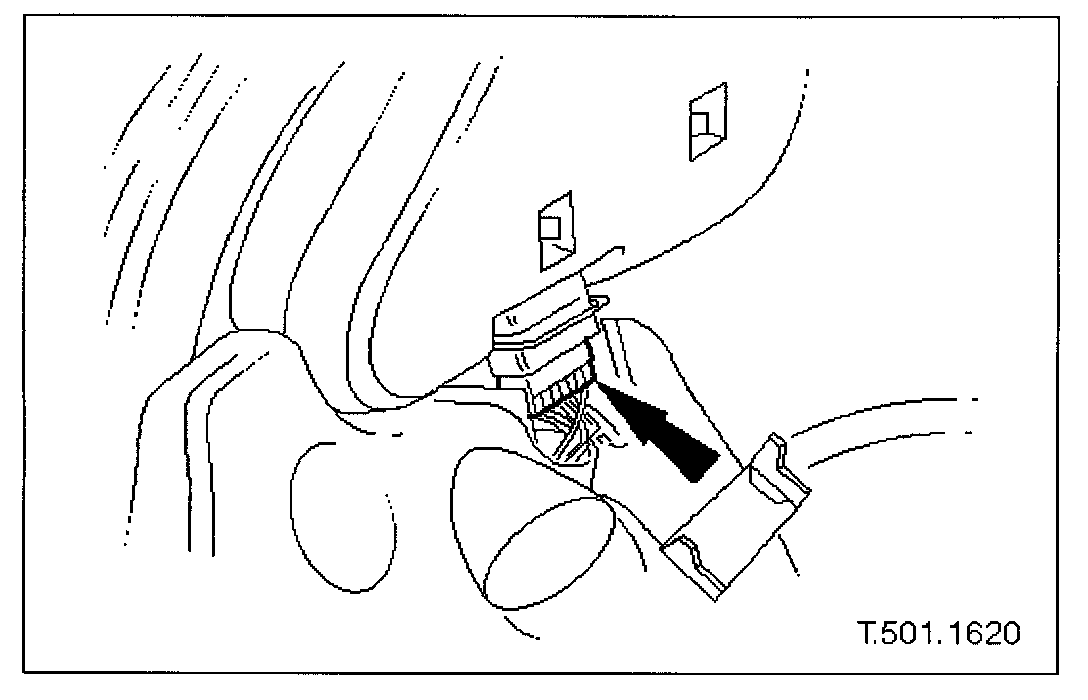

1. Release access flap in trunk rear finisher and disconnect rear lamp bulb holder harness multiplug.

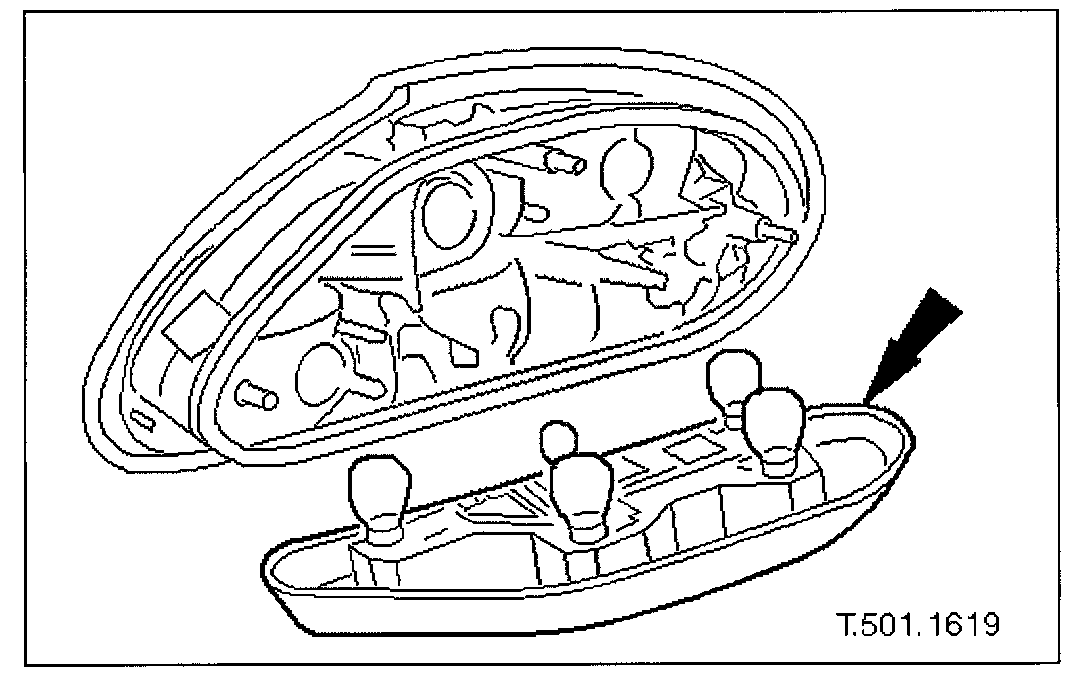

2. Release tangs securing bulb holder to lamp lens.





3. Remove bulb holder from lens and remove bulbs from holder.


Installation
1. Install bulbs in rear lamp bulb holder.
2. Install bulb holder assembly on lamp lens.
3. Connect rear lamp harness multiplug
4. Install access panel in trunk rear finisher.
