Rear Lamp Assembly

Removal
1. Open the luggage compartment lid.





2. Remove the rear lamp assembly.
- Release the two clips which secure the bulb holder.
- Remove and reposition the bulb holder for access.

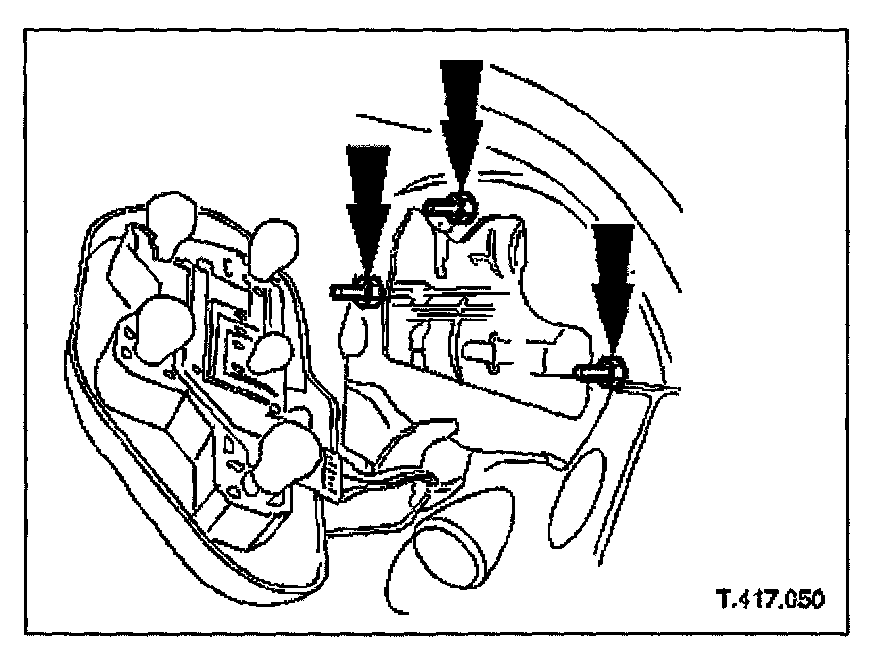

- Remove the three nuts which secure the lamp assembly.
- Remove the lamp assembly.


Installation
1. Installation is the reverse of removal
