Lamp Control Module: Locations

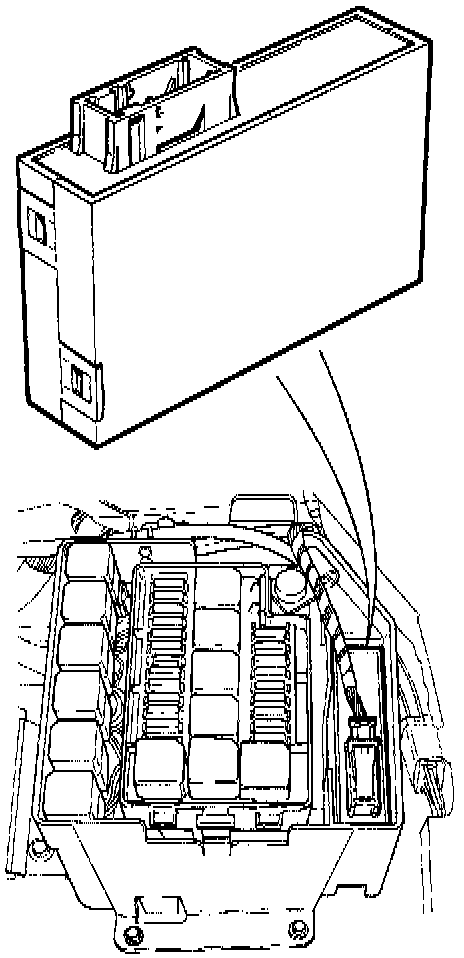

The lamp control module is installed in the electrical carrier in the trunk.
