Parking Light Bulb: Service and Repair

Removal
1. Open the engine compartment cover.







2. Remove the access cap from the closing panel.
Squeeze the lower two clips to release the cap.

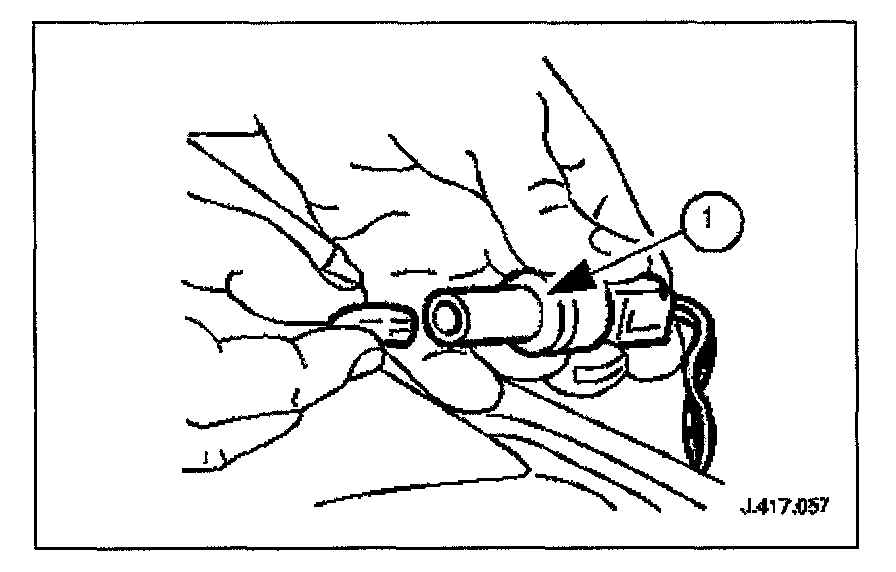

3. Remove the bulb from the vehicle (working through the access cap aperture).
Rotate the bulb holder (quarter-turn) and harness plug to remove the assembly from the lamp.
Pull the bulb from the bulb holder assembly.

Installation
1. Installation is the reverse of removal.
Check that the seal is in place before fitting the access cap to the closing panel.
