Rear Side Marker Lamp

Removal





1. Remove the marker lamp.

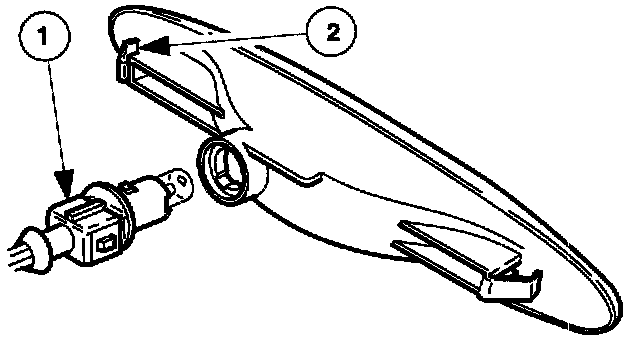

1. Working from the underside of the bumper, disconnect the connector from the rear of the lamp.
2. Compress one of the retaining spring clips and carefully remove the lamp.


Installation
1. Installation is the reverse of removal.
