Map Light Bulb: Service and Repair

Removal

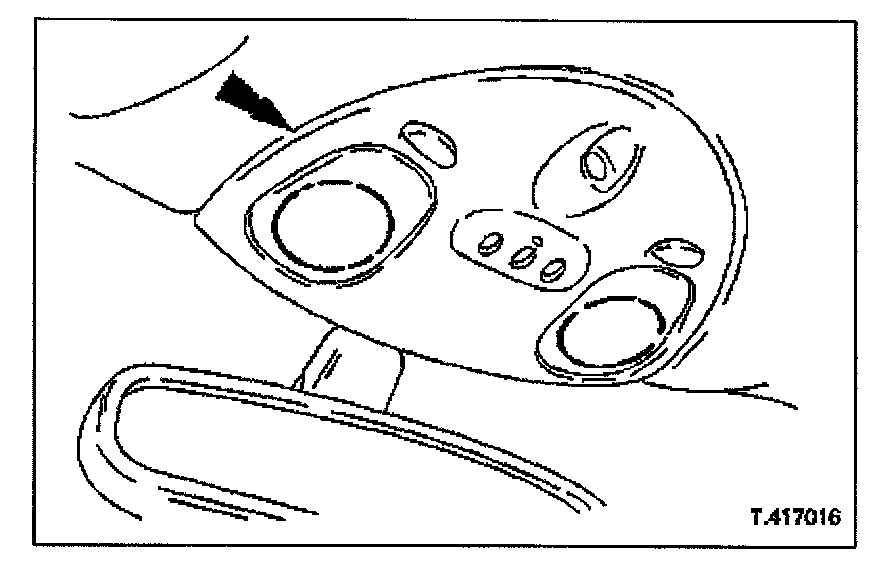

1. Remove the roof console. Service and Repair
- Very carefully prise the console from the roof trim panel.

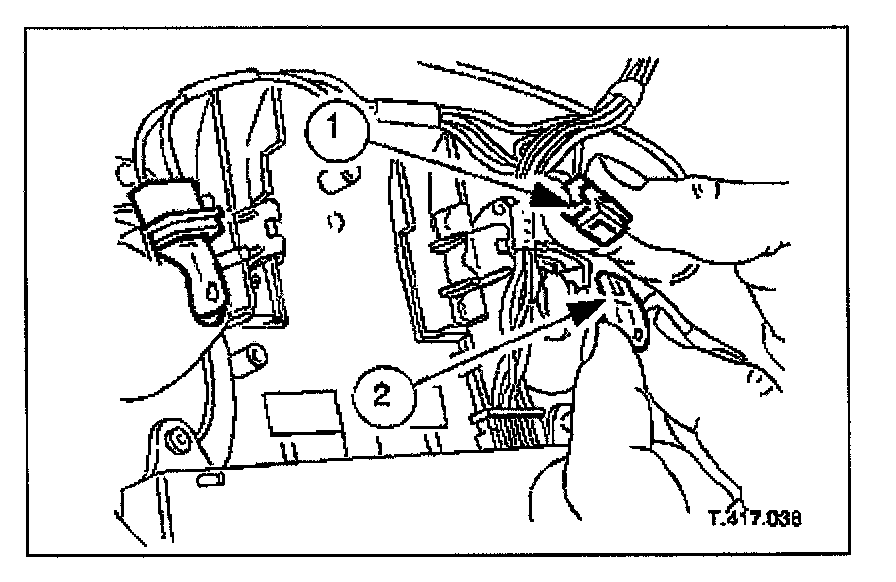

2. Remove the bulb from the console.
1. Remove the relevant bulb holder.
2. Remove the bulb.


Installation
1. Installation is the reverse of removal.
