Map Light: Description and Operation

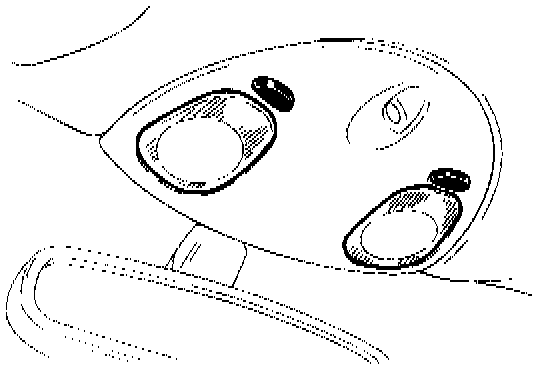

The two map lamps are installed in the roof console. The lamps function as map reading lamps and as courtesy lamps. Individual push switches control the map lamp function. The door switches and the Ignition switch control the courtesy lamp function.

Each lamp has a bulb holder with a 6 W bulb. The bulbs are accessed by removing the console.
