License Plate Lamp: Service and Repair

Removal
1. Open the luggage compartment lid.

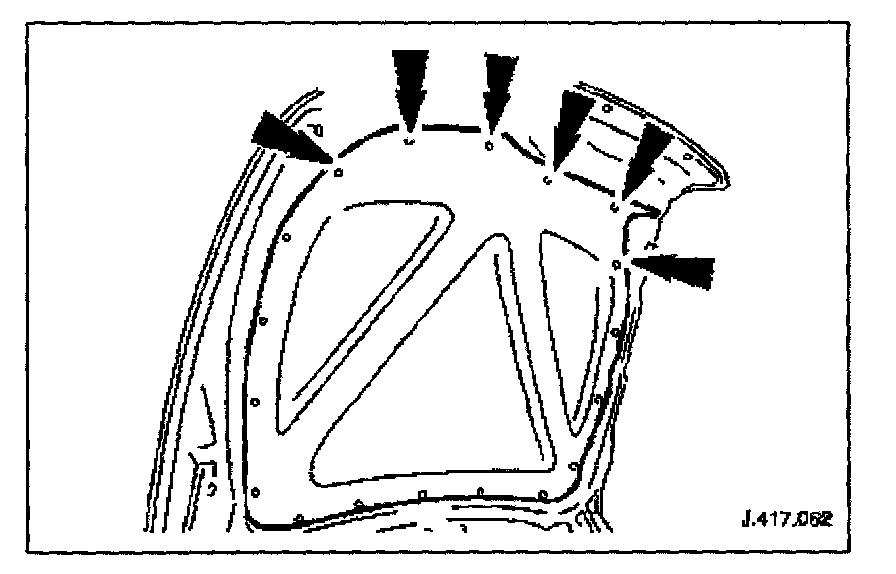

2. Remove the rearward fasteners (six, fir tree type) from the luggage compartment lid trim pad.
Reposition the trim pad for access.





3. Remove the lamp assembly.
1. Disconnect the multi-plugs.
2. Remove the four nuts which secure the lamp assembly.
3. Remove the lamp assembly.

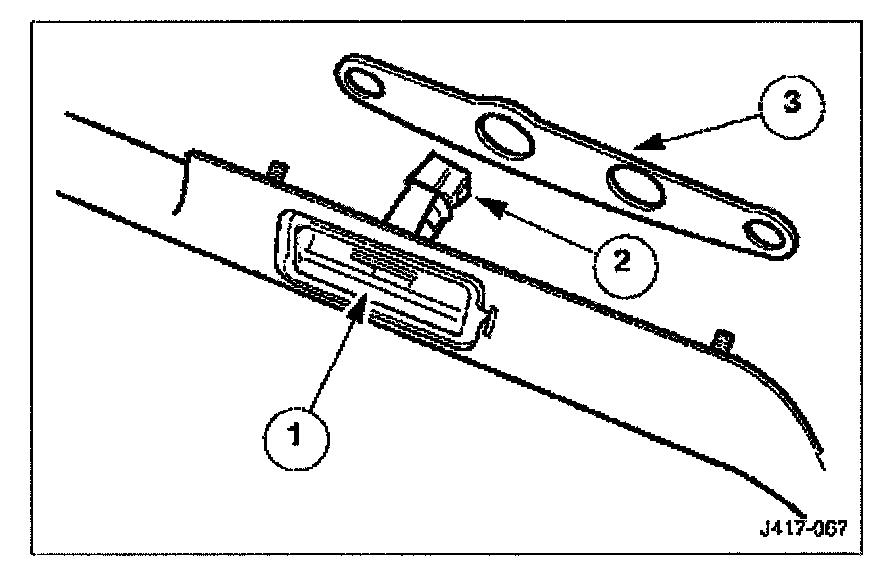

4. Remove the individual lamp components.
1. Remove the lamp lens.
2. Remove the bulb holder.
3. Remove and discard the lamp assembly gasket.


Installation
1. Installation is the reverse of removal.
