License Plate Lamp: Locations

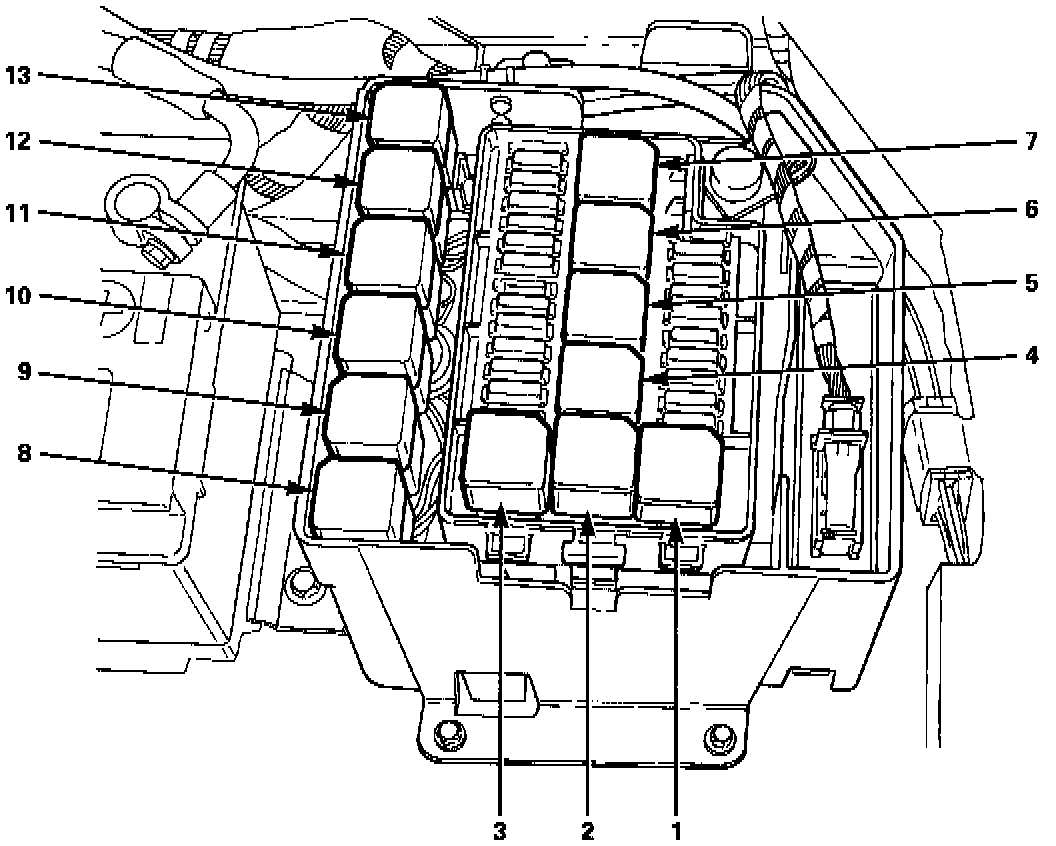

(Fig. 1) Relay Location:

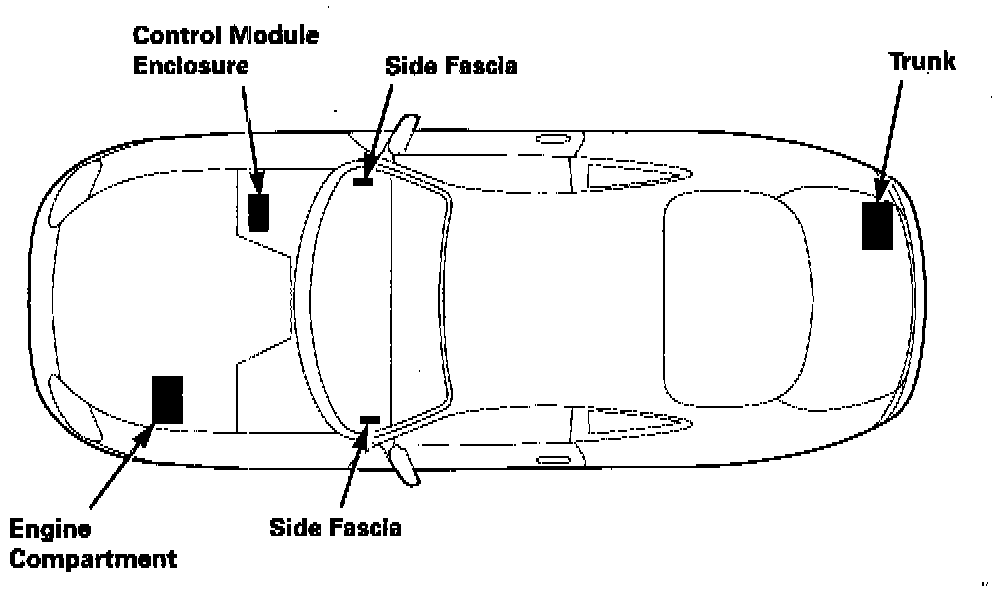

(Fig. 2) Relay / Fuse Block Locations:

The tail, license plate and rear marker lamp relay is located in the number 3 position (Fig. 1) of the Trunk Fuse Box (Fig. 2) and is brown in color.
