Hi-Beam Indicator Lamp: Service and Repair

Removal
1. Remove major gauge module. Procedures

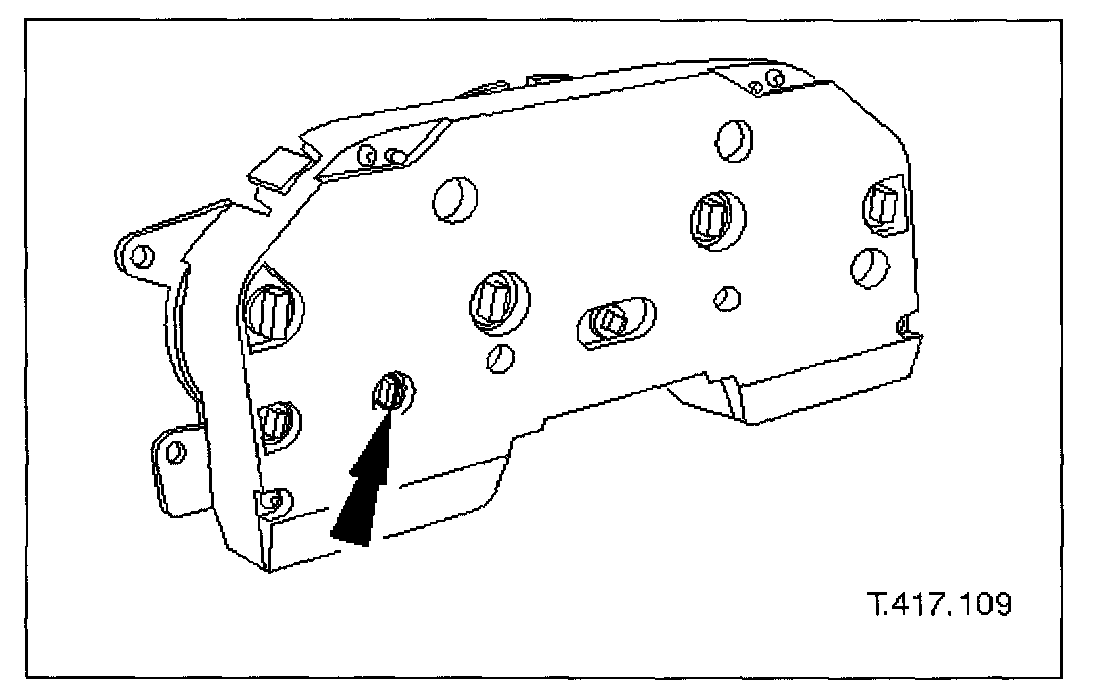

2. Position housing for access, rotate bulb holder 1/4 turn counter-clockwise, withdraw holder and remove bulb.


Installation
1. Install bulb in holder.
2. Install bulb holder in housing and rotate 1/4 turn clockwise to fully engage.
3. Install major gauge module.
