Headlamp Lens: Service and Repair

Removal
1. Remove headlamp assembly for access.

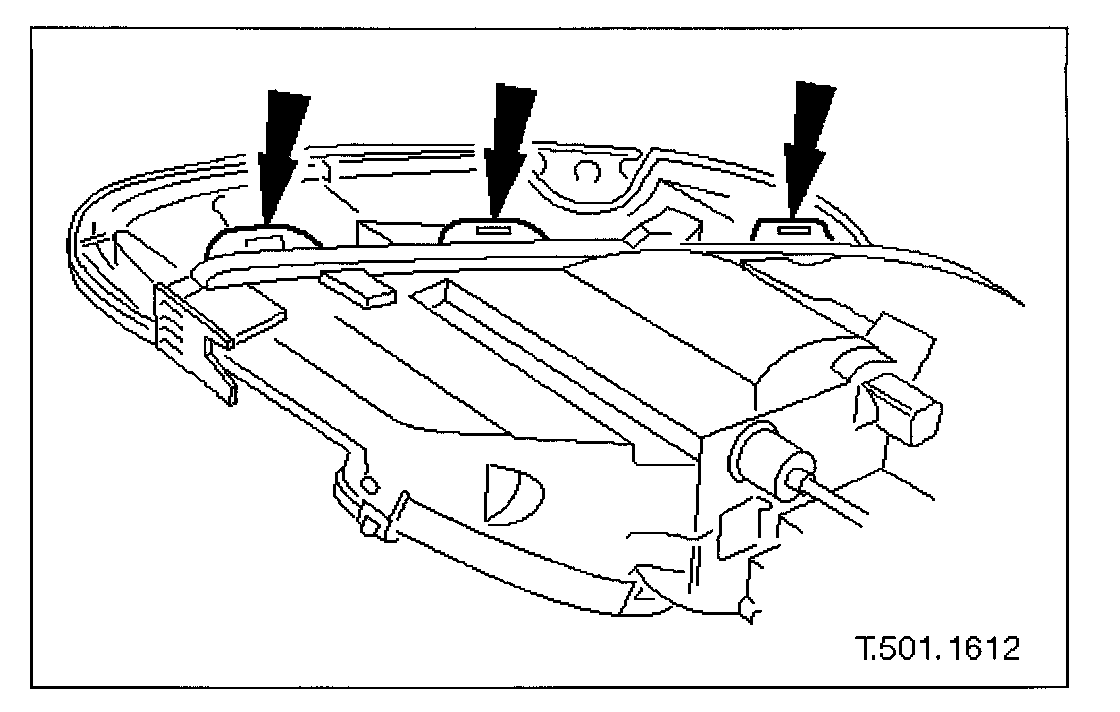

2. Release lens to headlamp assembly upper retaining tangs.

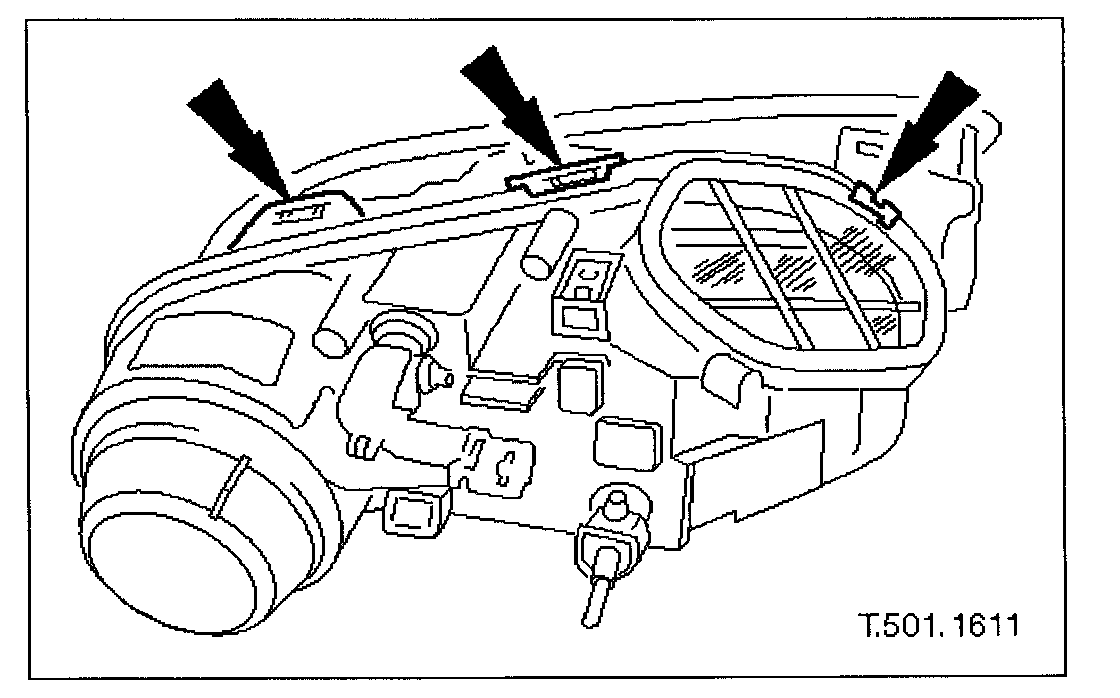

3. Release lens to headlamp assembly lower and side retaining tangs and remove lens from assembly.

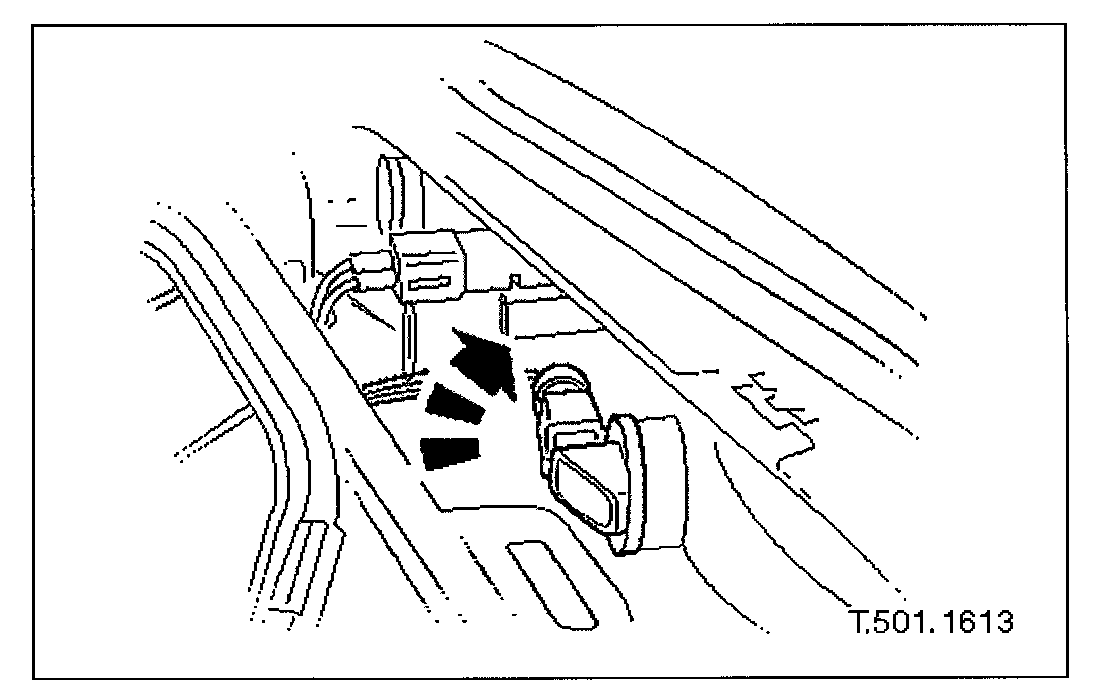

4. Rotate direction indicator bulb holder 1/4 turn clockwise and remove from headlamp lens.

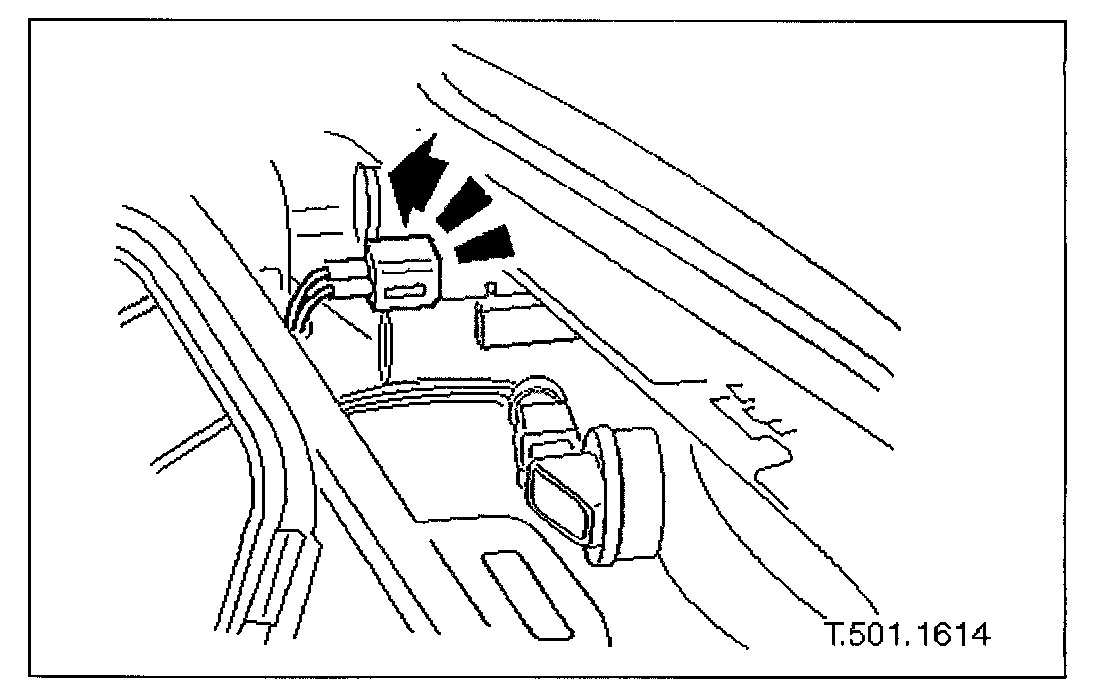

5. Rotate parking/side lamp bulb holder 1/4 turn counter-clockwise and remove from headlamp lens.

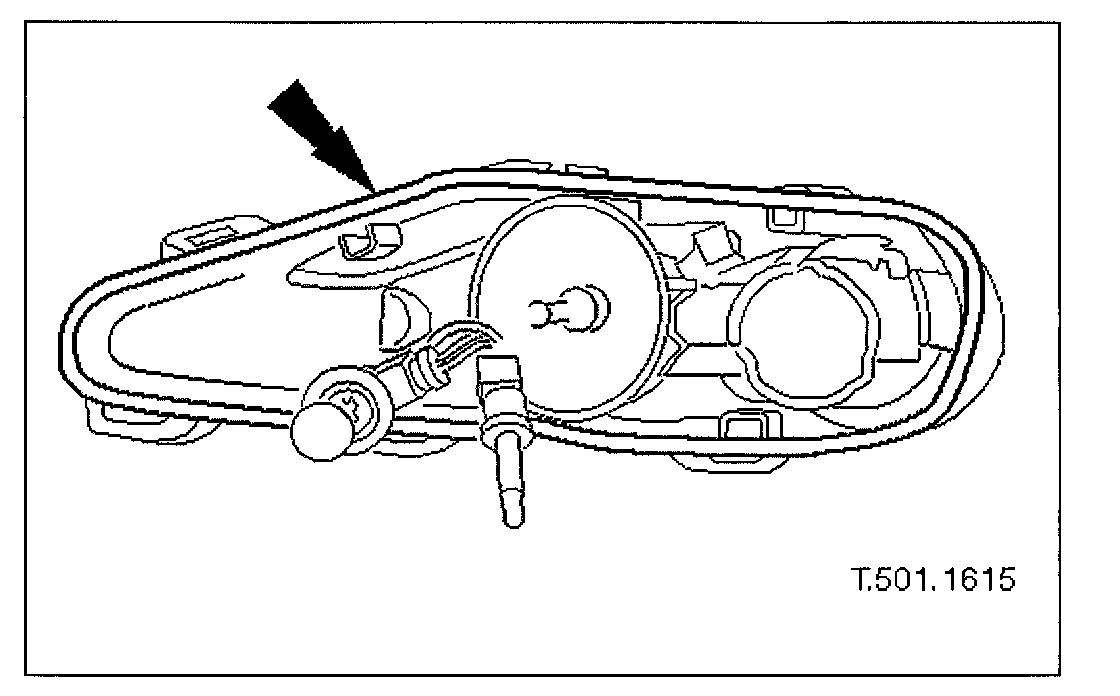

6. Remove and discard headlamp lens to headlamp assembly seal.


Installation
1. Install new lens seal to headlamp assembly.
2. Position lens on headlamp.
3. Install parking/side lamp bulb holder to headlamp lens.
4. Install direction indicator lamp bulb holder to headlamp lens.
5. Install lens to headlamp assembly ensuring that retaining tangs are correctly engaged.
6. Install headlamp assembly on vehicle.
7. Carry out headlamp beam alignment check and adjust as necessary.
