Bulb - Main Beam

Removal
1. Open the engine compartment cover.

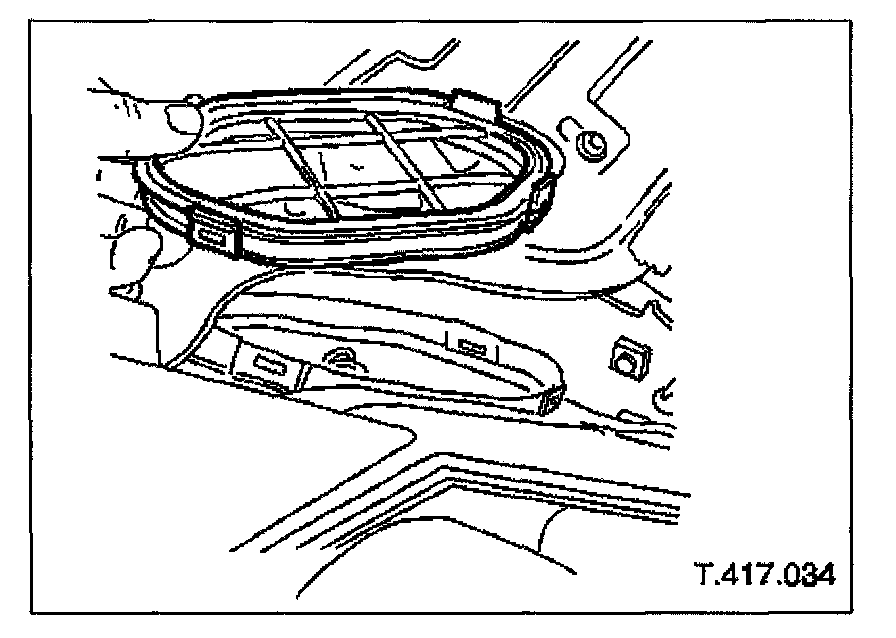

2. Remove the access cap from the closing panel.
Squeeze the lower two clips to release the cap.







3. CAUTION: The bulb will be damaged if touched by bare hands or contaminated with oil or grease. It is important to use clean gloves or cloth when handling a bulb. A contaminated bulb may be cleaned with methylated spirit before fitting.

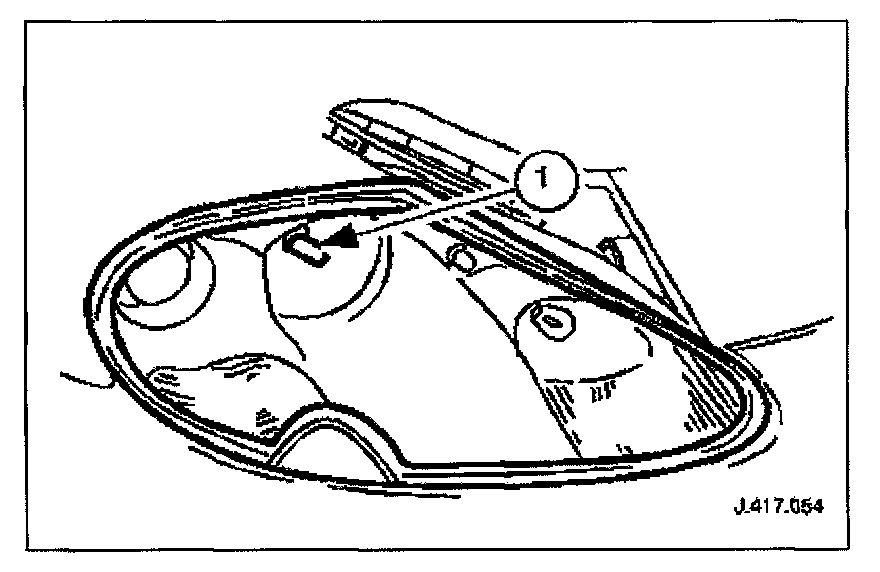

Remove the main beam bulb / bulb holder assembly from the vehicle (working through the access cap aperture).

Rotate the bulb holder anti-clockwise by approximately a quarter-turn to release it from the lamp.

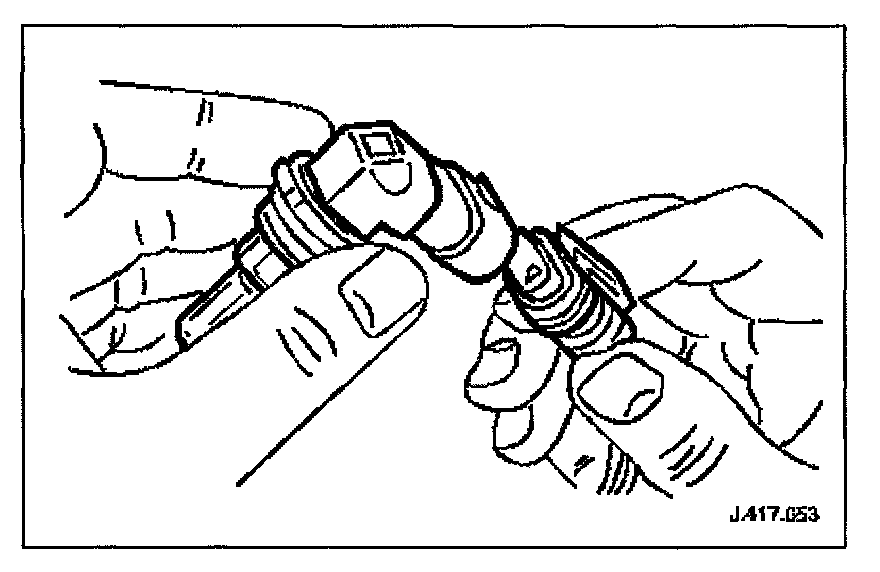

4. Remove the bulb / bulb holder assembly from the vehicle harness.


Installation
1. Installation is the reverse of removal.
Check that the new bulb is orientated correctly and that the locating lugs are aligned.
Check that the seal is in place before fitting the access cap to the closing panel.
