Bulb - Dip Beam

Removal
1. Turn the steering to full lock, as follows:
Right- hand fog lamp - Left-hand lock.
Left- hand fog lamp - Right-hand lock.





2. Remove the access panel from the wheel arch liner.
1. Release the center fastener which secures the wheel arch liner access panel.
2. Lift the lower retaining catch and disconnect the lower edge of the access panel from the wheel arch liner.
3. Remove the access panel.

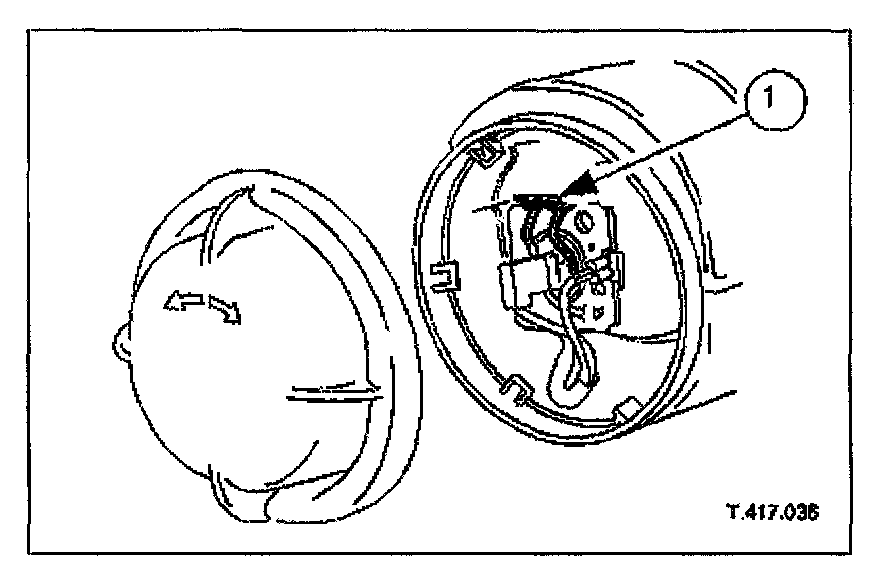

3. Remove the protection cap from the rear of the lamp.
Release the spring clip (1) and remove the bulb and harness plug from the lamp assembly.

4. CAUTION: The bulb will be damaged if touched by bare hands or contaminated with oil or grease. It is important to use clean gloves or cloth when handling a bulb. A contaminated bulb may be cleaned with methylated spirit before fitting.

Remove the bulb from the harness plug (working through the access panel aperture).
Remove the bulb from the harness plug.


Installation
1. Installation is the reverse of removal.
Return steering to straight ahead position.
