Fog/Driving Lamp: Service and Repair

Removal
1. Turn the steering to full lock, as follows:
Right- hand fog lamp - Left-hand lock.
Left- hand fog lamp - Right-hand lock. (Access is possible around the reservoir)

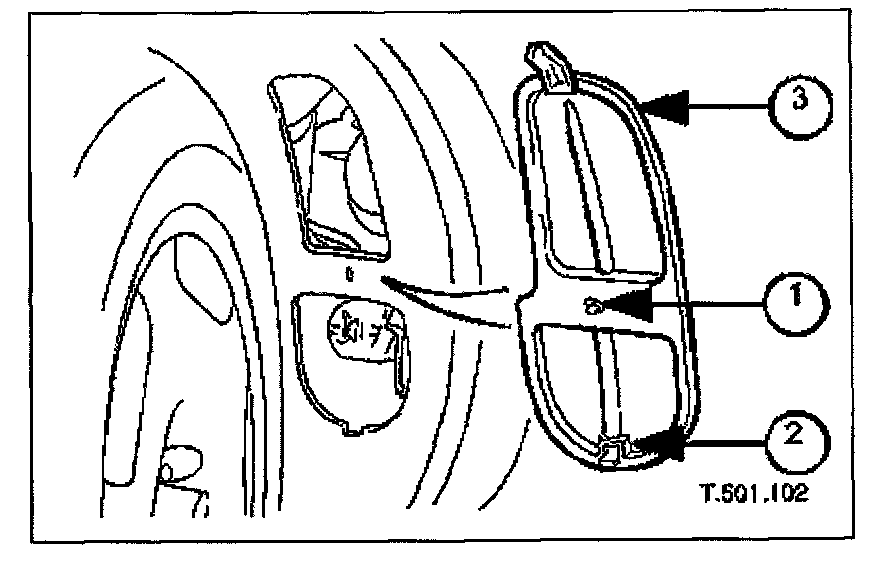

2. Remove the access panel from the wheel arch liner.
1. Release the center fastener which secures the wheel arch liner access panel.
2. Lift the lower retaining catch and disconnect the lower edge of the access panel from the wheel arch liner.
3. Remove the access panel.

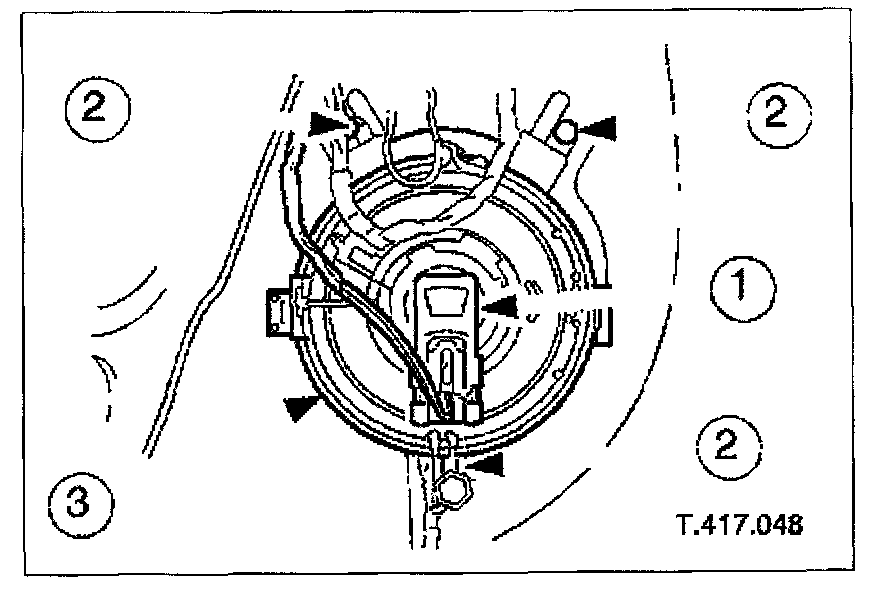

3. Remove the fog lamp from the vehicle (working through the access panel aperture).
1. Disconnect the electrical connector from the bulb holder.
2. Remove the three bolts which secure the lamp assembly.
3. Remove the lamp from the housing, rearwards through the access panel aperture.


Installation
1. Installation is the reverse of removal.
Return steering to straight ahead position.
