Fog/Driving Lamp: Description and Operation

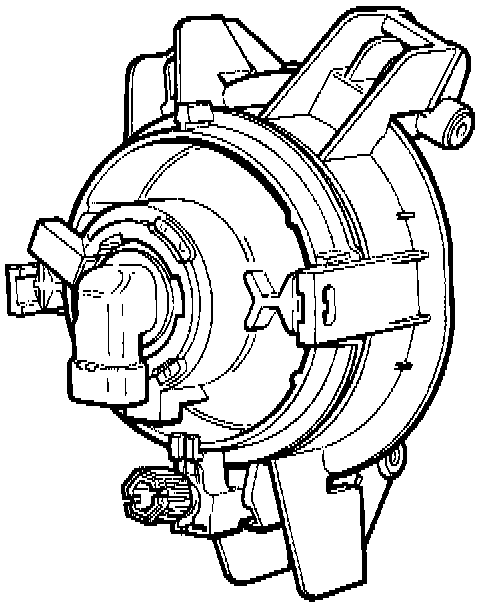

The front fog lamps are installed in recesses in the front bumper. Three screws secure each fog lamp. Due to the orientation of the securing holes, the lamps are not interchangeable. Each lamp has an adjuster for vertical alignment (only) and an H1 55 W bulb installed in a bulb holder. Access for adjustment and bulb replacement is through the panel in the wheel arch liner.
