Footwell Lamp

Removal

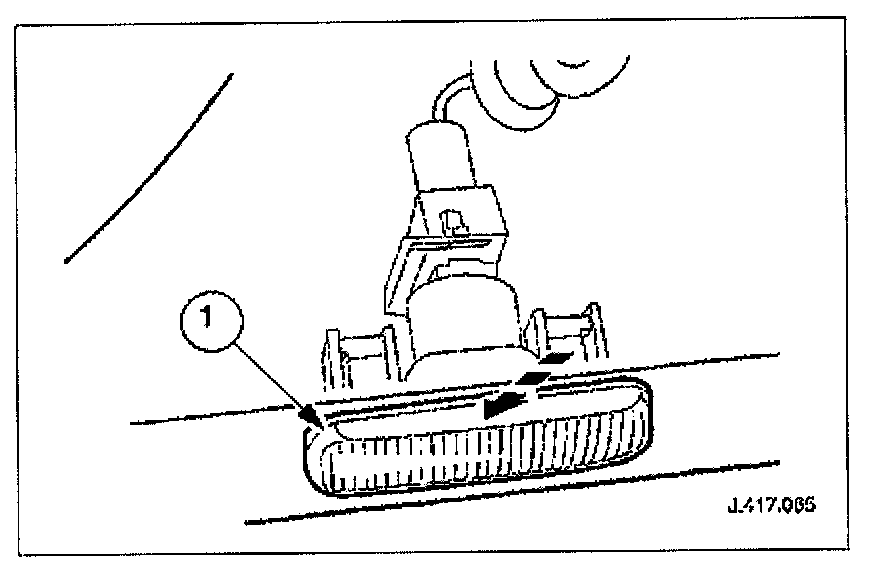

1. Remove the footwell Lamp.
Use a screwdriver with a wide flat blade to push the lamp assembly towards the front of the car.
This movement will release the rear spring clip which is adjacent to the screwdriver blade.
Release the front spring clip of the lamp by pulling the lamp rearwards. Remove the lamp from the aperture.
2. Turn the lamp through 90° to allow the connector to pass through the aperture, tilt it slightly and fully remove it.
3. Disconnect the harness connector and remove the lamp.
4. If required, remove the bulb holder and replace the bulb.

Installation
1. Installation is the reverse of removal. Install the new lamp so that the face marked 'REAR' is towards the rear of the vehicle; failure to do this will make the lamp very difficult to remove.
