Door Guard Lamp Lens and Bulb

Removal

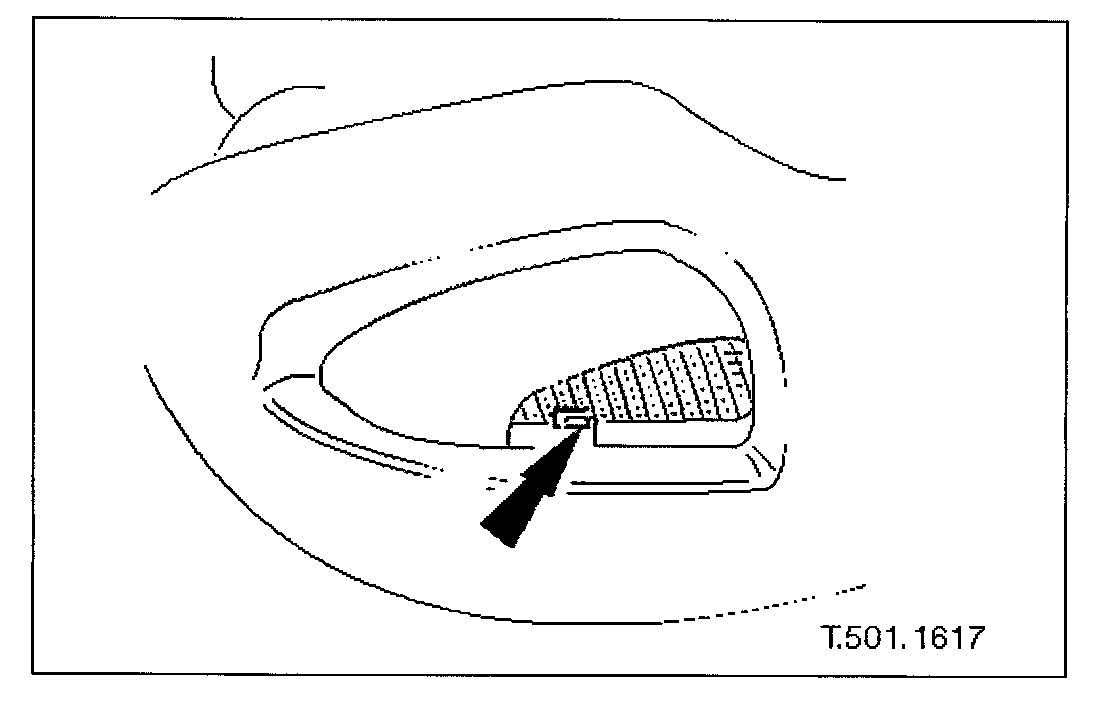

1. Using a small flat-bladed screwdriver, release guard lamp lens retaining tang and withdraw lens from door.
2. Rotate bulb 1/4 turn and remove bulb from guard lamp.

Installation
1. Install bulb in guard lamp and rotate 1/4 turn to engage.
2. Install lens on guard lamp, ensuring that securing tang is correctly engaged
