Minor Gauge Module

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair







2. Remove center veneer panel.
Using a thin plastic lever at base of center veneer panel, release four dowels from facia. Lower panel to release upper locating tongues.

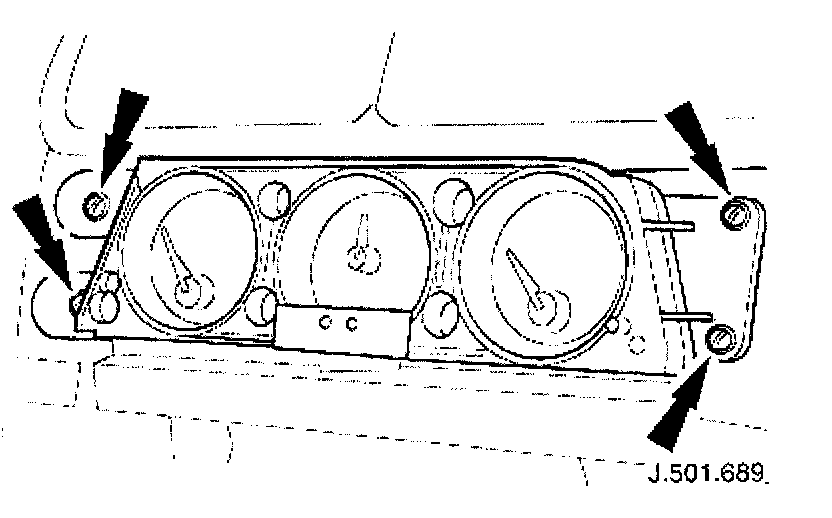

3. Remove the four gauge module screws.

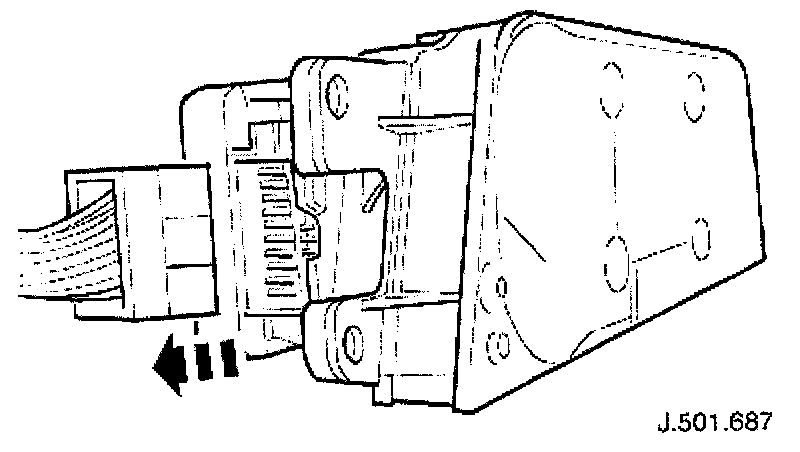

4. Position gauge module for access and disconnect harness connector.

Installation
1. Position gauge module at facia and connect harness connector.
2. Fully seat gauge module and install four screws.
3. Install center veneer panel, ensuring dowels are fully seated.
4. Perform the Battery Reconnection Procedure Service and Repair and install battery cover.
