Minor Gauge Module

Removal

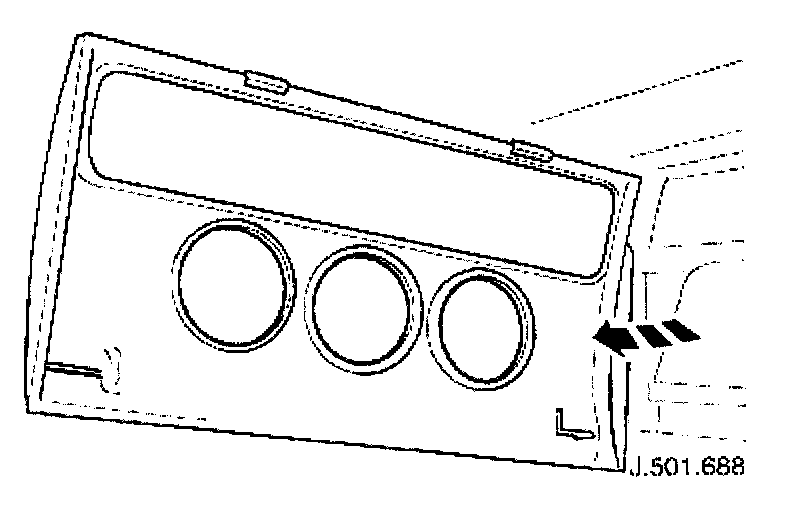

1. Remove center veneer panel.

Using a thin plastic lever at base of center veneer panel, release four dowels from facia.
Lower panel to release upper locating tongues.

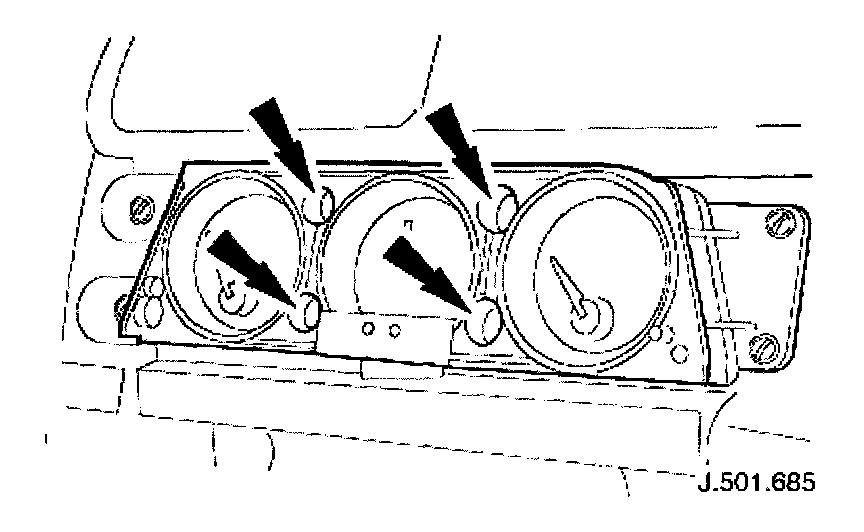

2. Remove the four gauge module lens assembly screws.

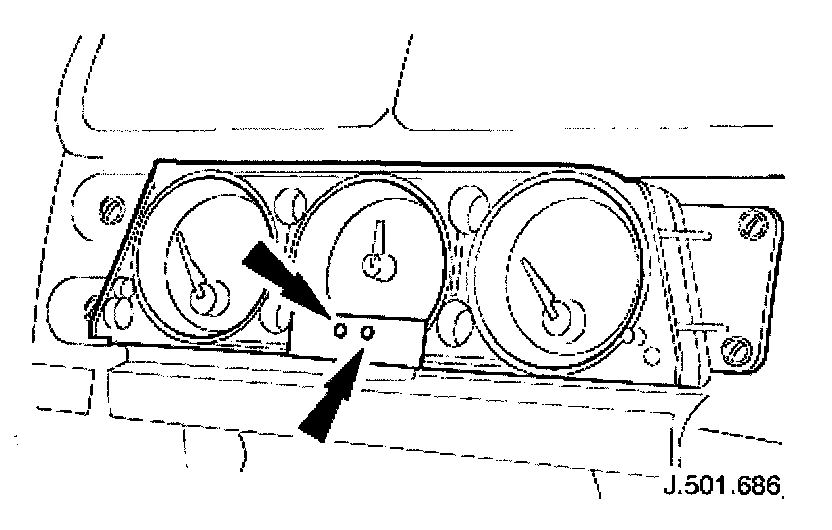

3. Withdraw lens assembly from gauge module and remove clock setting stalks.

Installation
1. Install clock setting stalks in lens assembly.
2. Position lens assembly on gauge module and install securing screws.
3. Install center veneer panel, ensuring dowels are fully seated.
