Minor Gauge Module Bulb

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair





2. Remove center veneer panel.
Using a thin plastic lever at base of center veneer panel, release four dowels from facia.
Lower panel to release upper locating tongues.
3. Remove minor gauge module. Procedures

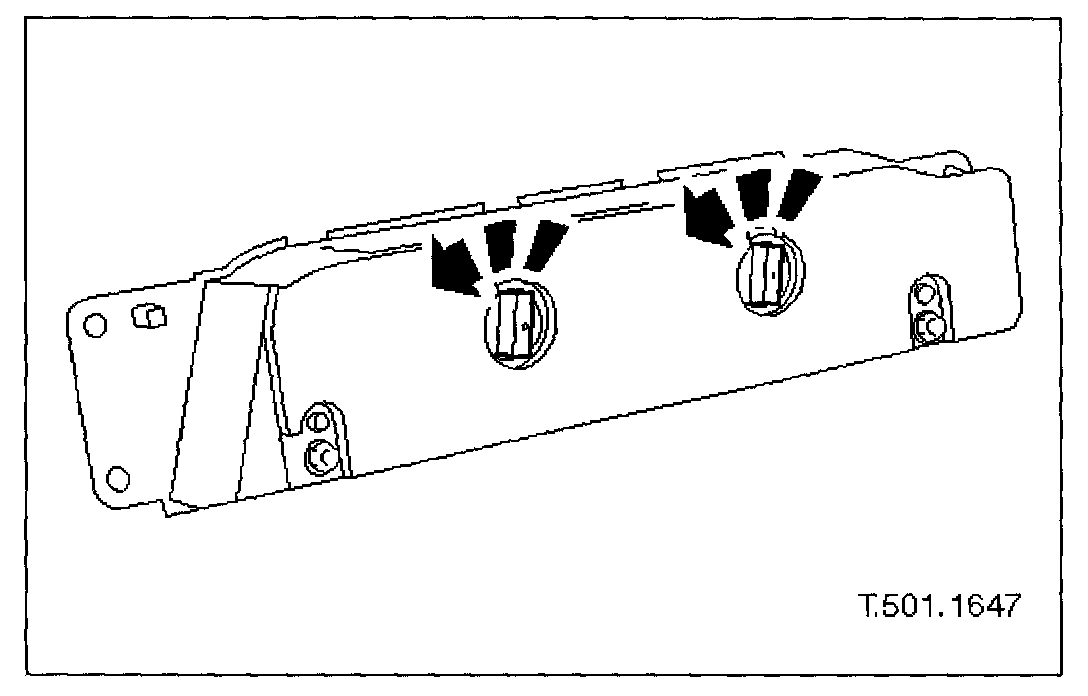

4. Rotate appropriate bulb holder 1/4 turn counter-clockwise, withdraw holder and remove bulb.


Installation
1. Install bulb in holder.
2. Install bulb and holder in module and rotate 1/4 turn clockwise to fully engage.
3. Install minor gauge module.
4. Install fascia center veneer panel.
5. Connect ground cable to battery terminal and install battery cover. See Battery Reconnection Procedure. Service and Repair
