System Pressure Fault Classification

System Pressure Fault Classification

NOTE: If erratic or unusual gauge movements occur, check the equipment against a known (calibrated) manifold gauge set.

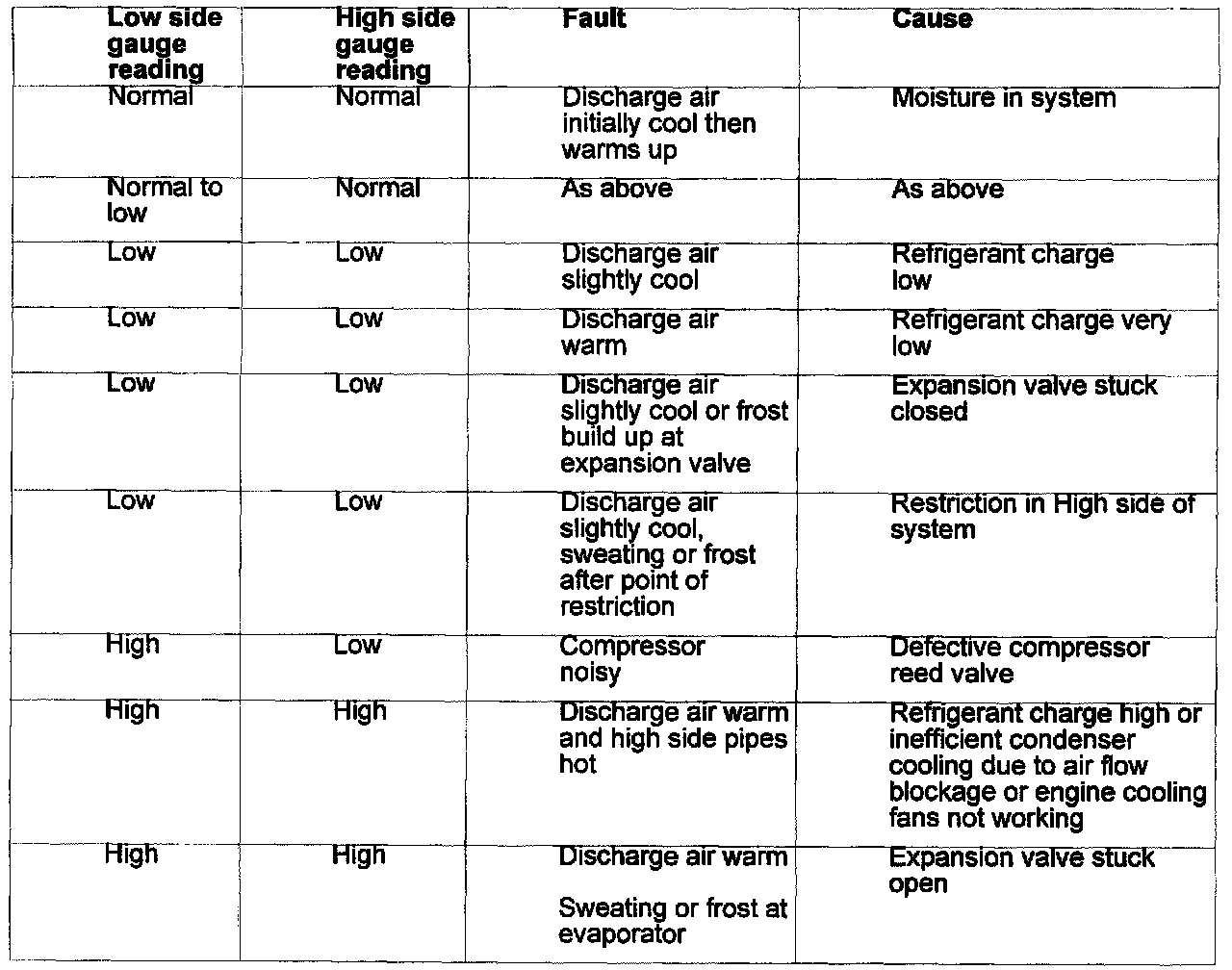

This table should be used in conjunction with the graphical representations of 'High side' pressure/ambient temperature and 'Low side' pressure/evaporator temperature. Stabilizing the System
