Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor

Removal
1. Remove heater matrix for access. Service and Repair

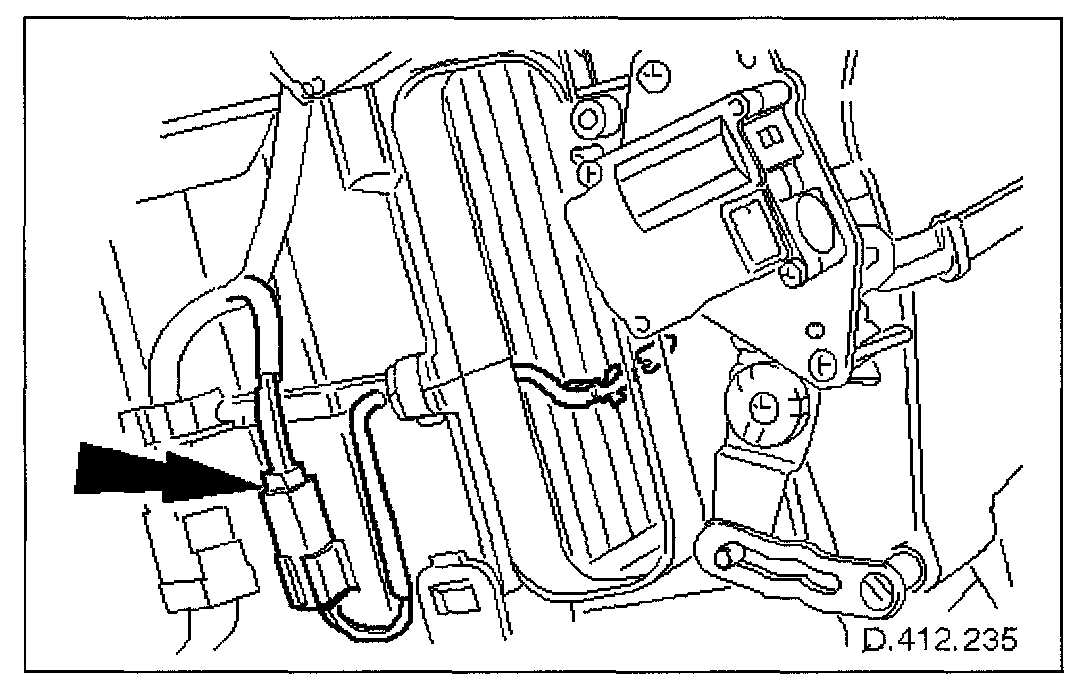

2. Detach sensor connector from heater/cooler assembly.
Disconnect connector.

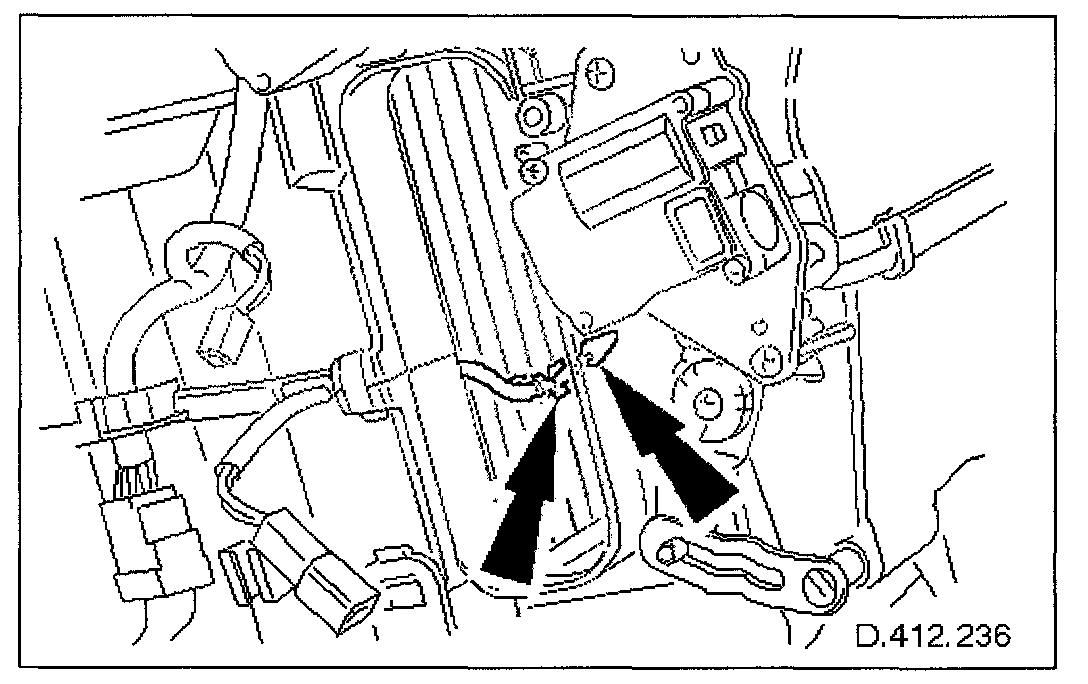

3. Detach clip and sensor from evaporator.
Remove clip.

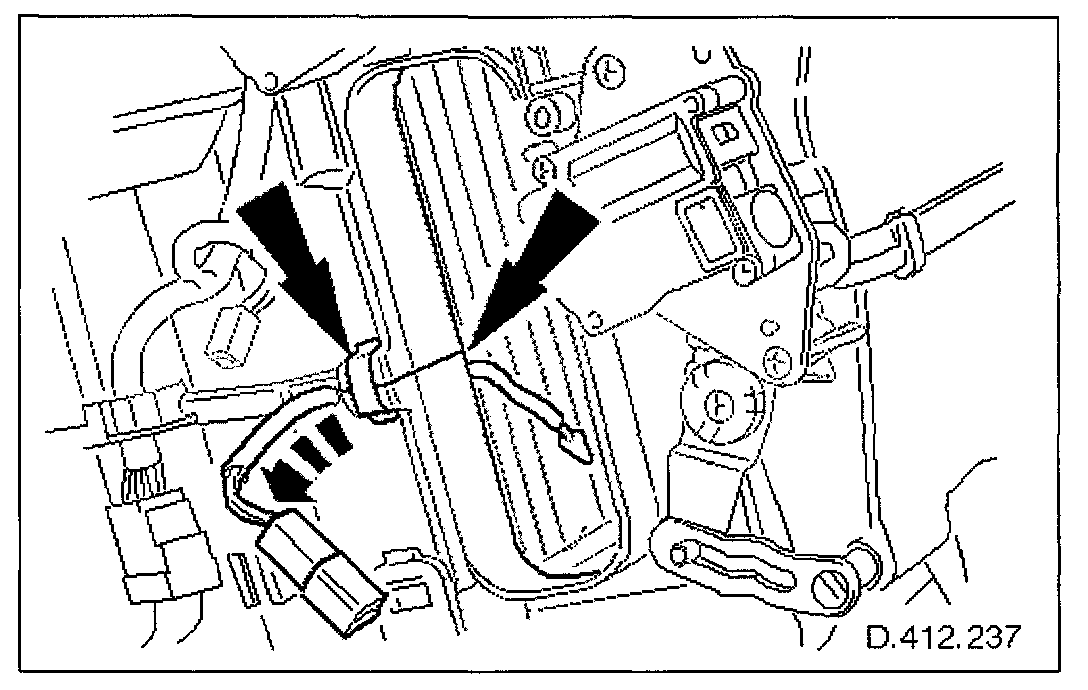

4. Remove sensor from heater/cooler assembly.
Remove clip.
Lever case apart sufficient enough to withdraw sensor through aperture.


Installation
1. Installation is a reversal of the removal procedure.
