Home >> Jaguar >> 2000 >> XKR Convertible (X100) V8-4.0L SC (AJ27) >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Diagrams

Housing Assembly HVAC: Diagrams

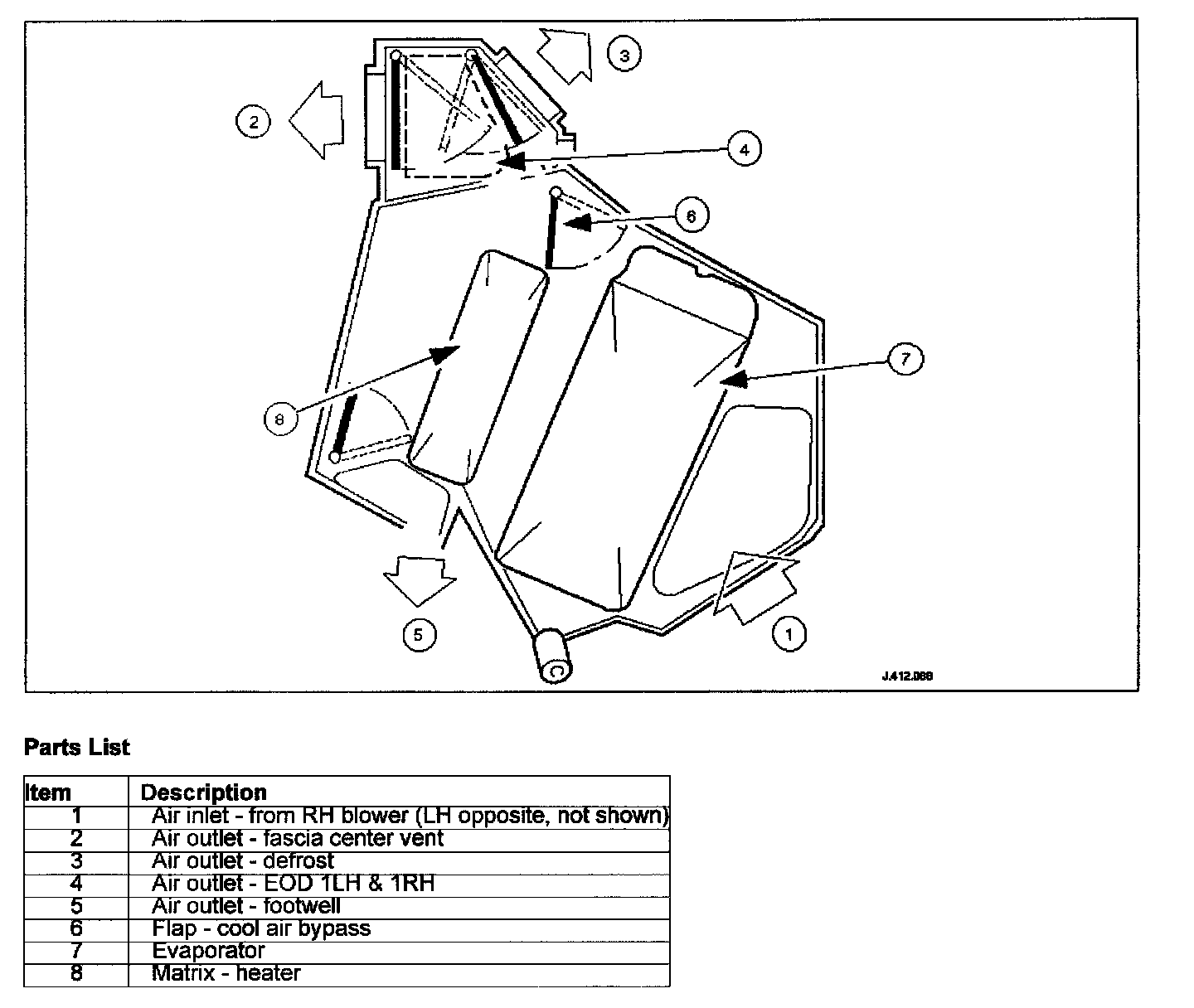

Internal Components and Air Flow:
