Introduction

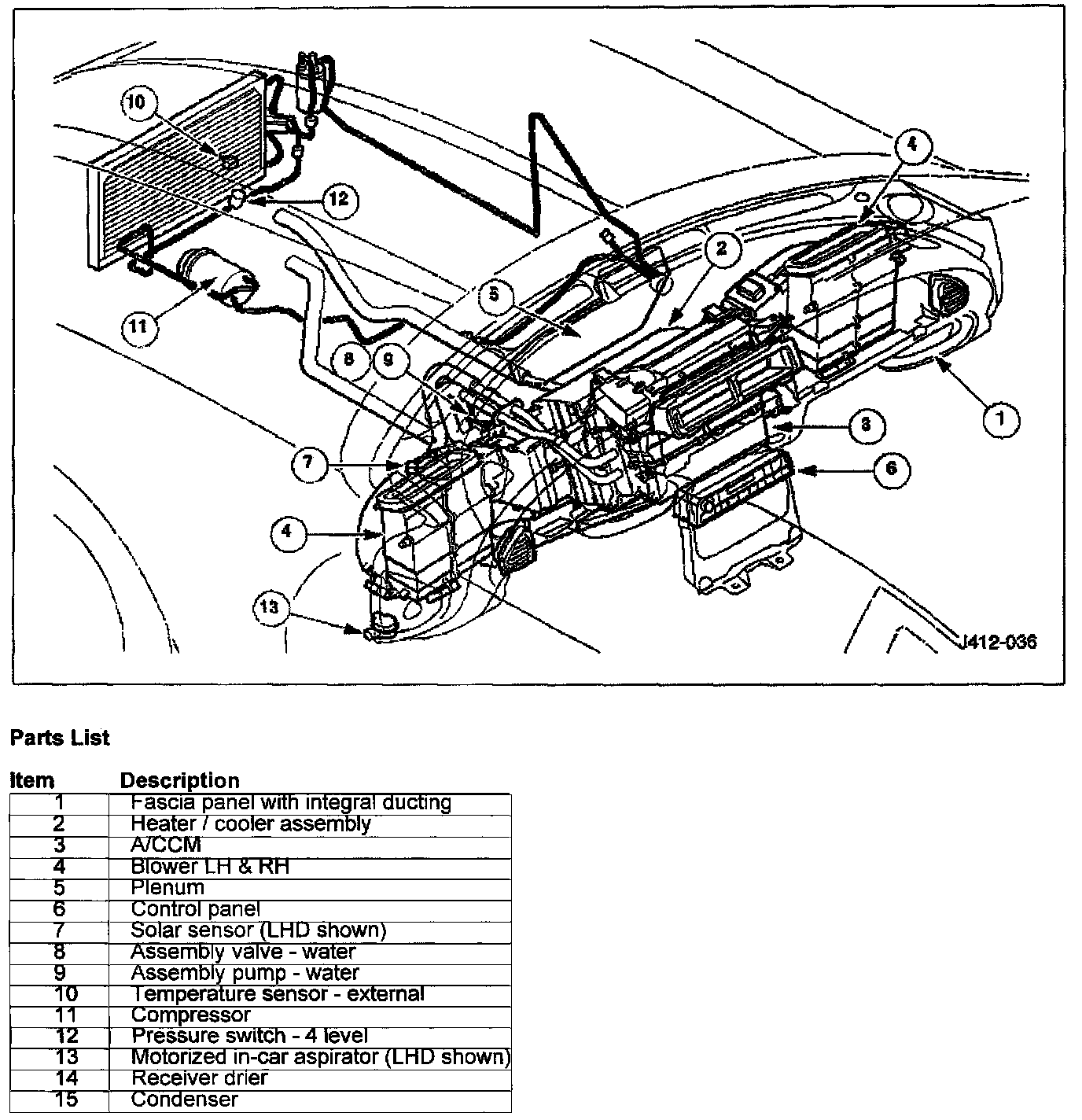

Component Location:

The climate control system features fully automatic control of temperature, blower speed (airflow) and air distribution to maintain optimum comfort under most driving conditions.

Manual controls are provided to allow the operator to over-ride automatic operation.

System Features
Twin blower assemblies
Center mounted evaporator, heater and air distribution unit
Electric solenoid water valve controlled heating
Electric water pump assembly
Servo motor driven air distribution flaps
Temperature differential control between foot and face outlets
Dedicated side glass defrost/demist vents
External temperature sensor
Motorized in-car aspirator
Solar sensor

Electronic Control Panel
Liquid Crystal Display (LCD)
Digital temperature display
Manual fan speed level
External temperature display
Celsius/Fahrenheit selection
Heated windshield switch (where fitted)
Heated backlight switch
Defrost switch
Manual airflow distribution overrides (4)
Access to self diagnostic system and error codes

Sensors
External ambient temperature sensor
Motorized in-car aspirator
Heater matrix temperature sensor
Evaporator temperature sensor
Solar sensor

These sensors feedback information to the Air Conditioning Control Module (A/CCM) which automatically adjusts air temperature, airflow volume and distribution from the air conditioning unit to maintain a stable passenger compartment average temperature under changing weather conditions.
