Air Intake and Distribution

General Description

Outside air enters the plenum via two inlets in the lower finisher at the base of the windshield.

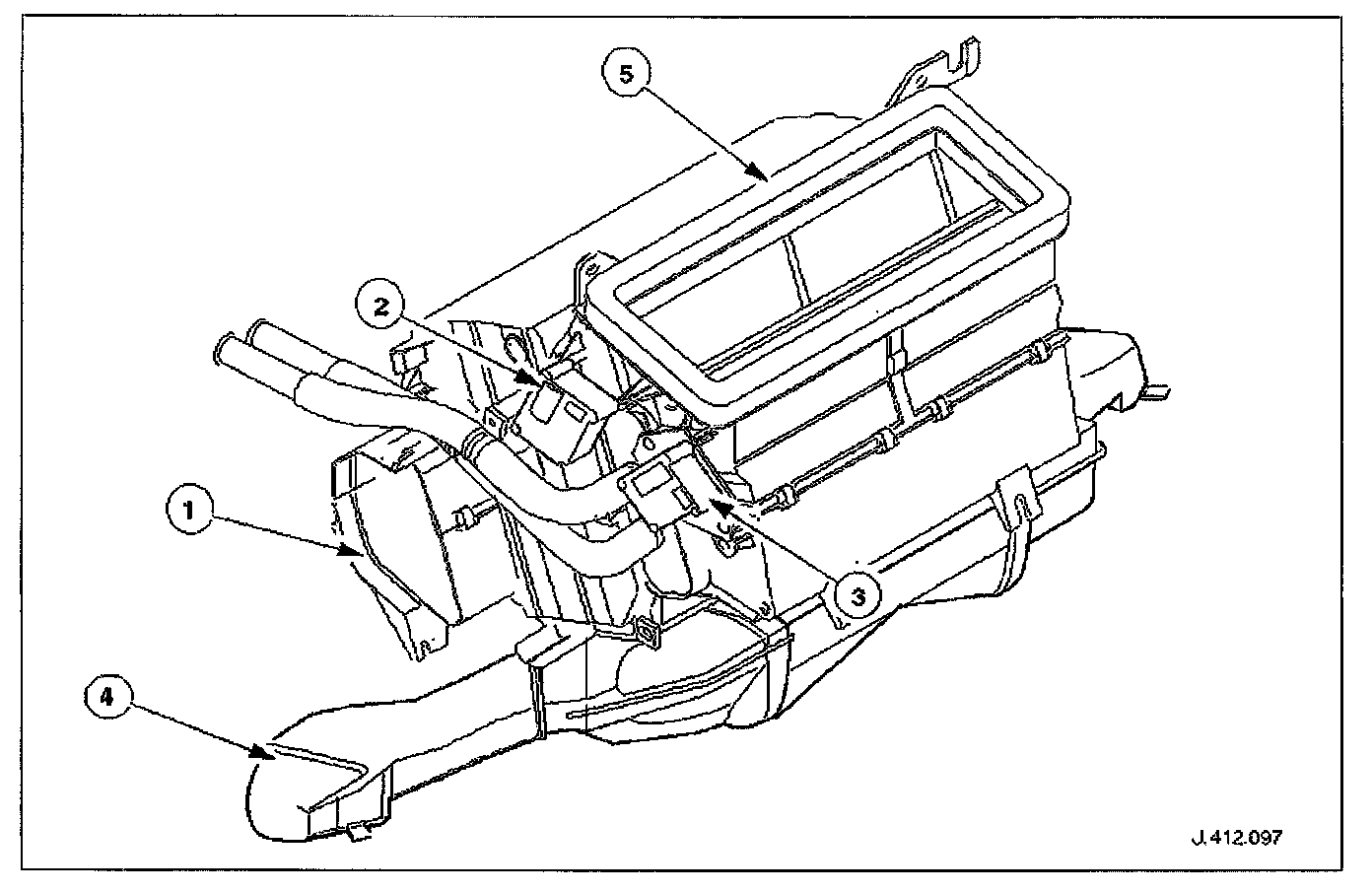

If the air conditioning system is operating in FRESH mode (not recirculation mode), then air is drawn through an air particle filter (where fitted) and into the air conditioning unit via the blower interconnecting ducts in the LH and RH blower assemblies. Air is cooled and dehumidified as it passes through the evaporator and is then 'reheated' to the required temperature as it passes through the heater matrix.

In RECIRCULATION mode, the air in the passenger compartment is drawn into the air conditioning unit via the recirculation air inlets on the blower assemblies.

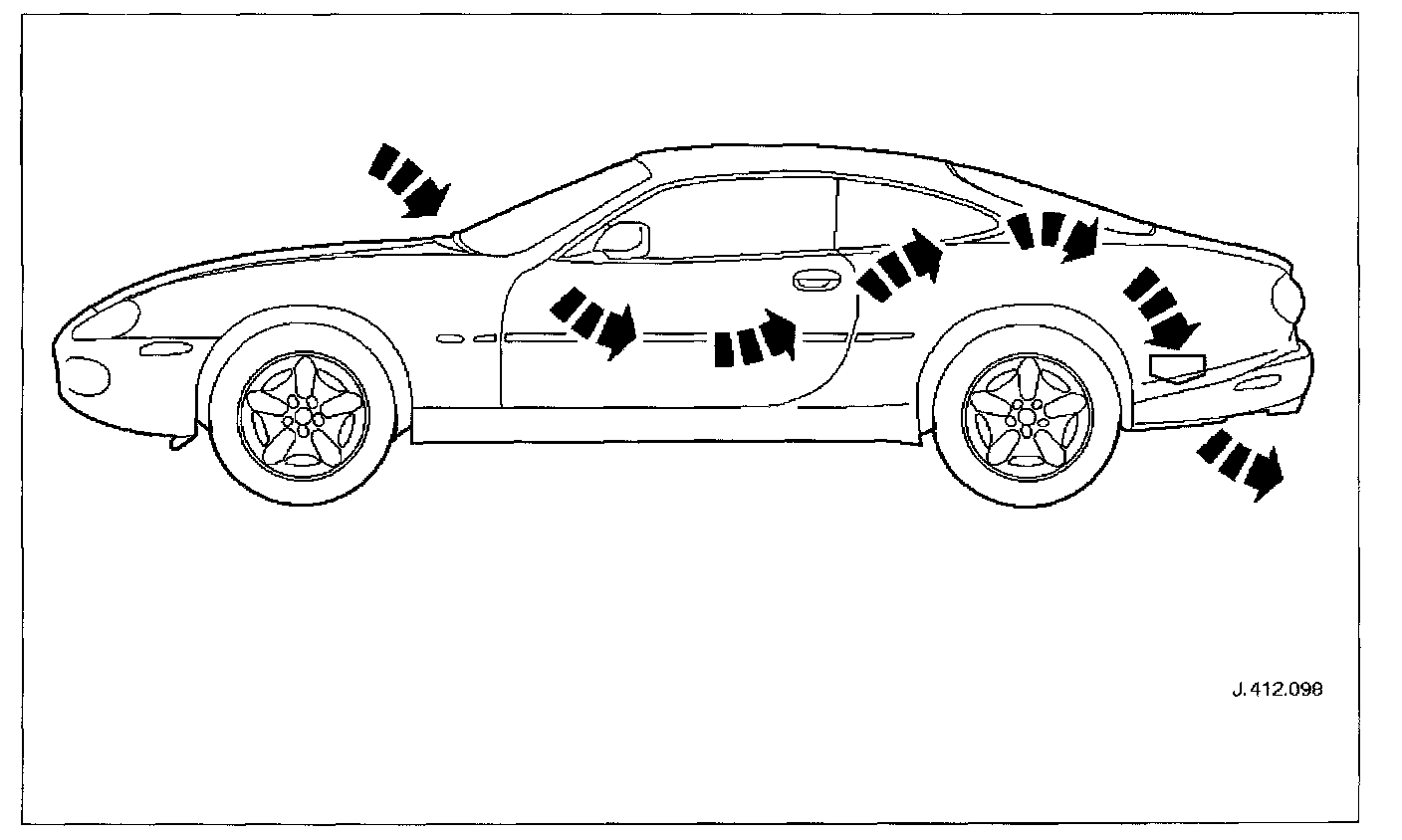

In FRESH mode, air flows from the cabin into the trunk via extraction slots in the rear parcel shelf at the base of the backlight on the Coupe and the hood containment panel on Convertible. The air is exhausted from the vehicle through extraction vent assemblies (incorporating one way flaps) whose outlets are above the rear mufflers.







Air Distribution Modes

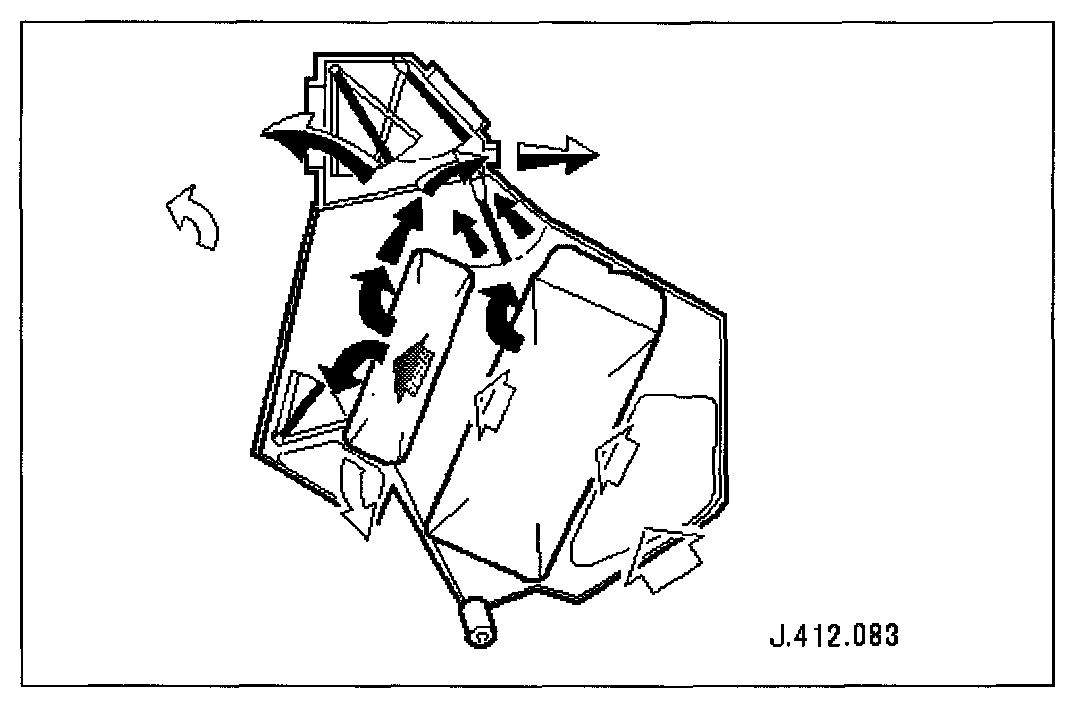

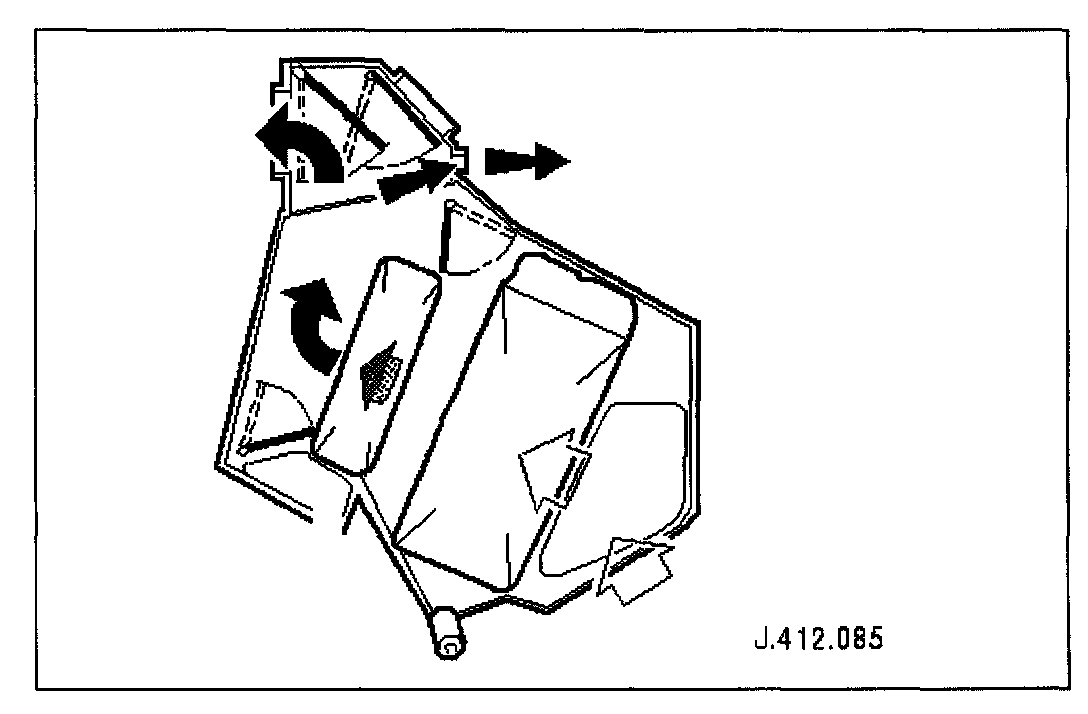

Bi - Level Mode. Minimum Temperature Differential.:

Bi - Level Mode. Minimum Temperature Differential.:

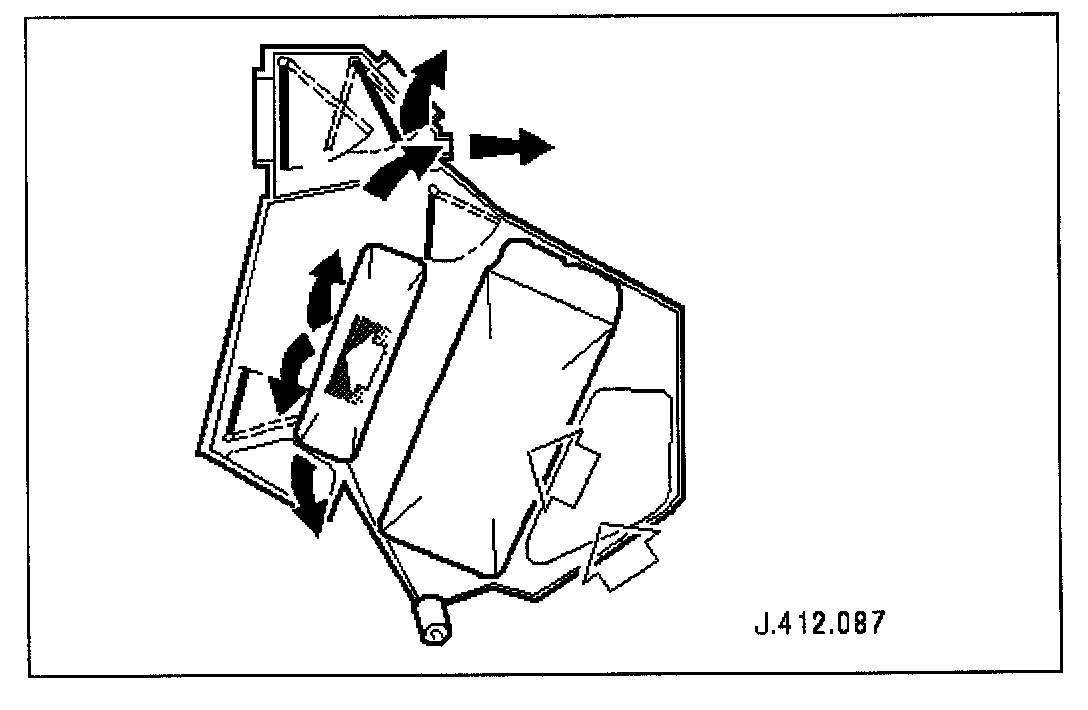

Foot/defrost mode:

Face mode:

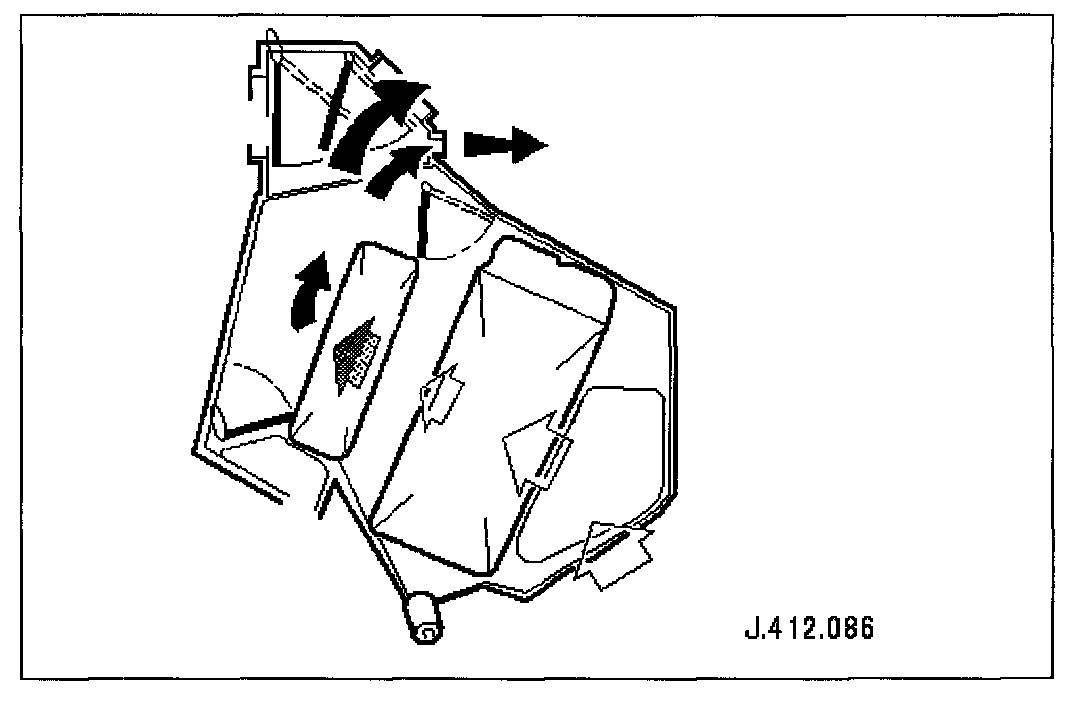

Defrost Mode.:

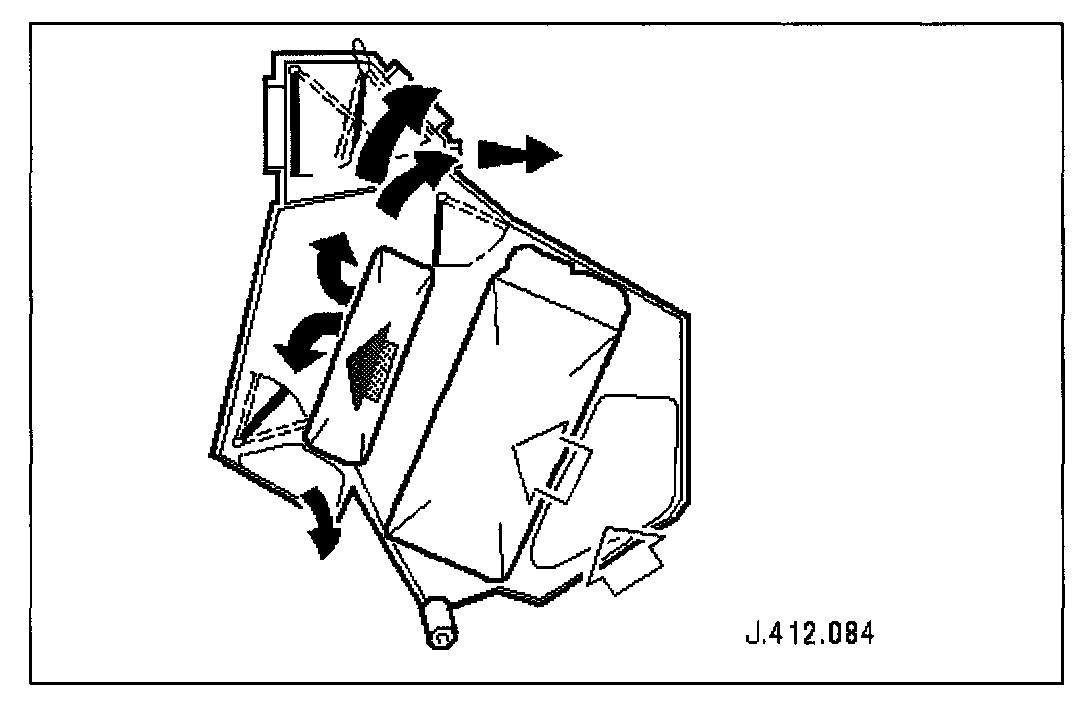

Foot mode (with automatic air bleed to the windshield):

The air particle filter system (where fitted) is located in the 'wet' plenum below the windshield finisher.

The filter element is retained by clips which are moulded onto the filter housing. Please note that the filter must be fitted with the light, flocked surface, towards the engine.

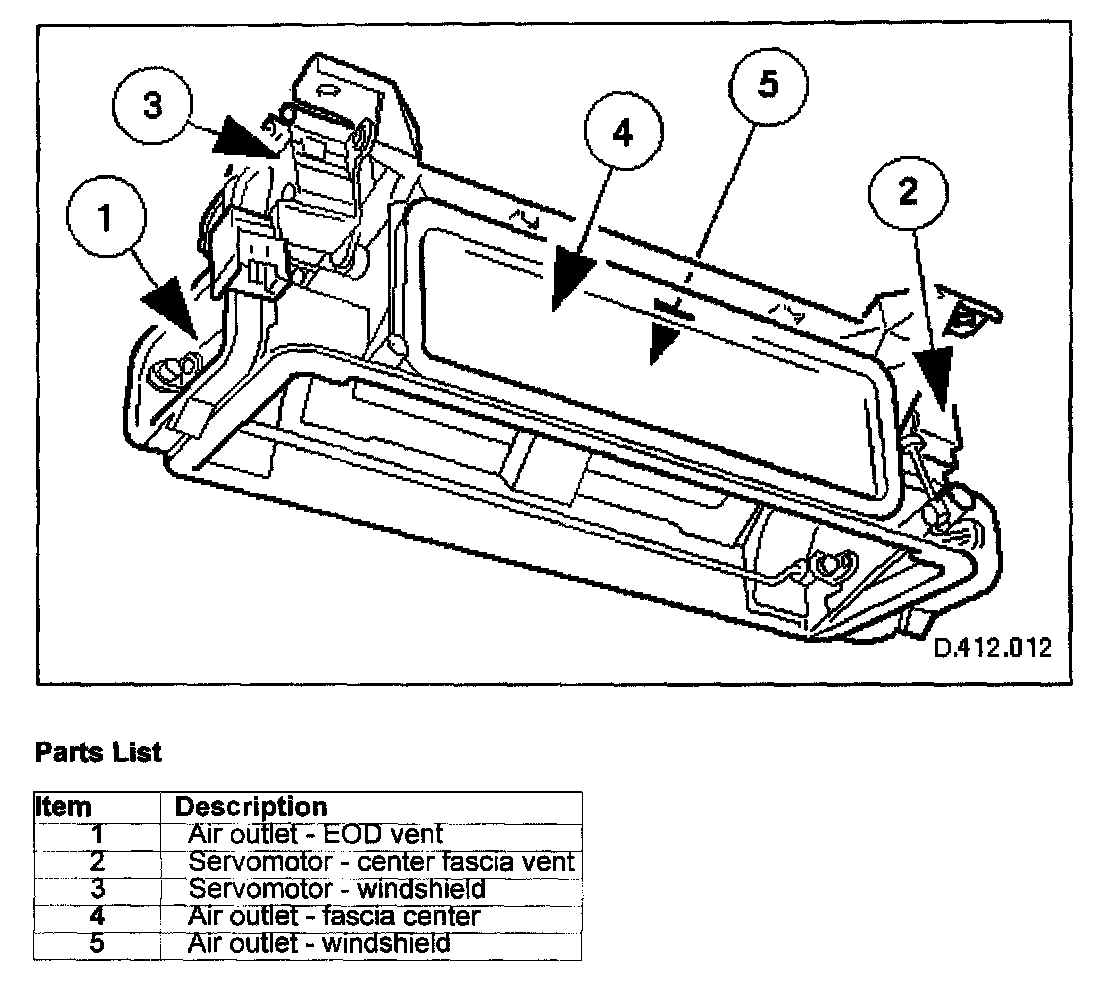

The upper air distribution box ADB, is fixed to the defrost duct and facia assembly, and seals by contact pressure to the outlet (top) of the air conditioning unit. The ADB incorporates two servo motor operated flaps which regulate airflow to:

Windshield and door drop glass
Fascia center and end of dash (EOD) vents

Air is ducted from the ADB to the fascia air outlet vents. The center vent duct incorporates a baffle plate which balances the volume of airflow between the center and EOD vents.

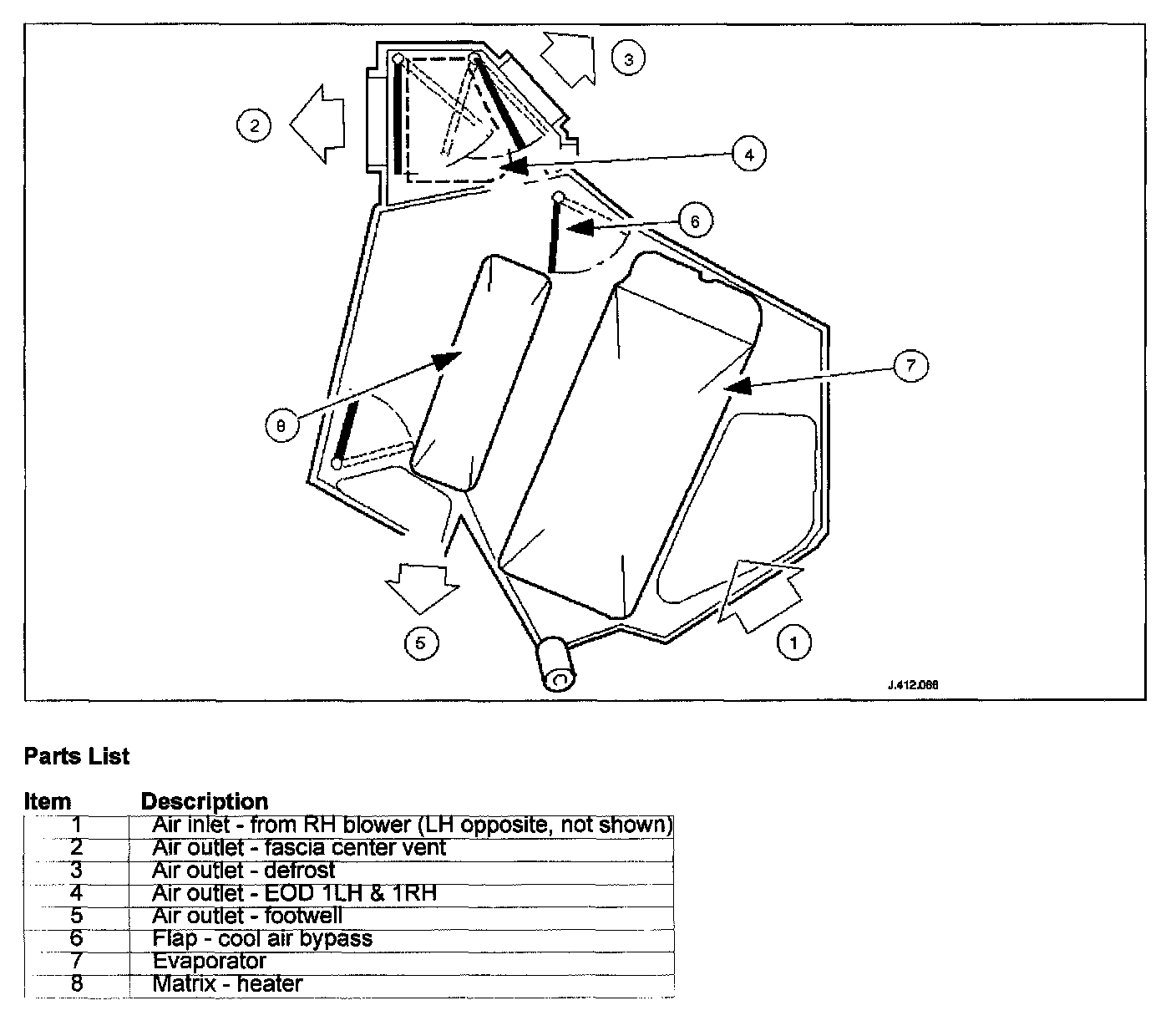

Internal Components And Air Flow:
