XKR Convertible (X100) V8-4.0L SC (AJ27)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Description and Operation
>>
Control Panel Communication Inputs / Outputs
Control Panel Communication Inputs / Outputs
Control Panel Communication Inputs / Outputs
The control panel provides operator interface with the climate control system.

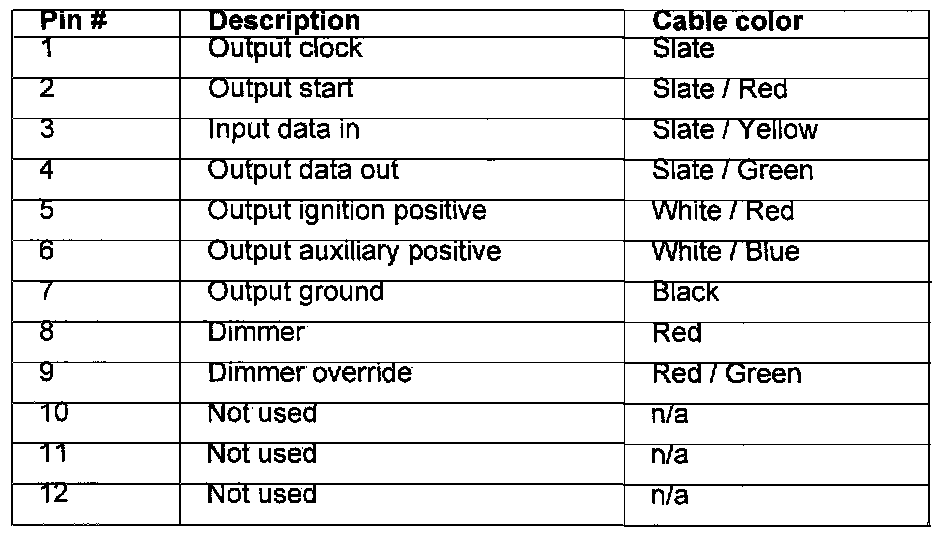

Control Panel Inputs/Outputs:
