Cabin Air Filter / Purifier: Service and Repair

Particle Filter

Removal
1. Install covers on front fenders.
2. Remove windshield wiper arms and blades. Refer to Wiper and Washer Systems. Wiper Arm
3. Remove plenum cover for access. Service and Repair

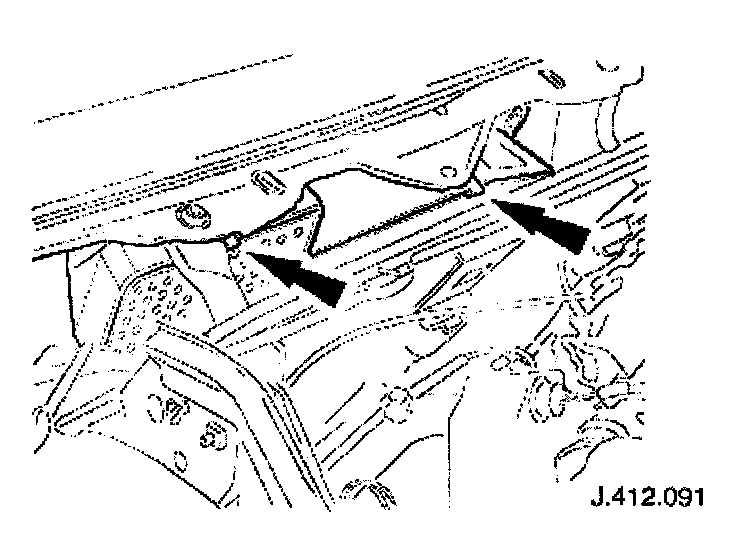

4. Release two tangs securing the top of the filter element and tilt the top of the element forward.

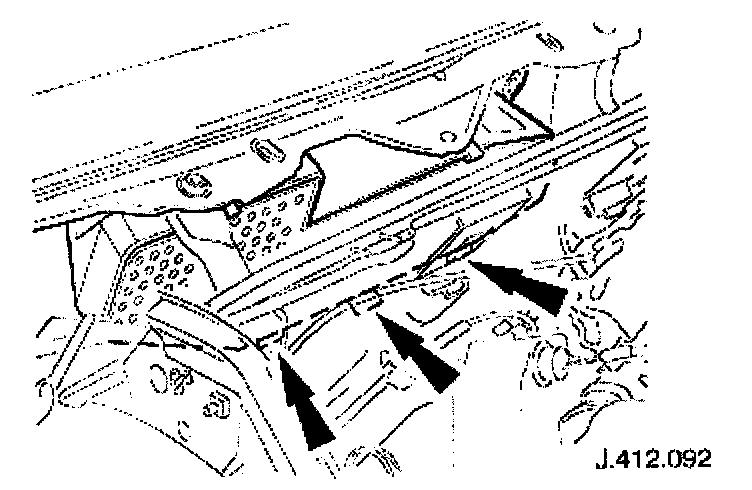

5. Release the two lower securing tangs, lightly press the accelerator cable support clear and remove the filter element.

Installation






1. Positioning lower securing tangs and accelerator cable support to achieve clearance, install element lower edge in the housing.

CAUTION: The air particle filter element must be installed with the white flock side facing forwards. If the element supplied will not fit in this position it must be changed for the correct part.






2. Lift the upper securing tangs, press the top of the filter element rearwards and fully seat it in the housing.
3. Install the plenum cover.
4. Install windshield wiper arms and blades. Refer to Wiper and Washer Systems. Wiper Arm

5. Remove covers from fenders.
