Blower Motor: Description and Operation

Blower Motor Speed Control

The A/CCM controls the speed of two blower motors which deliver airflow to the air conditioning unit. The blower motors are regulated by power transistor modules which provide a linear variation of blower speed.

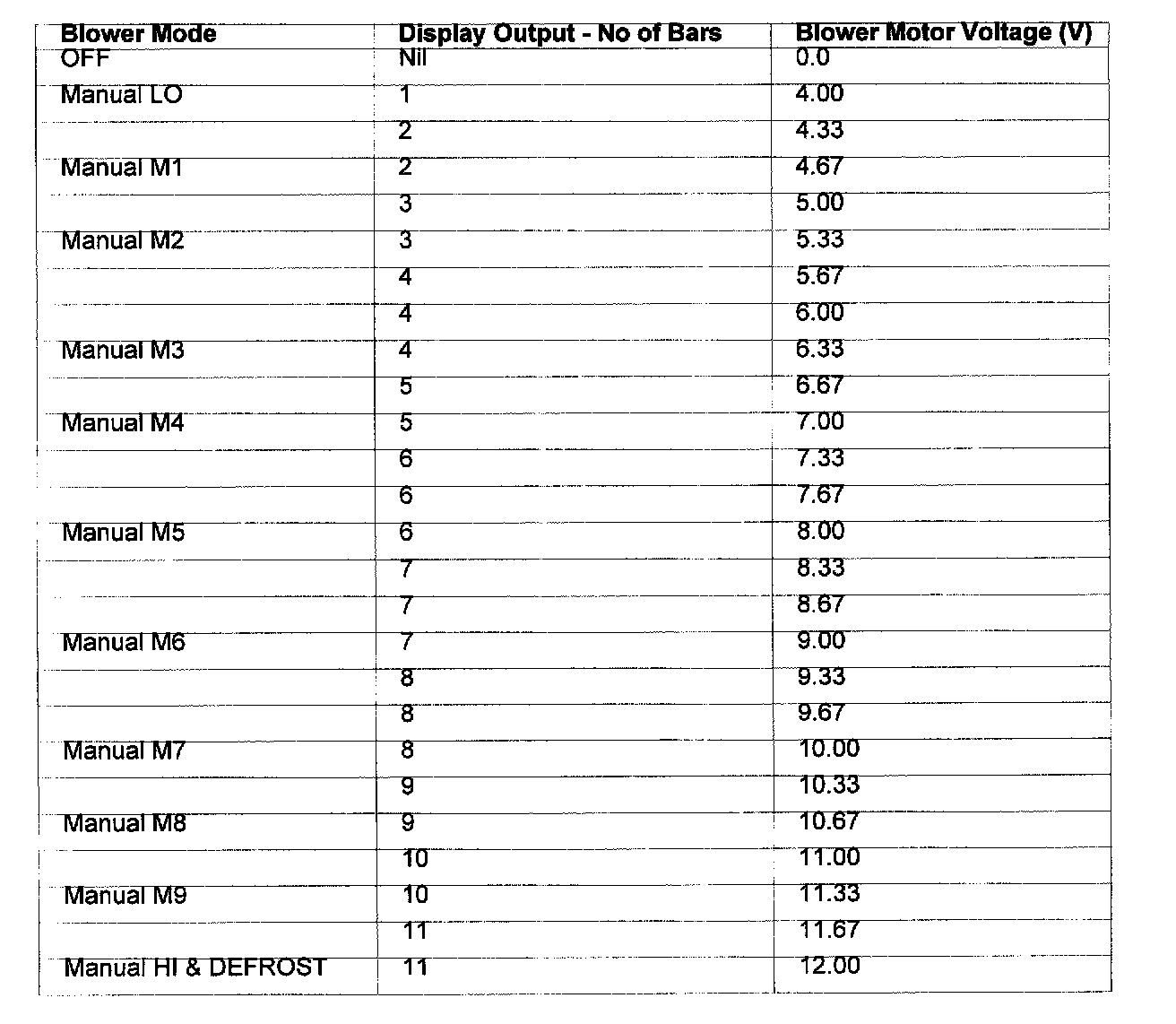

Relationship Manual Control Blower Speed / Voltage

NOTE:
Blower motors are inhibited when the engine coolant temperature is below 35 °C and heating is demanded, unless DEFROST is selected.

Relationship Manual Control Blower Speed / Voltage:
