Front Muffler

Removal
1. Raise the vehicle on a four-post ramp. Vehicle Lifting

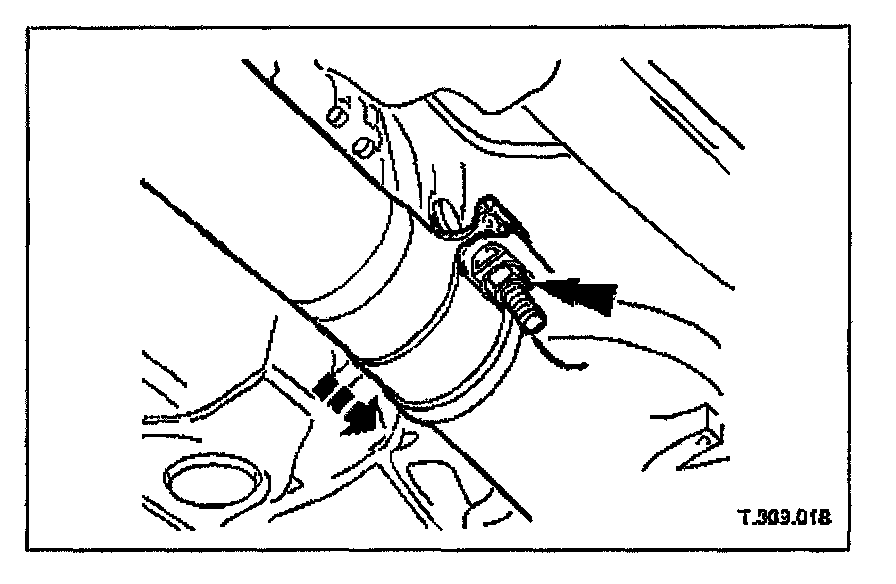

2. Move the front muffler forward to allow the intermediate mufflers to be displaced.
Slacken the muffler to catalytic converter securing clamps (left and right-hand sides).

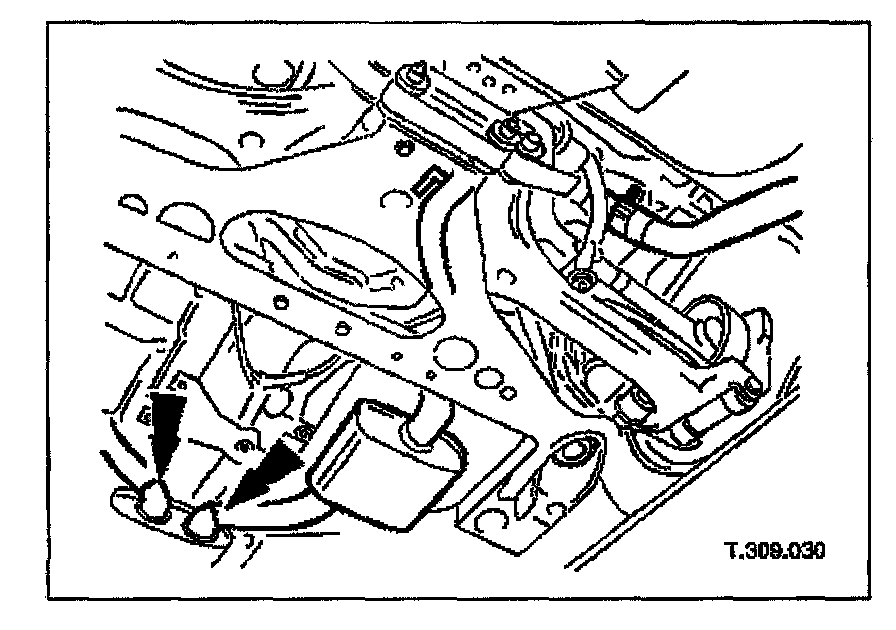

3. Slacken the front to intermediate muffler securing clamps (left and right-hand sides).
4. Remove the front muffler.
Disconnect the front muffler from the intermediate mufflers and then from the down pipe catalytic converters.


Installation
1. Install the front muffler.
Connect the front muffler to the downpipe catalytic converters and then to the intermediate mufflers.

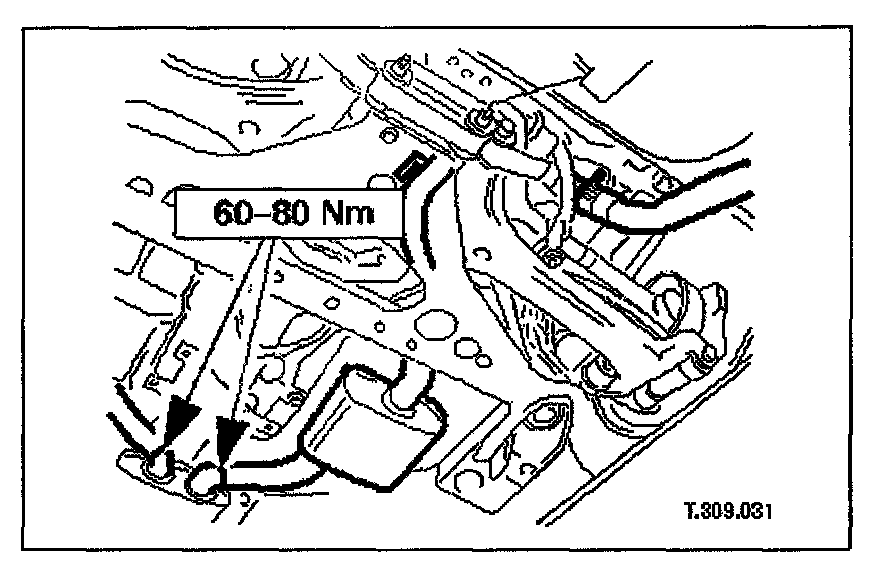

2. Tighten the front to intermediate muffler securing clamps (left - and right-hand sides).
Correctly position the muffler joints.

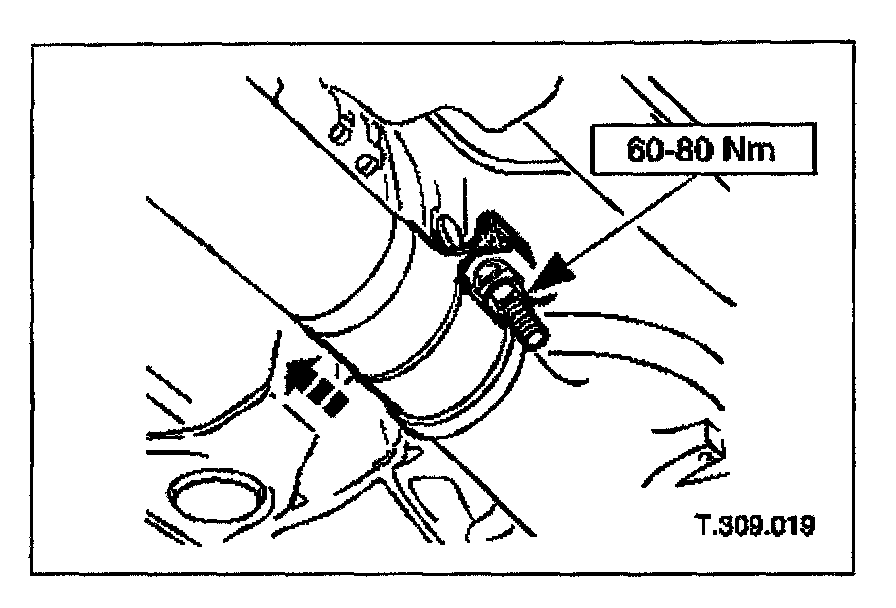

3. Correctly position the front muffler rearward.
Tighten the muffler to catalytic converter securing clamps (left and right-hand sides).
4. Lower the ramp.
