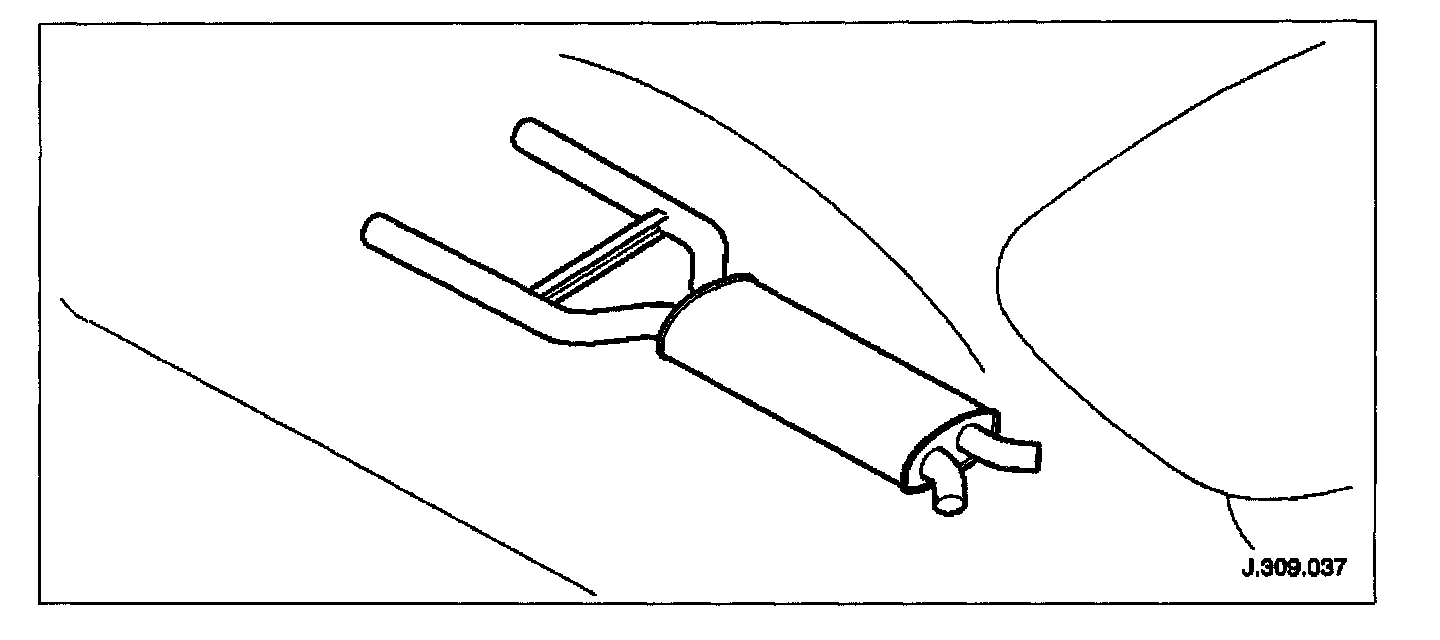

Front Muffler Assembly









The front muffler assembly features:
Twin-pipe absorption type muffler.
Pipe-to-pipe pressure damping.
Inlet and outlet pipes welded to the muffler.
Inlet pipes joined together by a loose metal tie strap secured by two nuts and bolts.
