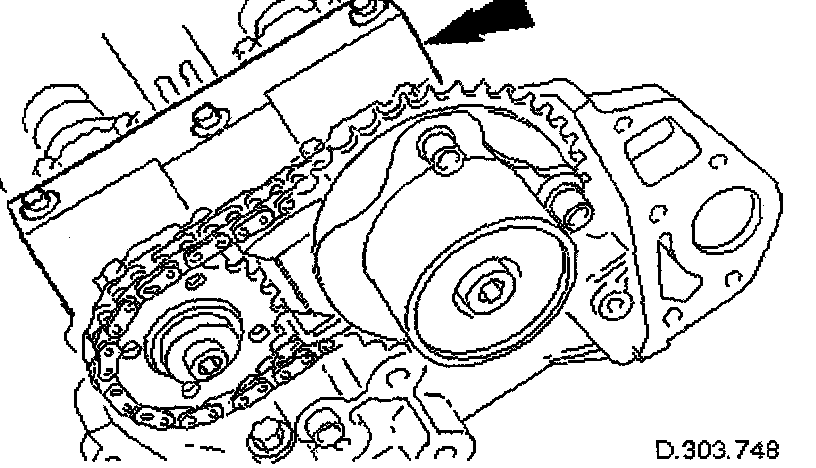

Timing Component Alignment Marks: Locations

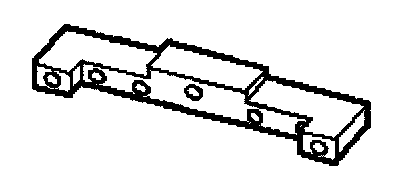

Camshaft Setting Tool 303-530:

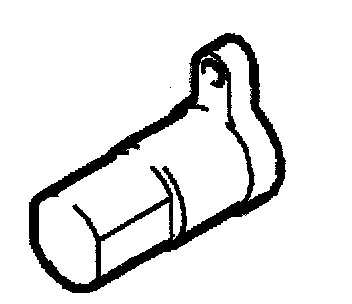

Crankshaft Setting Peg 303-531/645:

Setting engine timing after cylinder head service or replacement of a timing chain requires the use of special tools.
WARNING Failure to use the required special tools will cause severe engine damage.

CAUTION: Do not rotate the crankshaft counterclockwise. The timing chains may bind causing engine damage.

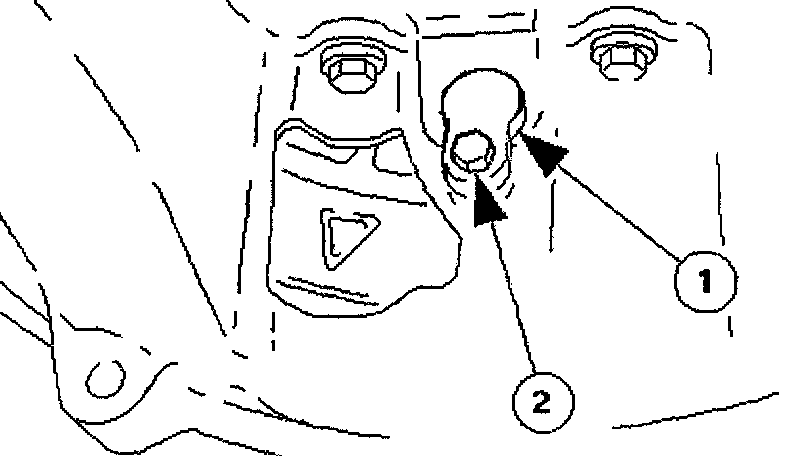

- Installed crankshaft setting peg 303-531 [1].



- Installed camshaft locking tool 303-530.

Expanded procedure(s) for servicing timing chain(s) can be found at "Engine : Timing Components : Timing Component Alignment Marks : Service and Repair".Service and Repair
