Oil Cooler: Description and Operation

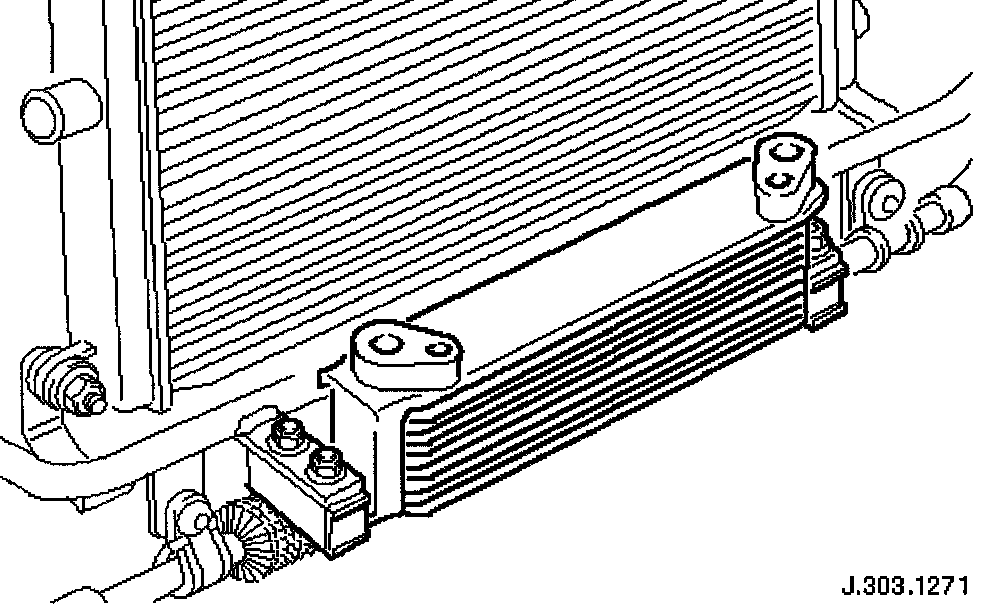

The engine oil cooler is located in front of the radiator, mounted off-center with two steady brackets bolted onto the front upper crossmember in front of the cooling module.
When an oil cooler is installed, an oil diverter valve is also installed onto the oil filter with supply and return piping to and from the oil cooler.
