Drive Belt Tensioner: Service and Repair

Supercharger Drive Belt Tensioner

Removal
1. Remove twin fan and motor assembly.
2. Remove supercharger drive belt. Service and Repair





3. Remove tensioner from alternator mounting bracket.

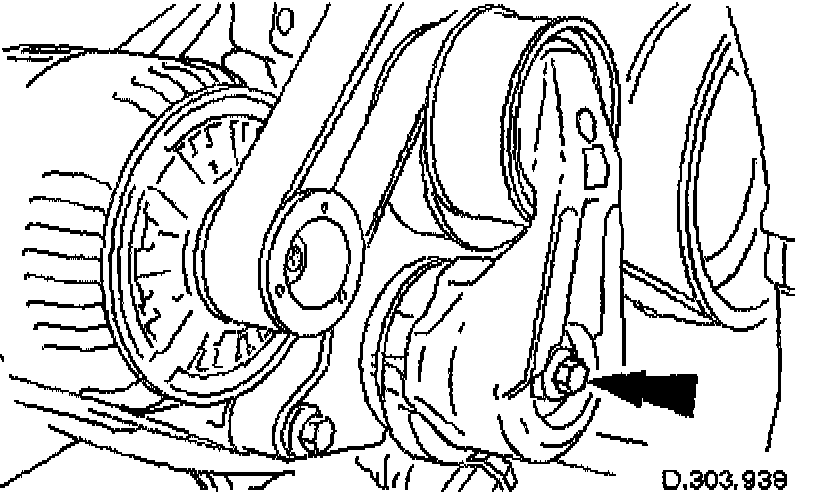

Remove bolt.
Remove tensioner.

Installation

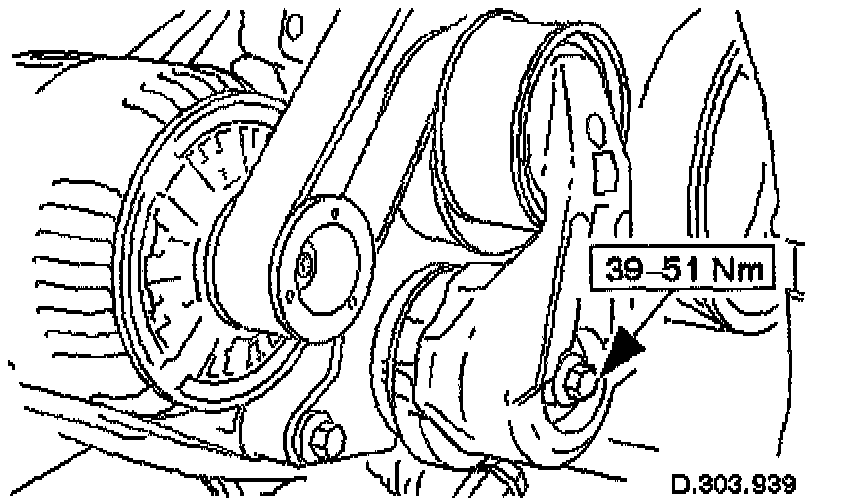

1. Install drive belt tensioner to alternator mounting bracket. Locate tensioner using its locating pegs.
2. Install supercharger drive belt.
3. Install twin fan and motor assembly.
