Radiator Top Hose

Removal
1. Open the engine compartment and fit paintwork protection sheets.
2. Drain the radiator. Retain the coolant drain tray in position to catch any spillage when removing the hose.

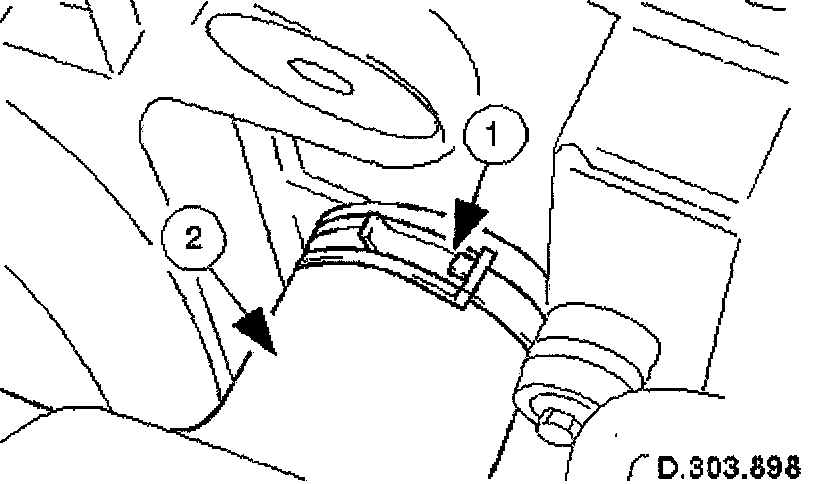

3. Disconnect the top hose from the coolant outlet pipe.
Release and reposition the hose clip, and disconnect the top hose.

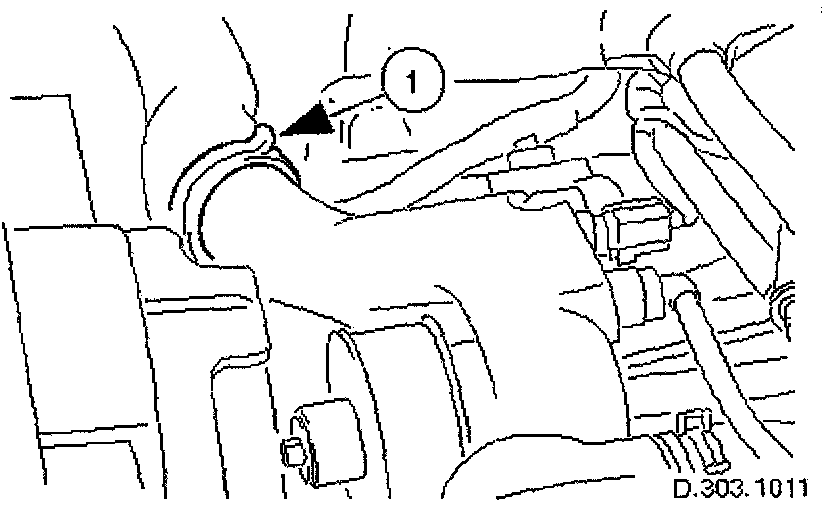

4. Release the top hose from the radiator.
Release the hose retaining clip and reposition the clip along the hose.
Disconnect the hose from the radiator.
Remove the hose clips from the top hose.

Installation
1. Installation is the reverse of the removal procedure.
2. Refill the cooling system as described in General Procedures.
