Jaguar
>>
2000
>>
XKR Convertible (X100) V8-4.0L SC (AJ27)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning
Heating System

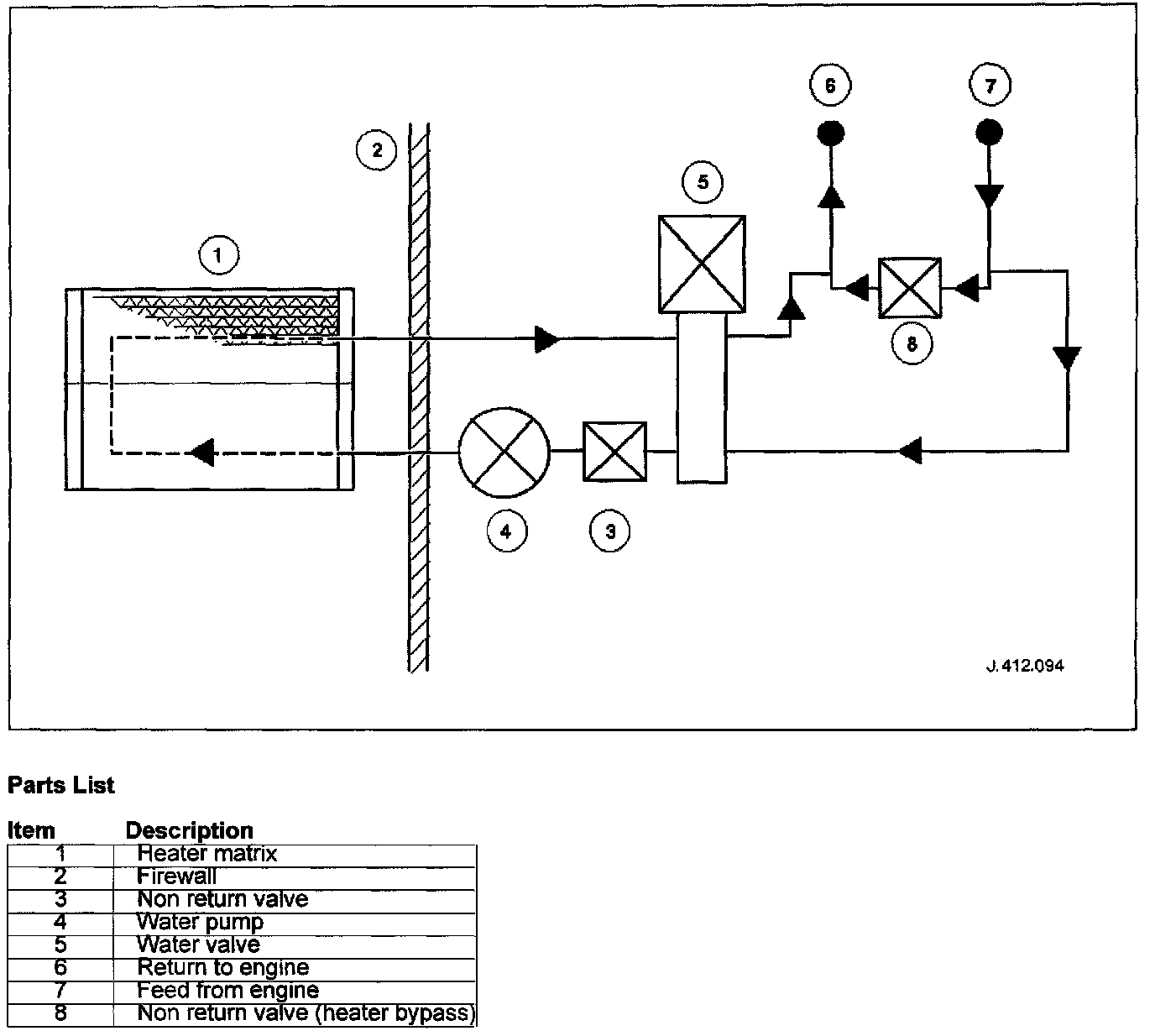

Schematic Diagram:
