Information Bus

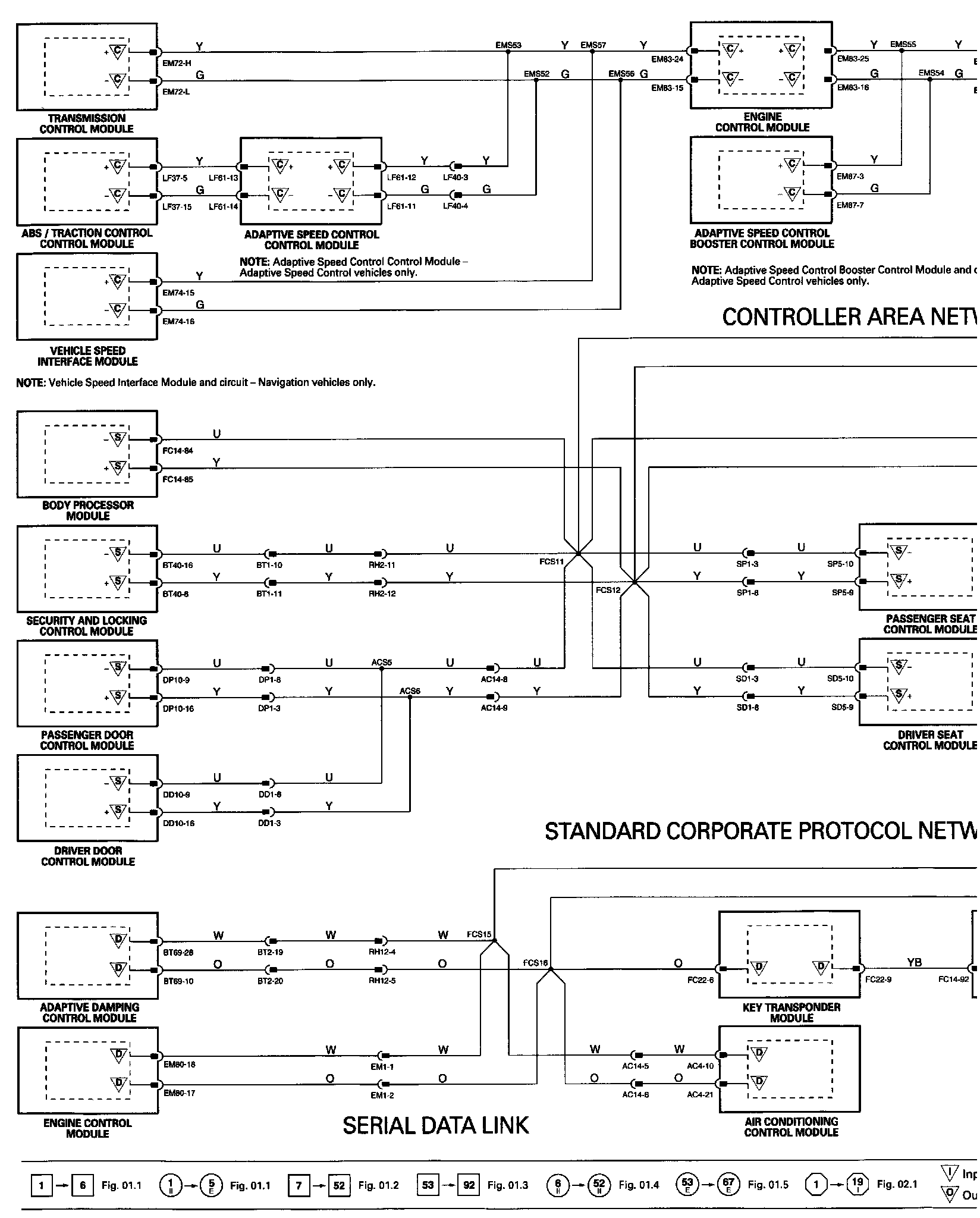

°�Networks; Serial Data Links: AJ27 SC - Wiring Dia.:

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

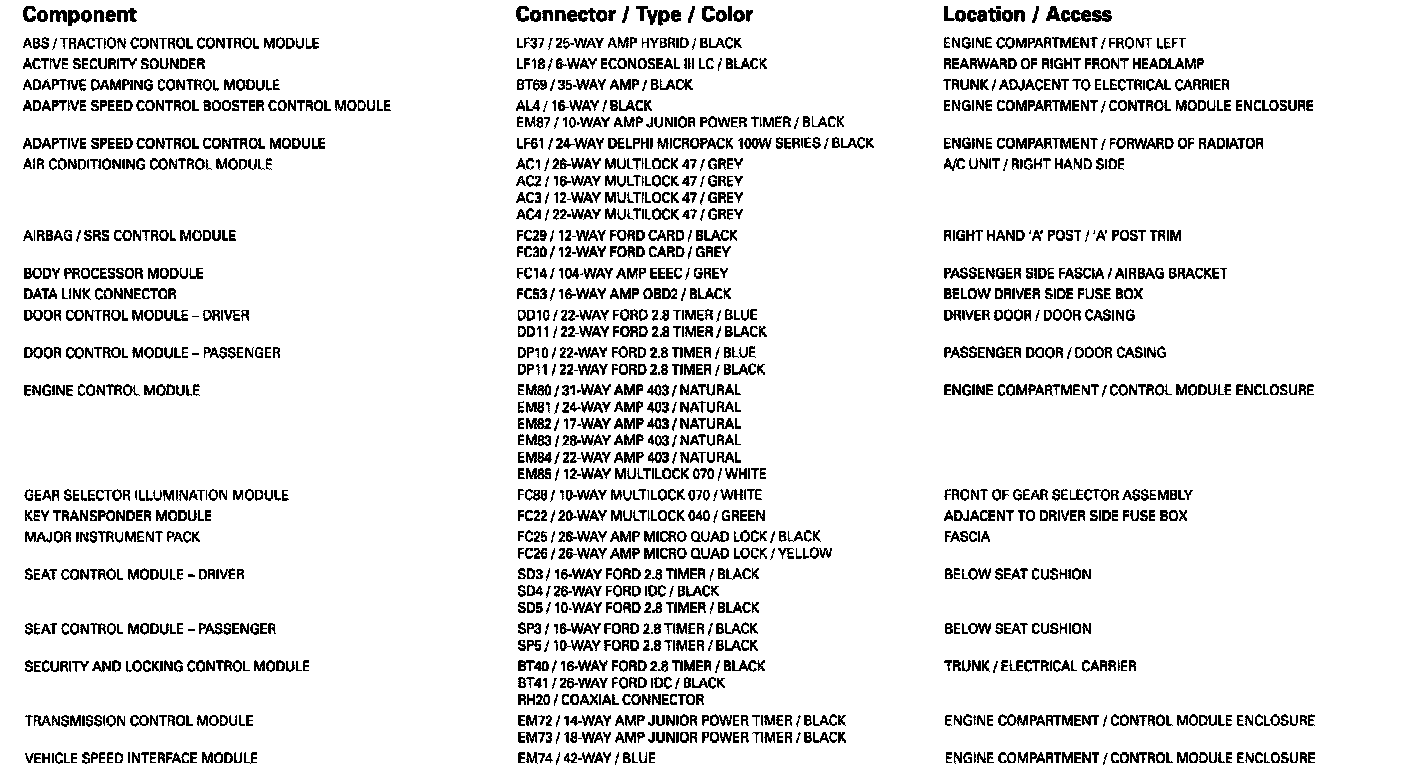

Components:

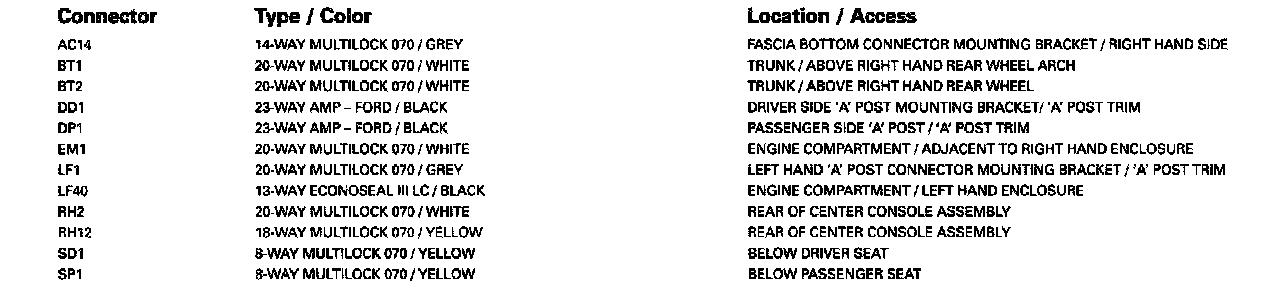

Harness-To-Harness Connectors:

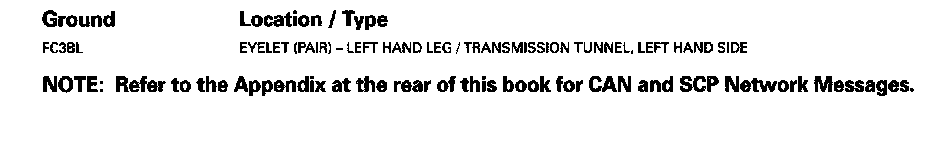

Grounds:
