Headlamp Leveling

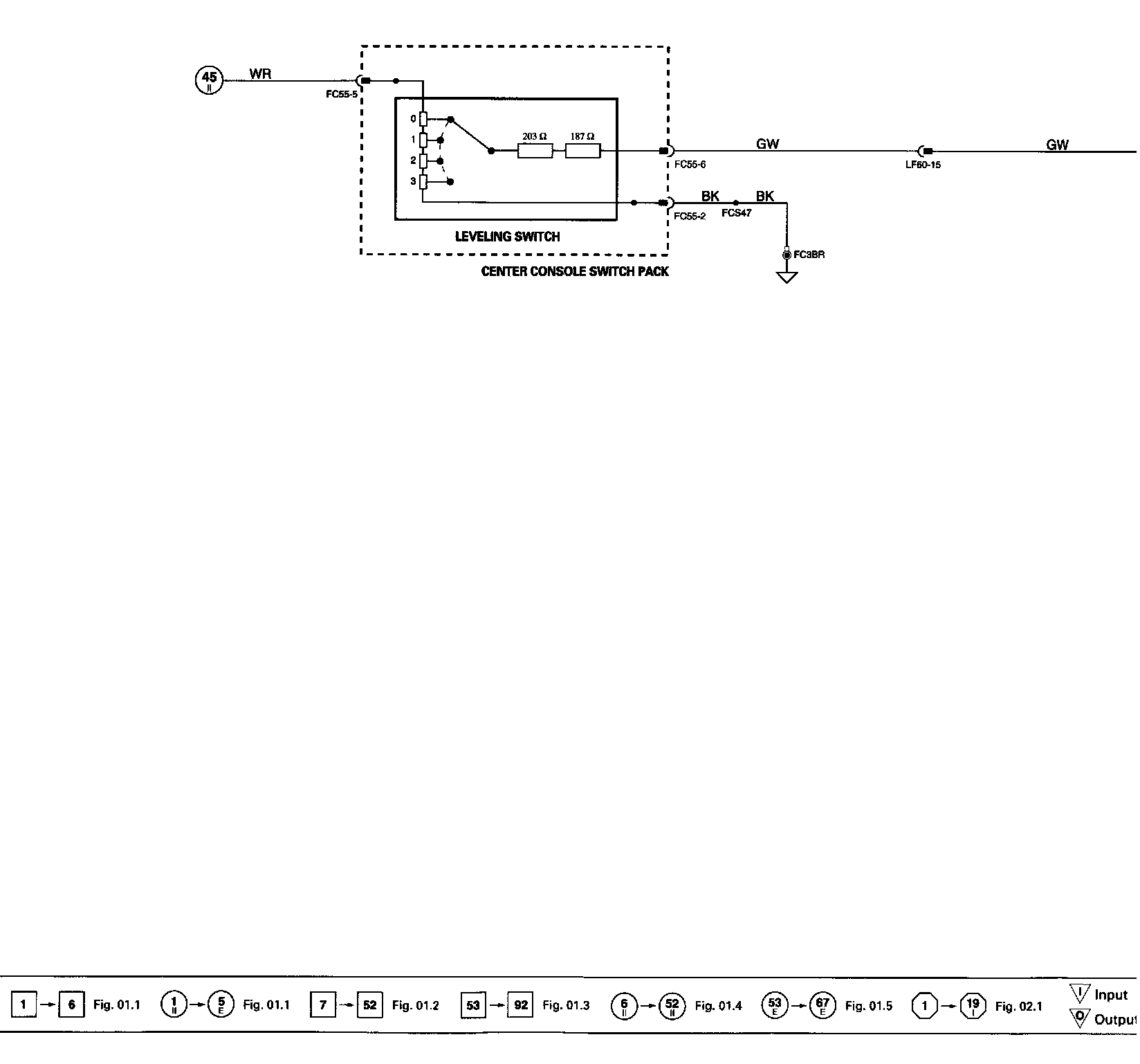

s��%Headlamp Leveling - Wiring Diagram:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

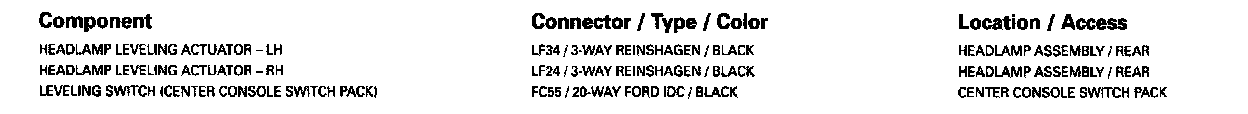

Components:
Harness-To-Harness Connectors:

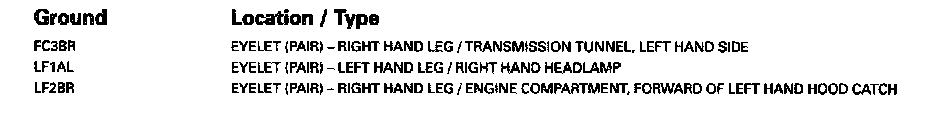

Grounds:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams
