XKR Convertible (X100) V8-4.0L SC (AJ27)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagram By Fig Number
>>
Fig 20.1
Fig 20.1

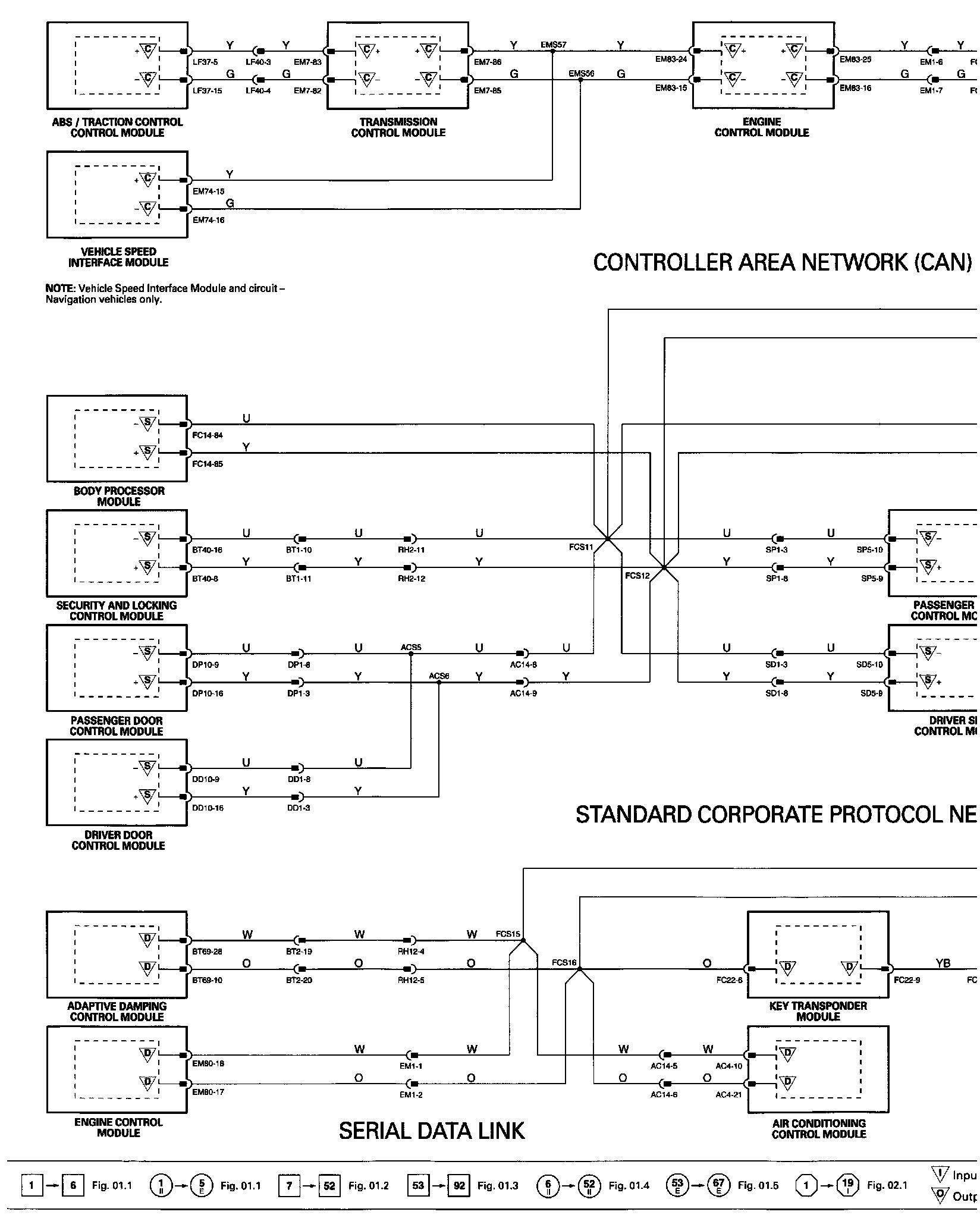

��� Networks; Serial Data Links: AJ27 N/A - Wiring Dia.:

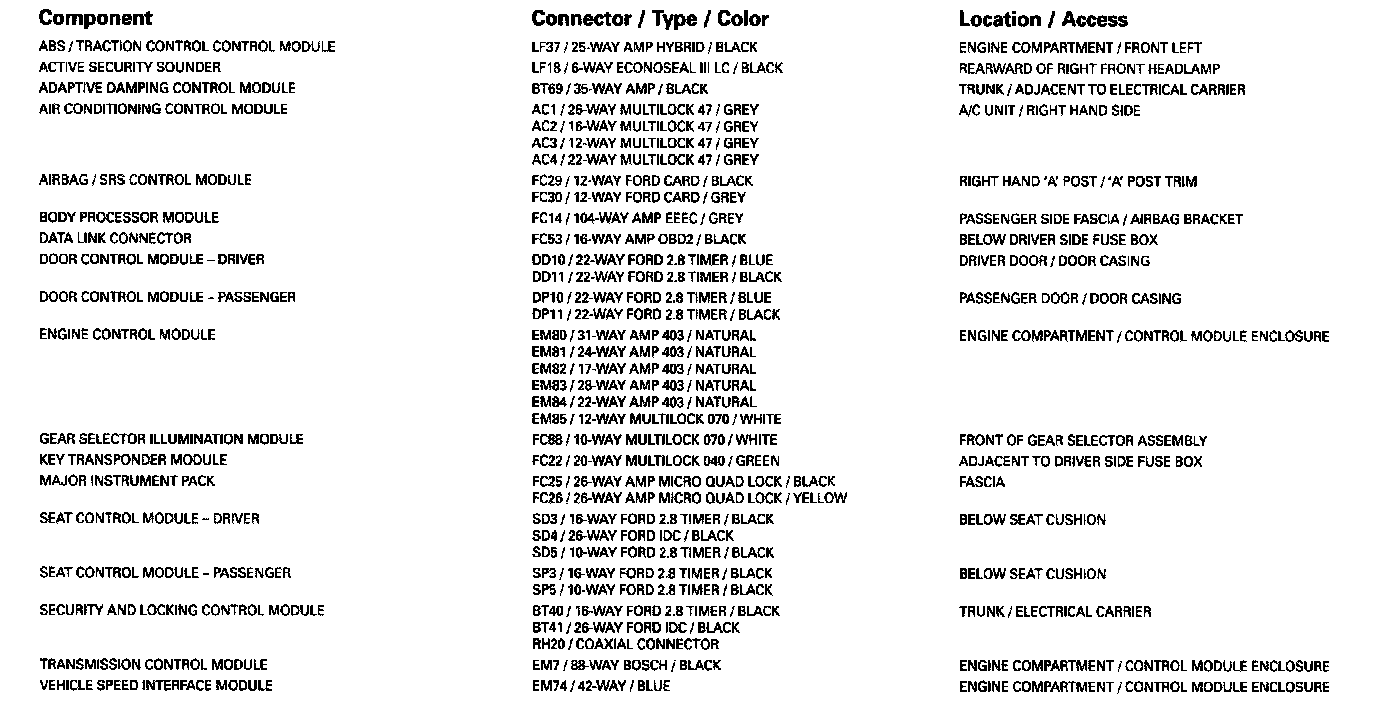

Components:

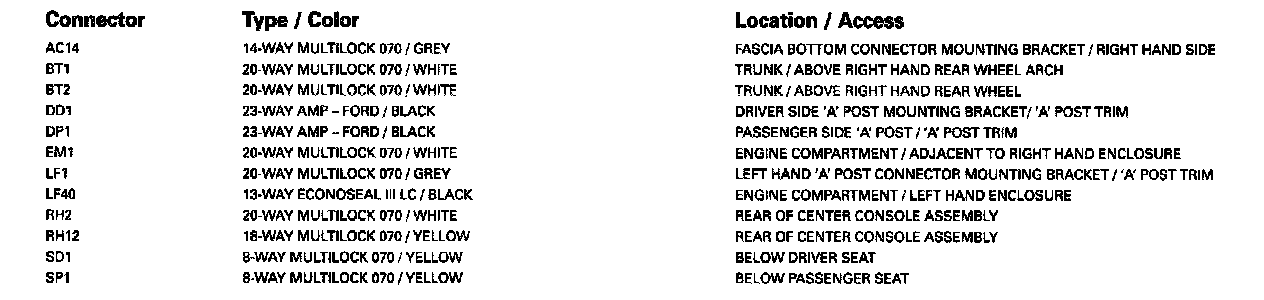

Harness-To-Harness Connectors:
Grounds:
