Fig 08.2

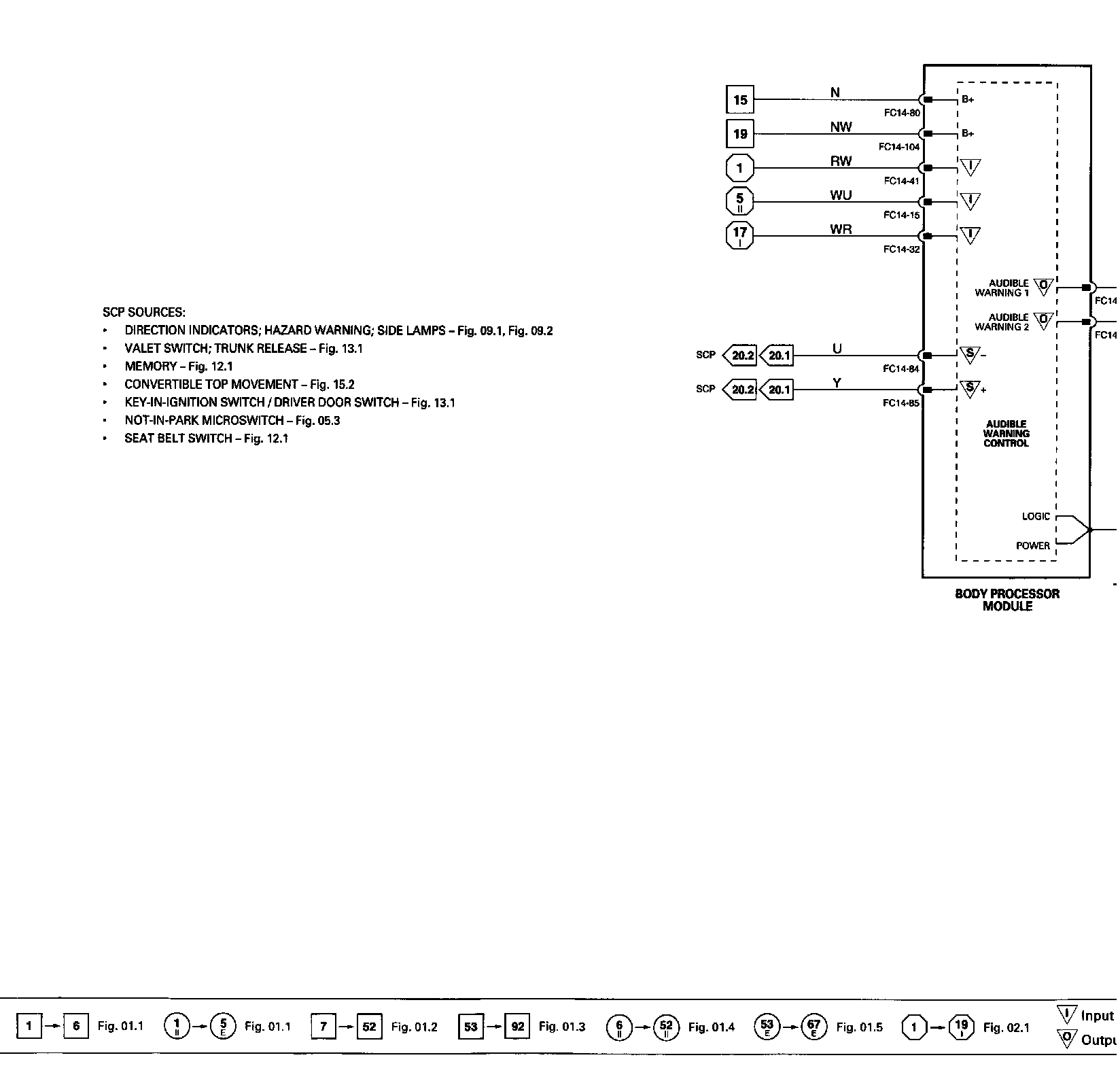

��$Audible Warnings - Wiring Diagram:






Components:

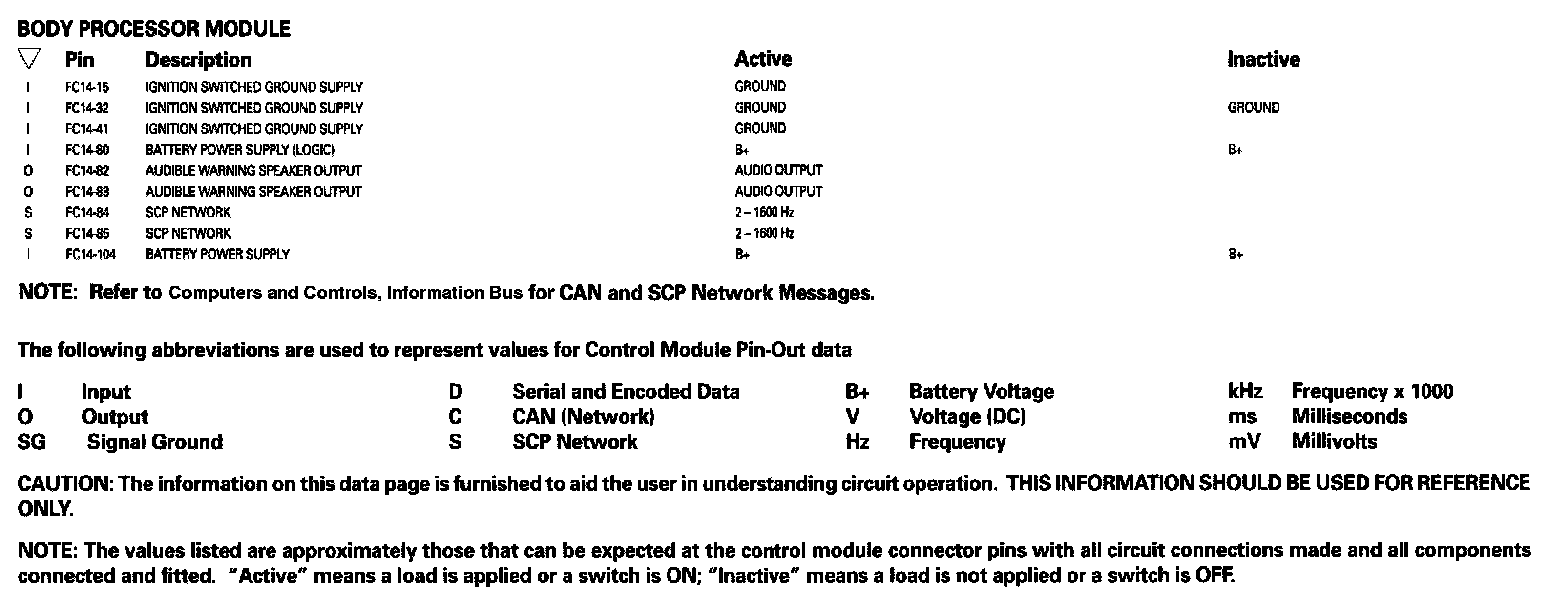

Control Module Pin Out Information:
