Fig 05.1

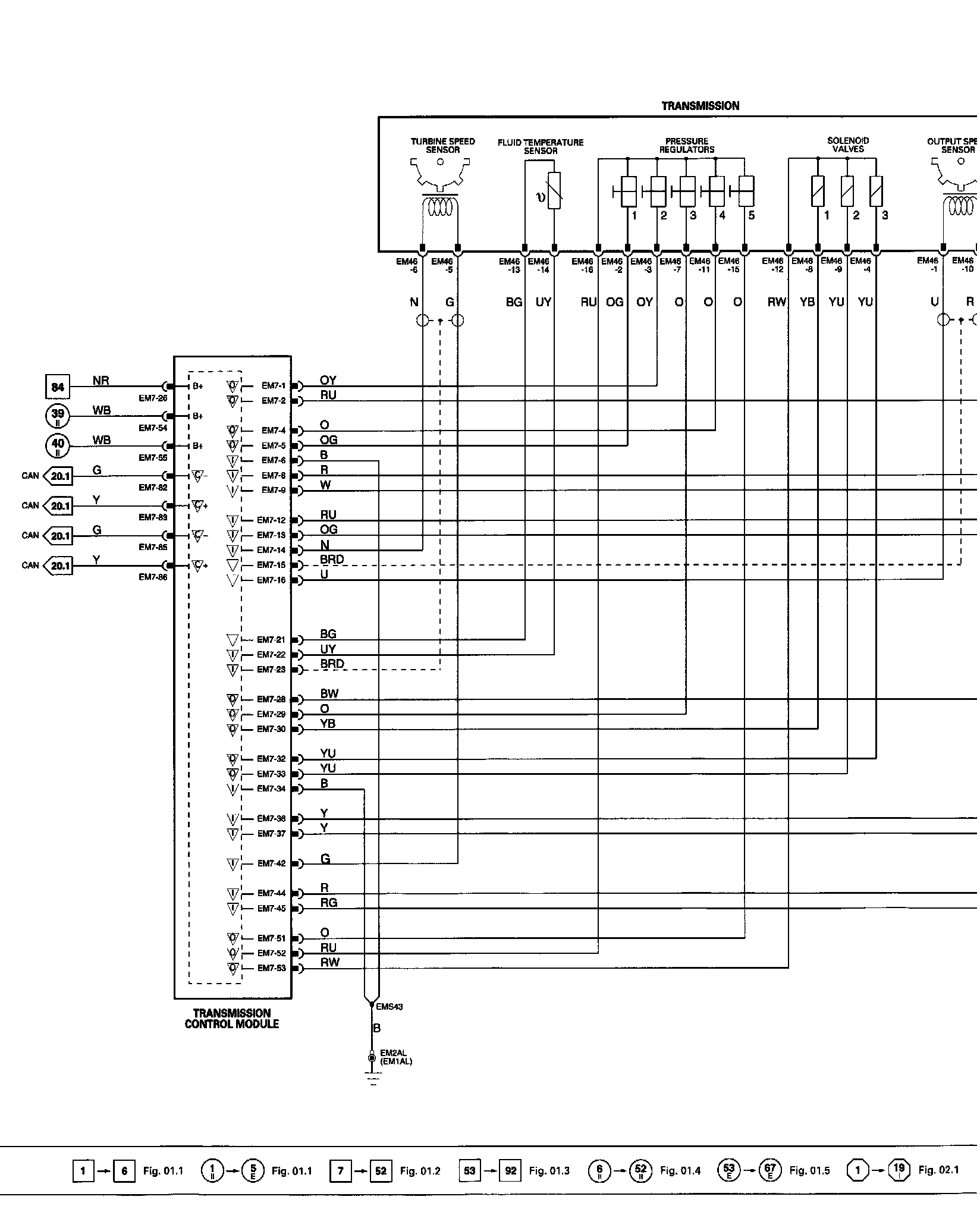

��AJ27 N/A Automatic Transmission - Wiring Diagram:

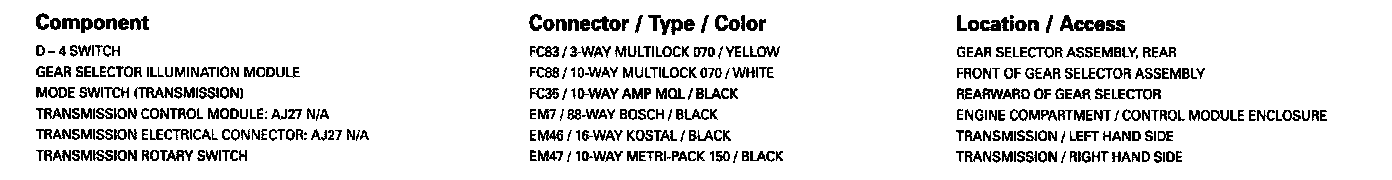

Components:

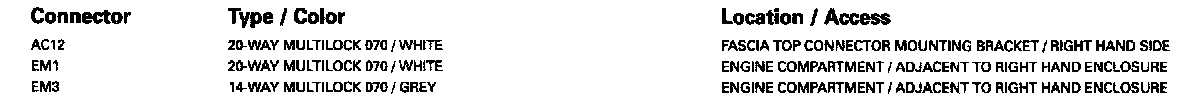

Harness-To-Harness Connectors:

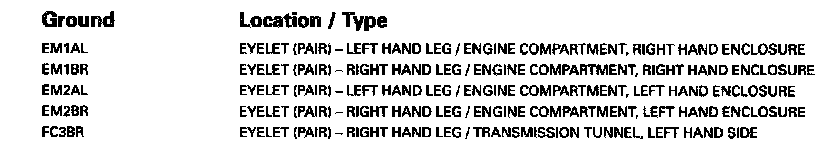

Grounds:







Control Module Pin Out Information:
