Jaguar
>>
2000
>>
XKR Convertible (X100) V8-4.0L SC (AJ27)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagram By Fig Number
>>
Fig 04.2
Fig 04.2

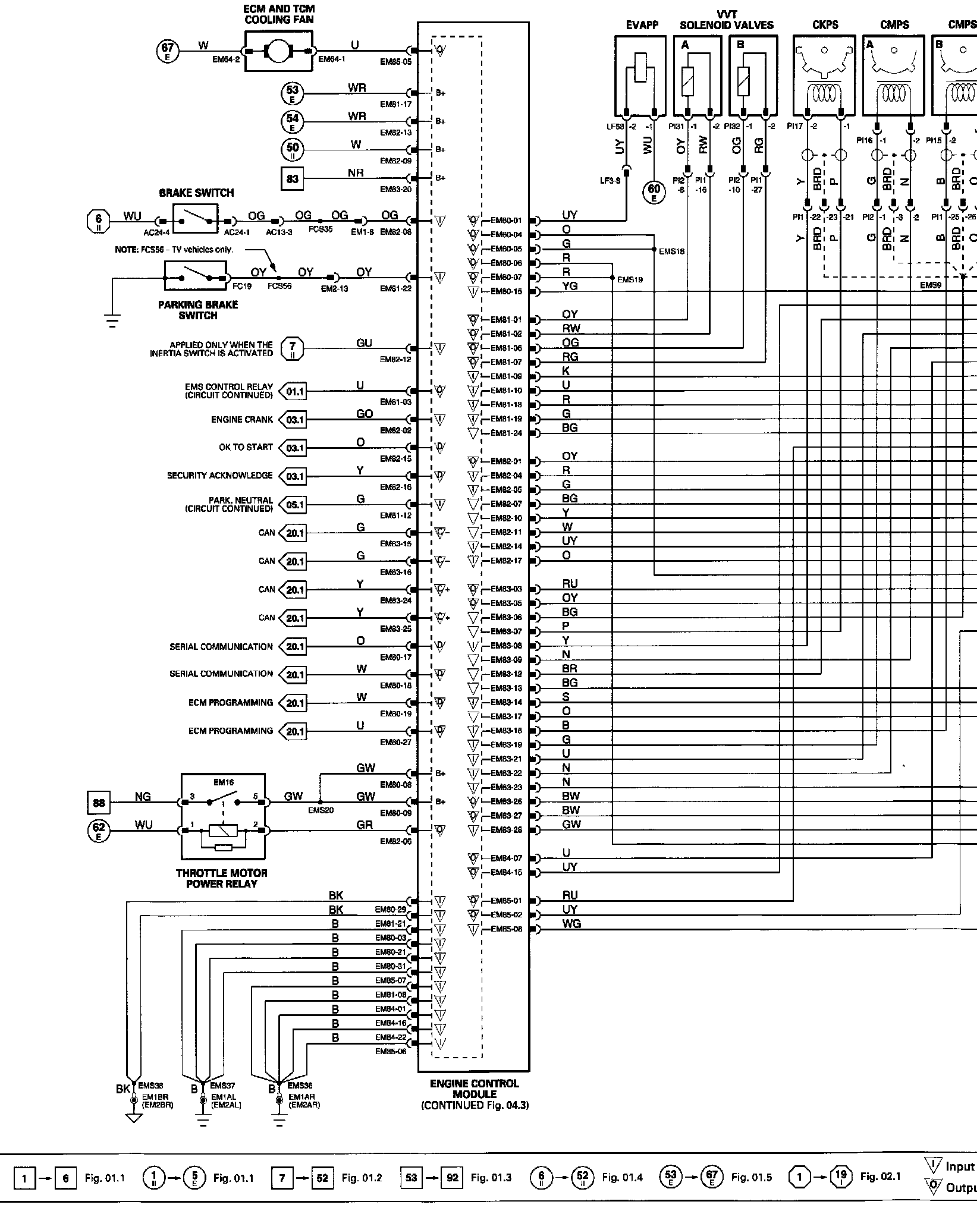

ded'AJ27 N/A ROW Engine Management: Part 1 - Wiring Dia.:

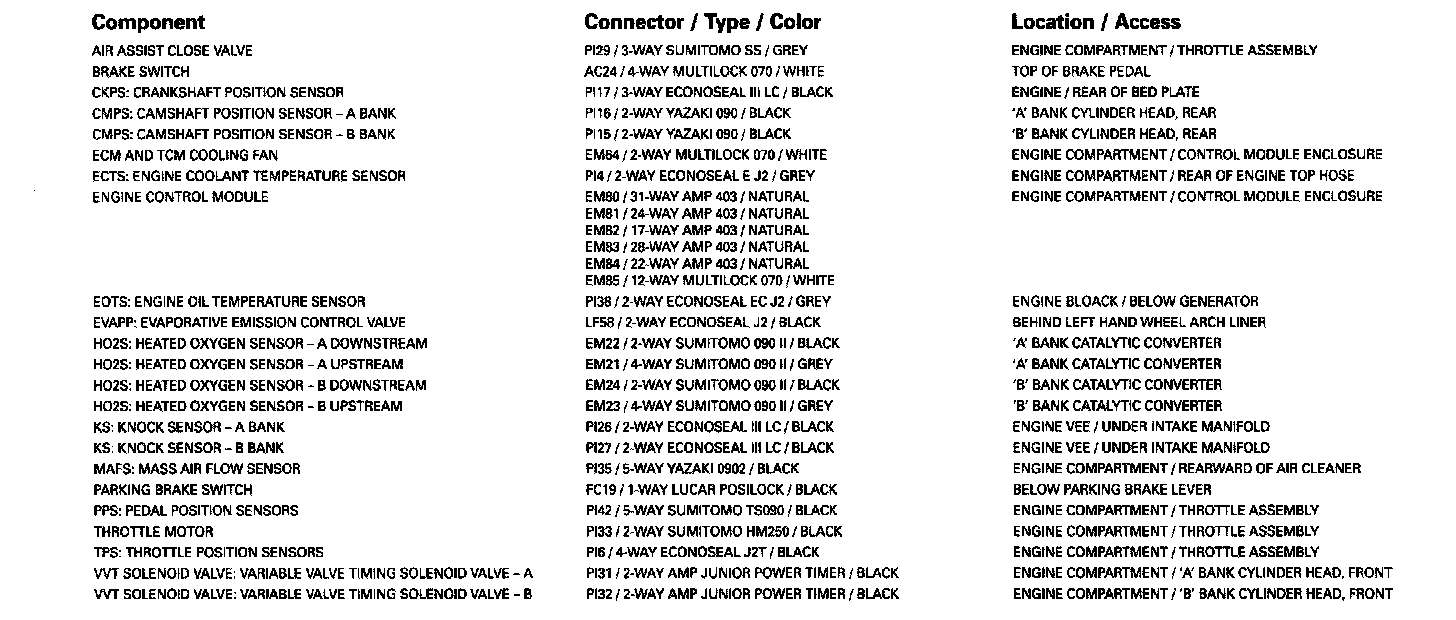

Components:
Relays:

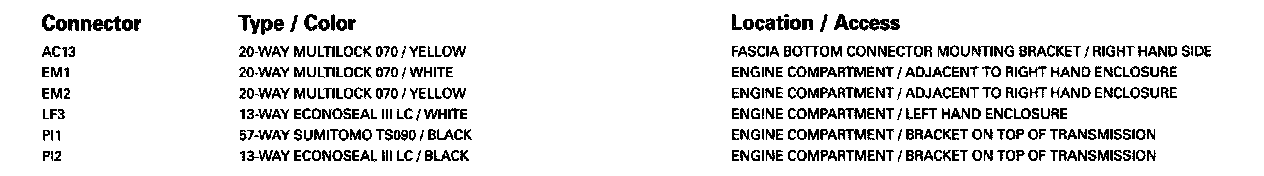

Harness-To-Harness Connectors:

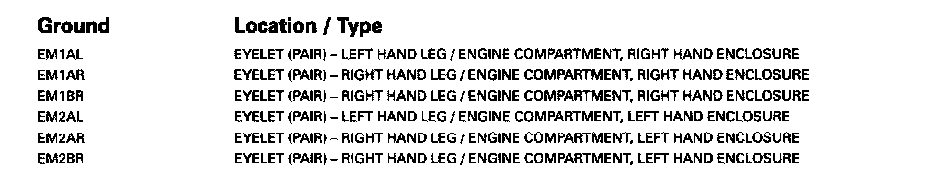

Grounds:

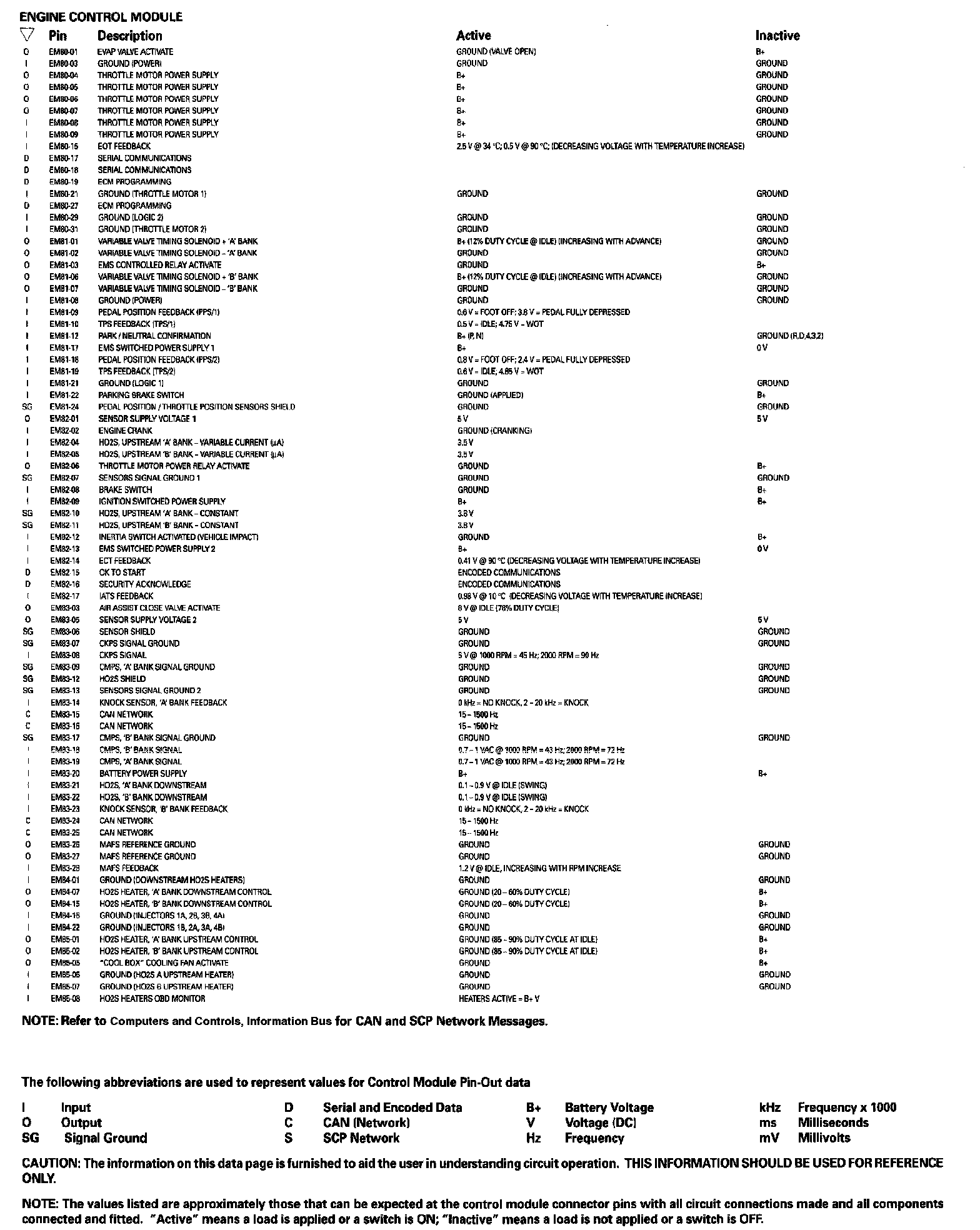

Control Module Pin Out Information:
