Shift Interlock, A/T

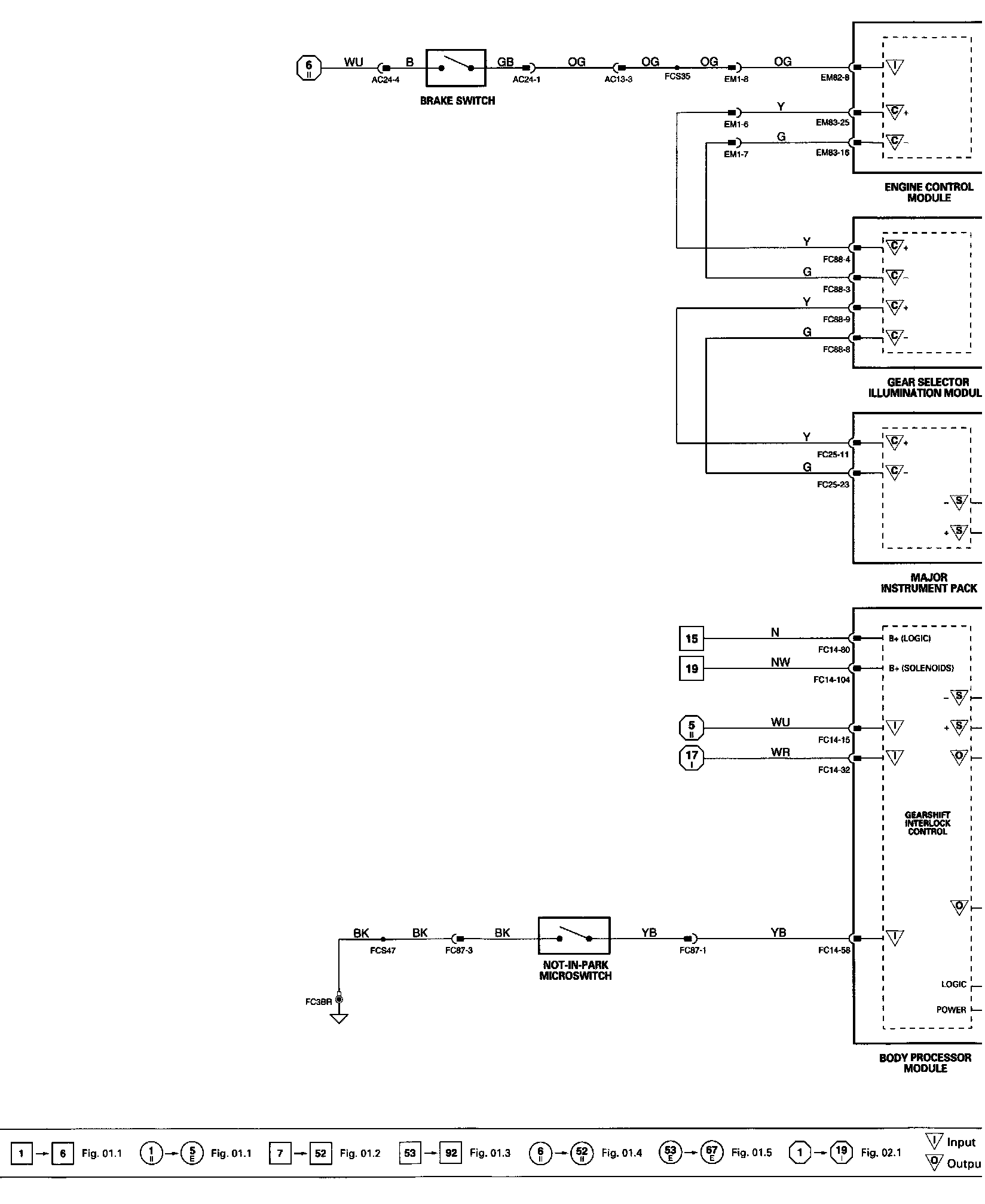

3l^Gearshift Interlock - Wiring Diagram:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

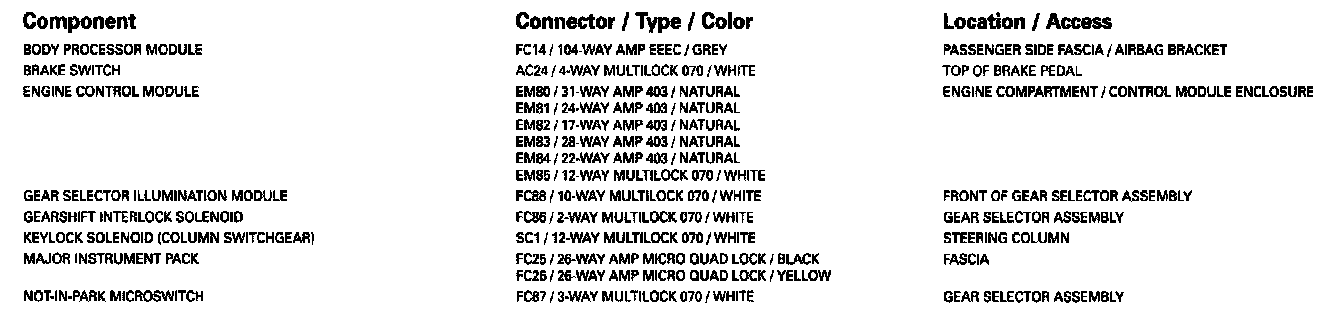

Components:

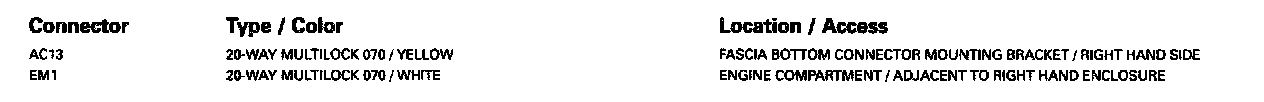

Harness-To-Harness Connectors:

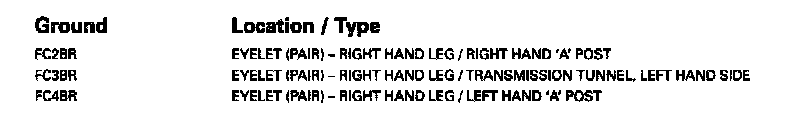

Grounds:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams
