Control Assembly, HVAC



Control Panel Communication
The control panel provides operator interface with the climate control system.

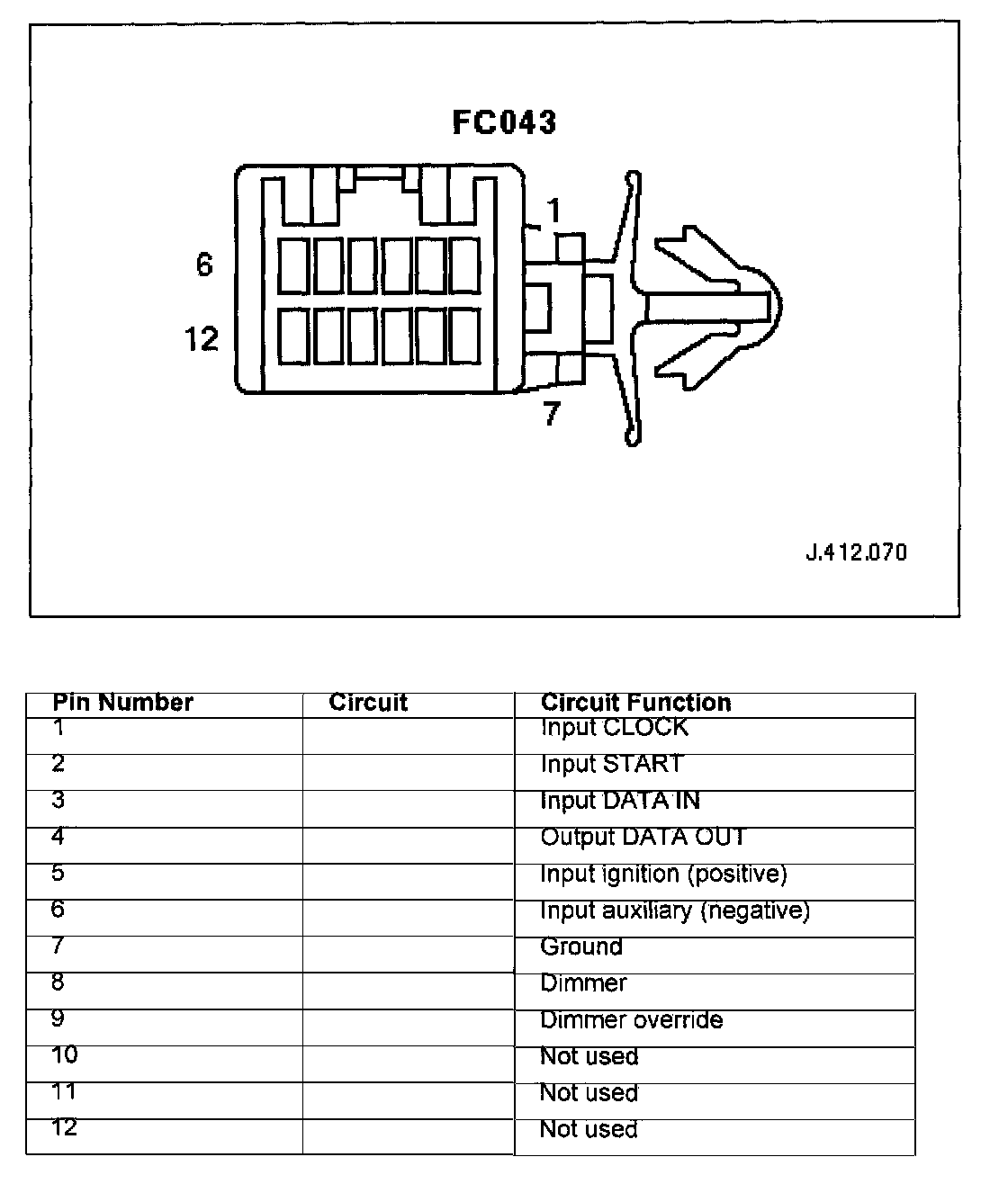

Connector Pin Identity Chart For FC043:
