Repair and Diagnosis: Description and Operation

XK8 Introdution

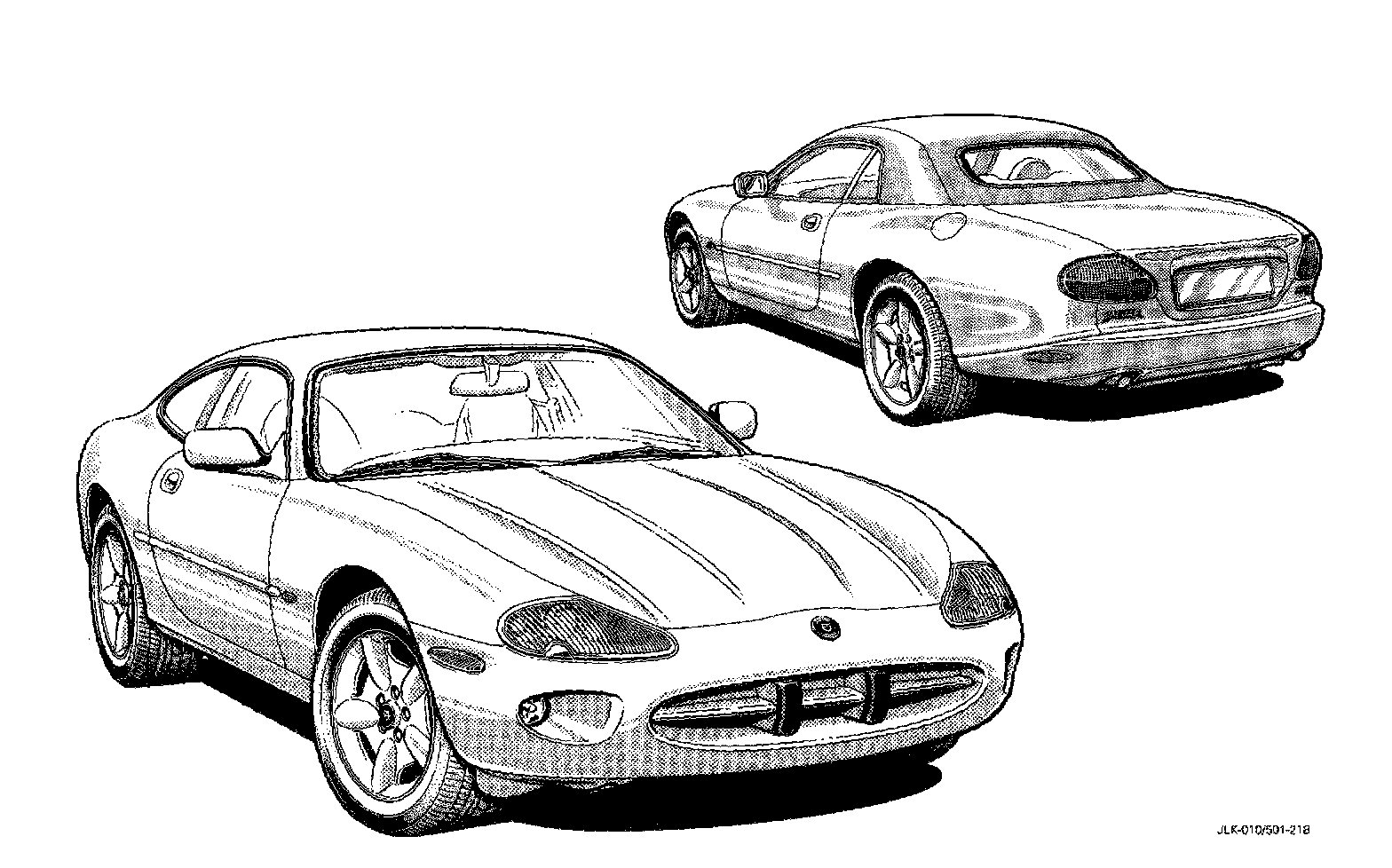

The XK8 is a luxury sports car available in both coupe and convertible forms. The car was the launch vehicle for the AJ-V8 engine now used in the Sedan Range and the 4.0L S-Type. The ZF 5-speed automatic transmission was also first introduced with the launch of the XK8.

Interiors are trimmed in Classic style, which retains Jaguar's traditional burr walnut veneer and color coordinated trim.

Two computer systems are used to control and monitor vehicle systems, CAN and SCP. CAN is a higher speed system used for management of engine, transmission and brakes. SCP is a slower system used for operation of body systems, such as, seat movement, door window operation and vehicle locking and security.

Some features are:
- a speed sensitive, variable ratio, power steering system
- an all new front suspension system
- seat belt pretensioners
- power latching convertible top
- steering wheel mounted ICE and cruise control switches
- fade up/down interior lighting on entry and exit
- telescopic headlamp power wash
- wiper blade mounted washer jets
- four-button remote transmitter
- height adjustable driver seat

Vehicle Weights:

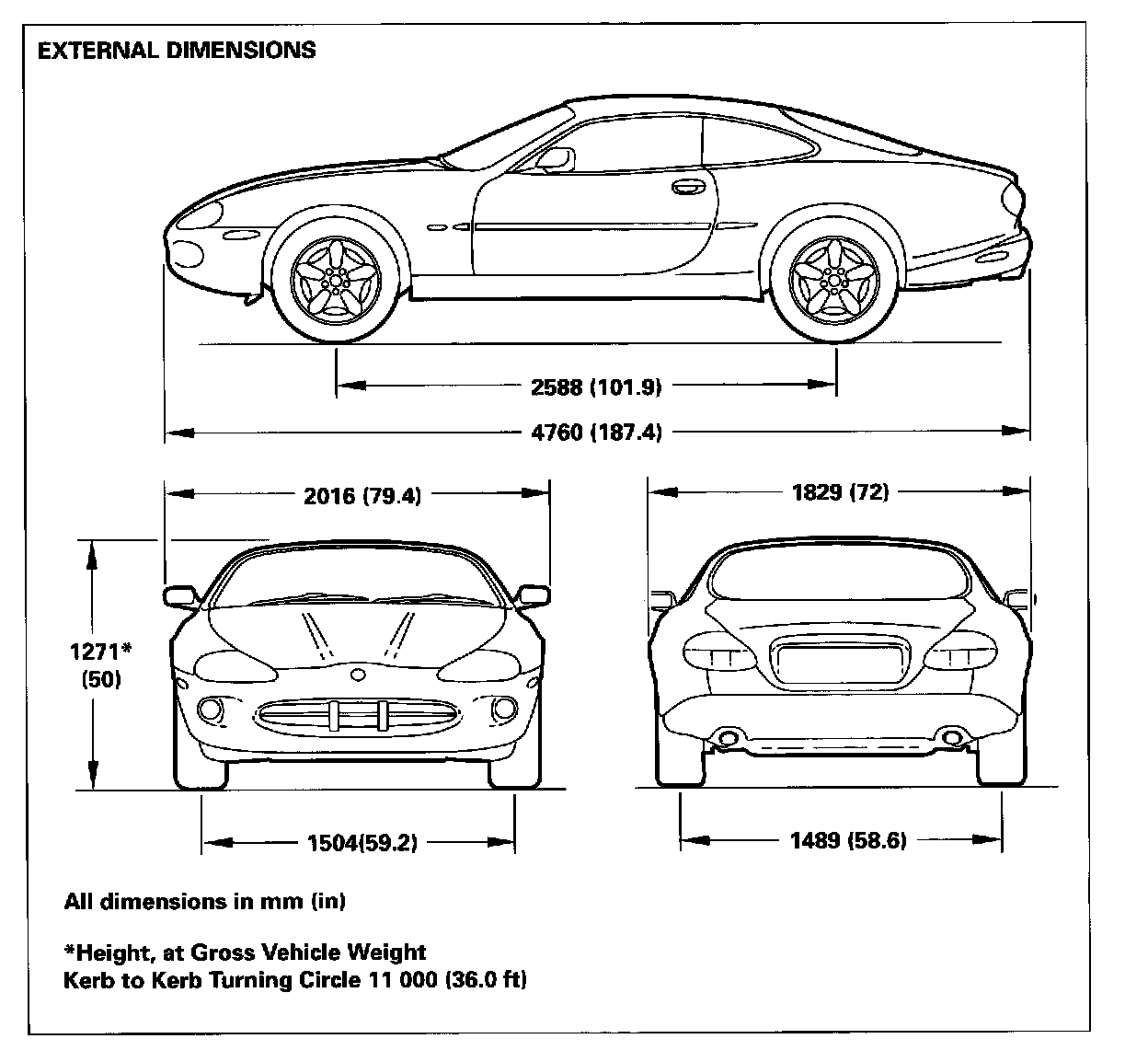

Dimensions:
