Tool - ABS Rotor Nut Socket Tool

206-06

DATE
5/98

V8 XJ Series/XK8

MODEL
1997 MY-ON XK8 Range
1998 MY-ON V8 XJ Series

VIN
001001-ON
812256-ON

New Special Tool 206-066A - ABS Rotor Nut Socket (Version 2)

Issue:

Introduction of mandatory Service Tool: 206-066A.





Caution:
The ABS rotor nut socket 206-066 which precedes the above socket must not be used for torque settings which exceed 190 Nm.

Action:

REMOVAL:

1. Secure the hub in a vice using hub holding tool 204-195.

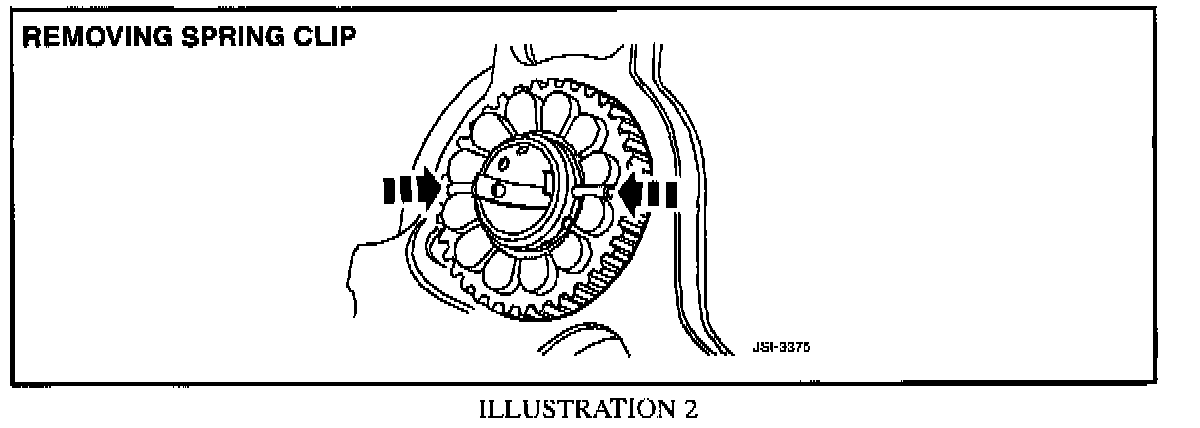

2. Remove the rotor-nut spring clip, by squeezing the two legs together until the prongs are released from the hub retaining holes.

3. Discard the spring clip.

4. Using the rotor-nut socket, remove the rotor-nut.

INSTALLATION

1. Fit the rotor-nut to the hub.

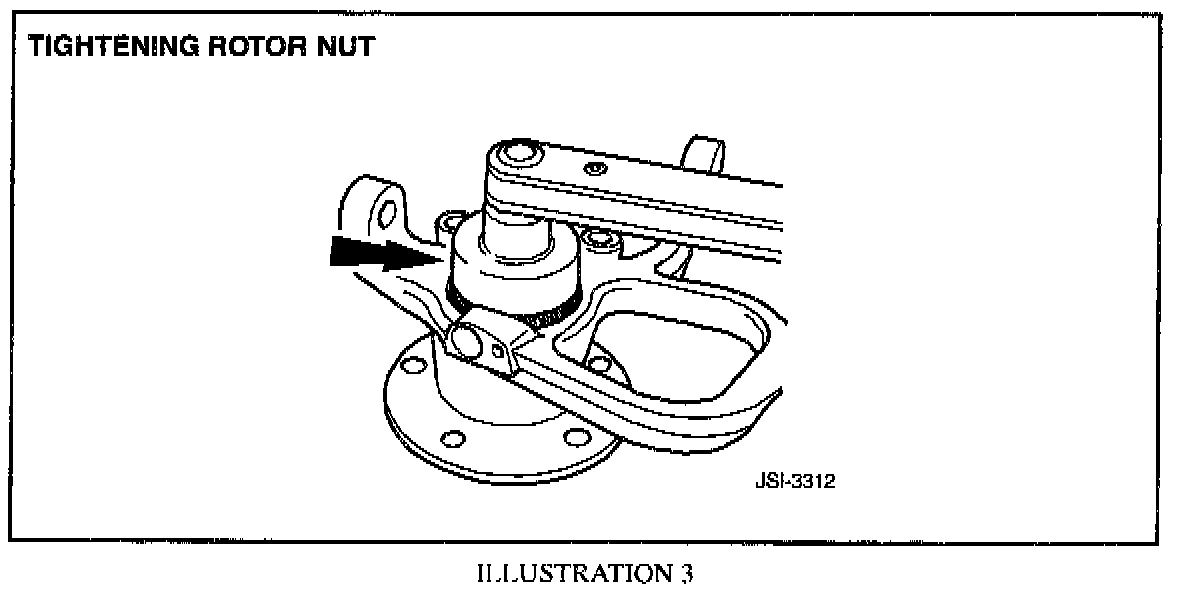

2. Tighten the rotor-nut to 270-330 Nm.

3. Install a new rotor-nut spring clip into the hub retaining holes and, if aligned, into the castellated slots of the rotor-nut.

4. It may be necessary to tighten the rotor-nut further, to engage the spring clip into the castellated slots of the rotor-nut.

Warning:
Do not slacken the rotor-nut to engage the spring clip.

5. Remove the hub from the vice.
