Return Springs - Relay Lever

Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.

1. Position vehicle on a four-post lift.

2. Make sure parking brake is fully released.

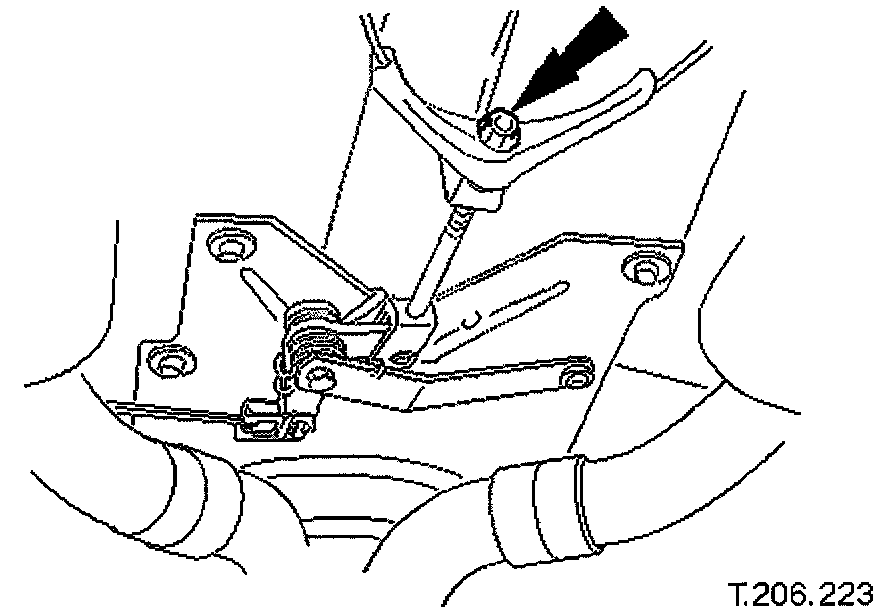

3. Slacken parking-brake cable, adjustment nut.

CAUTION: Be aware of the spring torsion when removing components.

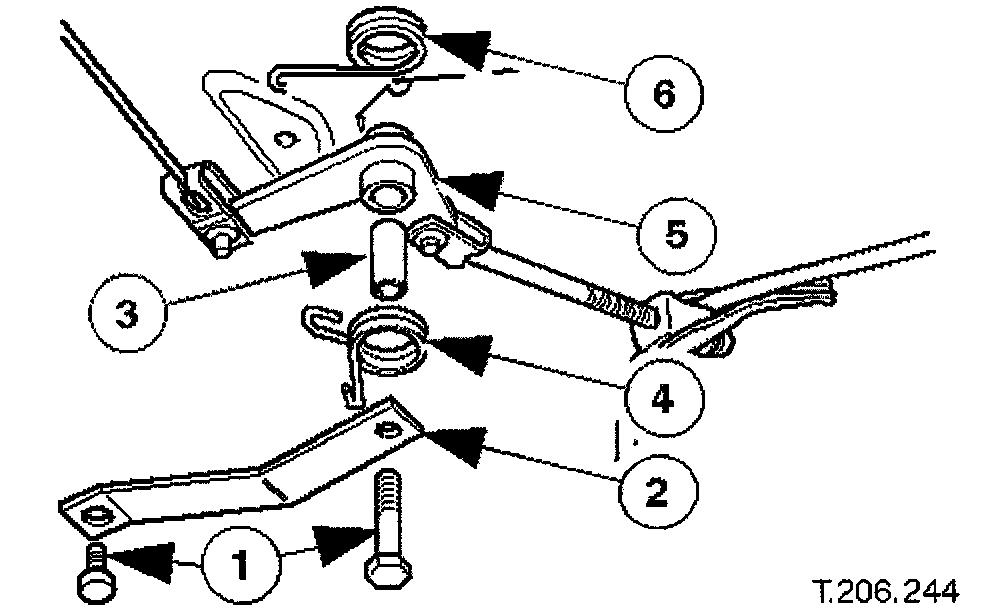

4. Remove components to access return springs.
- Remove bolts.
- Unhook return spring and remove tie strap.
- Collect bush from relay lever.
- Remove lower return spring.
- Lower relay lever.
- Remove upper return spring.

5. Clean components and mating surfaces.

Installation

NOTE: Make sure return-spring legs are located correctly after installation.

1. Installation is reverse of removal procedure.

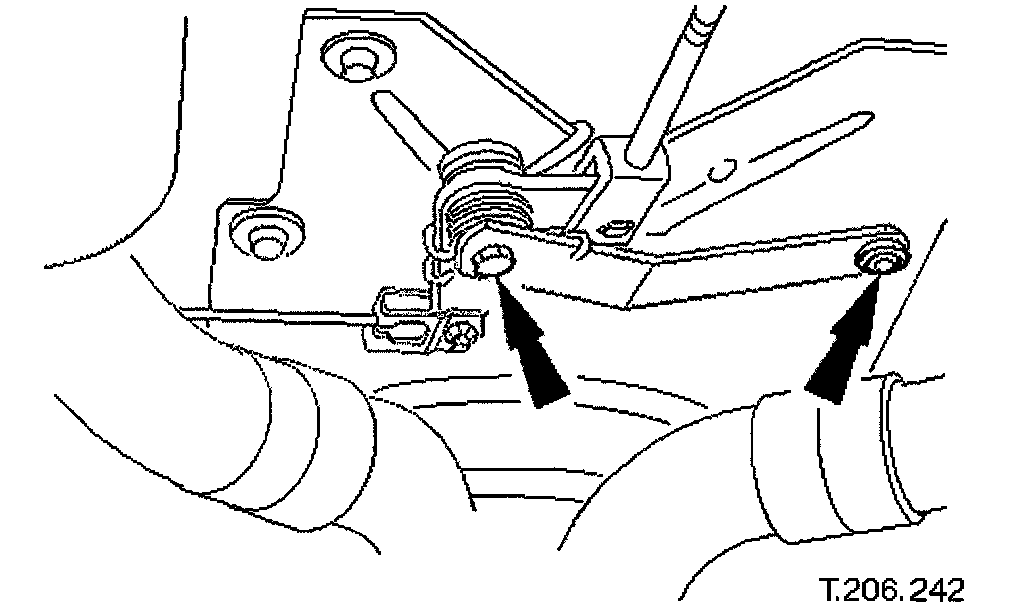

2. Tighten bolts.
- Tighten bolt to 22 - 28 Nm.

3. Adjust parking-brake cable.
