Parking Brake System: Locations

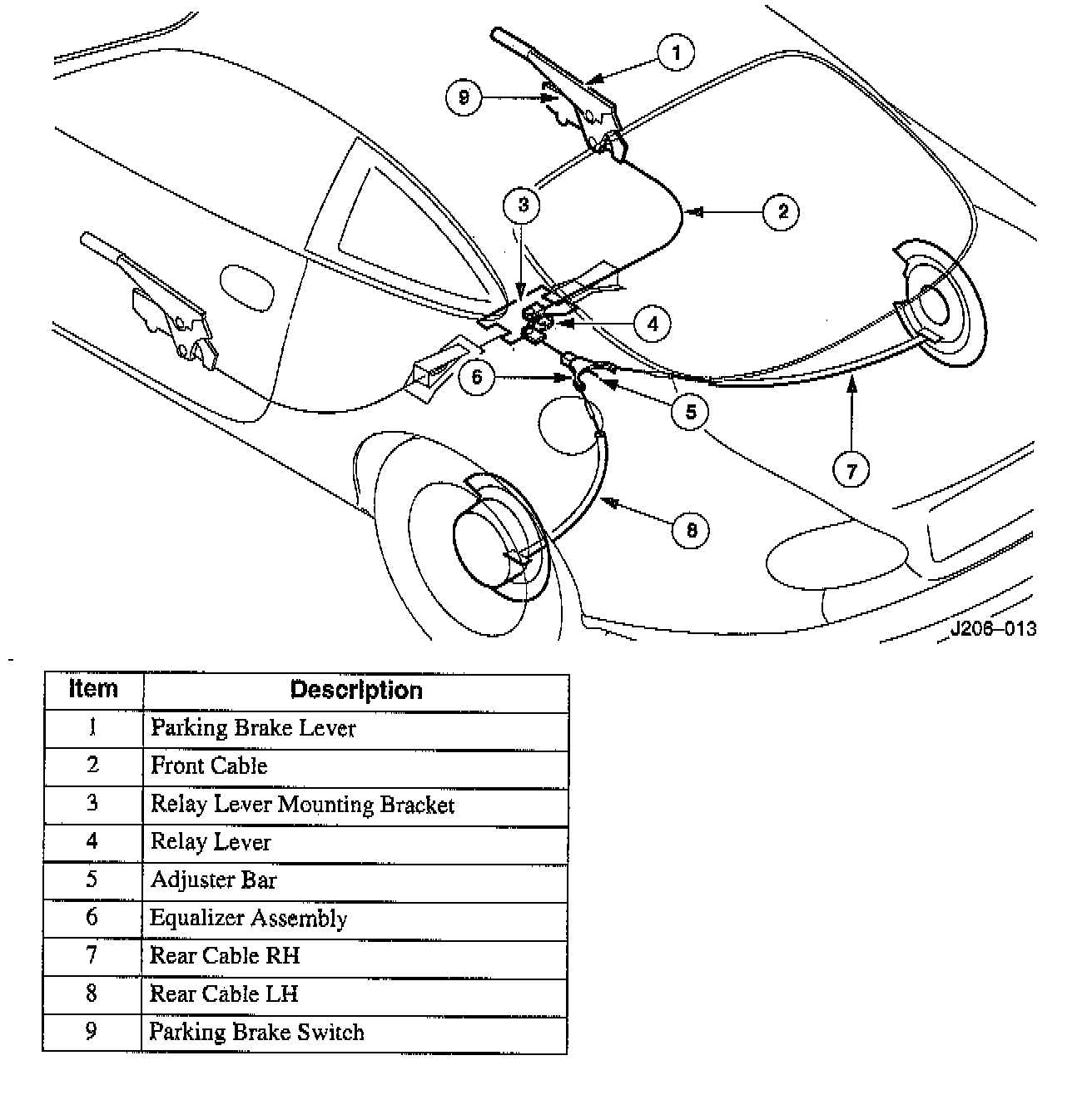

LEGEND
(1) Parking Brake Lever
(2) Front Cable
(3) Relay Lever Mounting Bracket
(4) Relay Lever
(5) Adjuster Bar
(6) Equalizer Assembly
(7) Rear Cable Right Hand
(8) Rear Cable Left Hand
(9) Parking Brake Switch

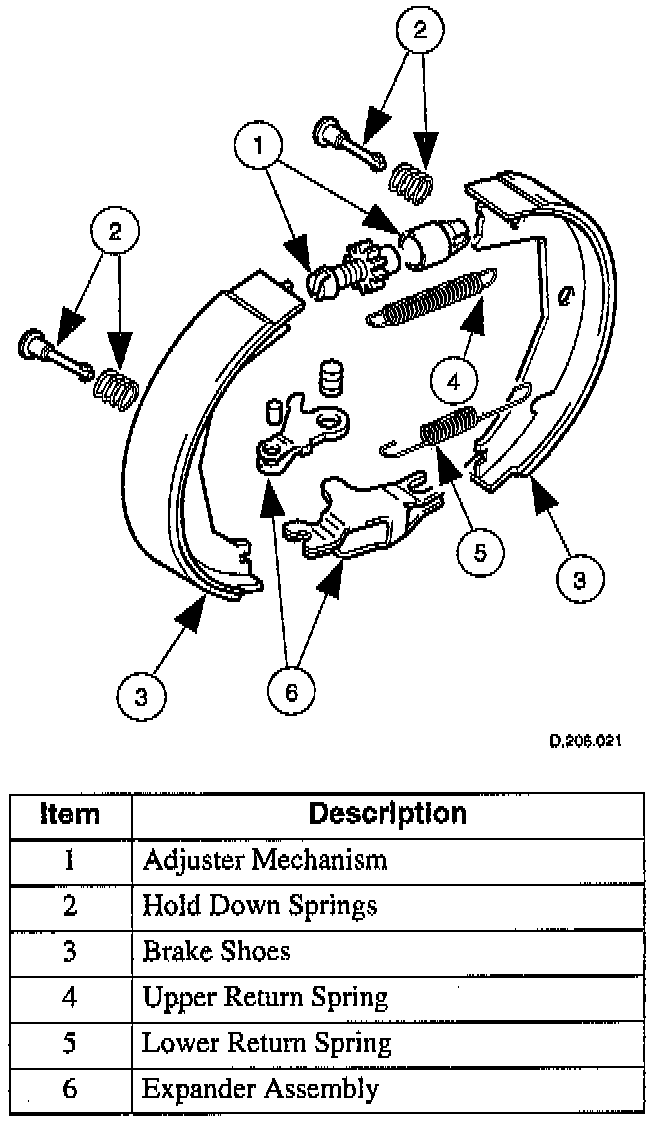

LEGEND
(1) Adjuster Mechanism
(2) Hold Down Springs
(3) Brake Shoes
(4) Upper Return Spring
(5) Lower Return Spring
(6) Expander Assembly
