Brake Calipers - Torque Specification Correction

206-03

DATE
2/97

XK8

MODEL
1997 MY-ON XK8 Range

VIN
001001-ON

Incorrect Torque Specification - Front & Rear Brake Caliper Retaining Bolts & Guide Pins

Issue:

The torque specifications for the caliper carrier retaining bolts and the guide pins are incorrect in the XK8 Vehicle Service Manual (VSM), Section 206, dated 08-96.

Action:

The following torque values apply during any Service Repair Operation in which brake caliper dismantling, removal and refitting, or brake pad renewal, are performed.

These amendments to torque figures and terminology will be included in the next issue of the Vehicle Service Manual.

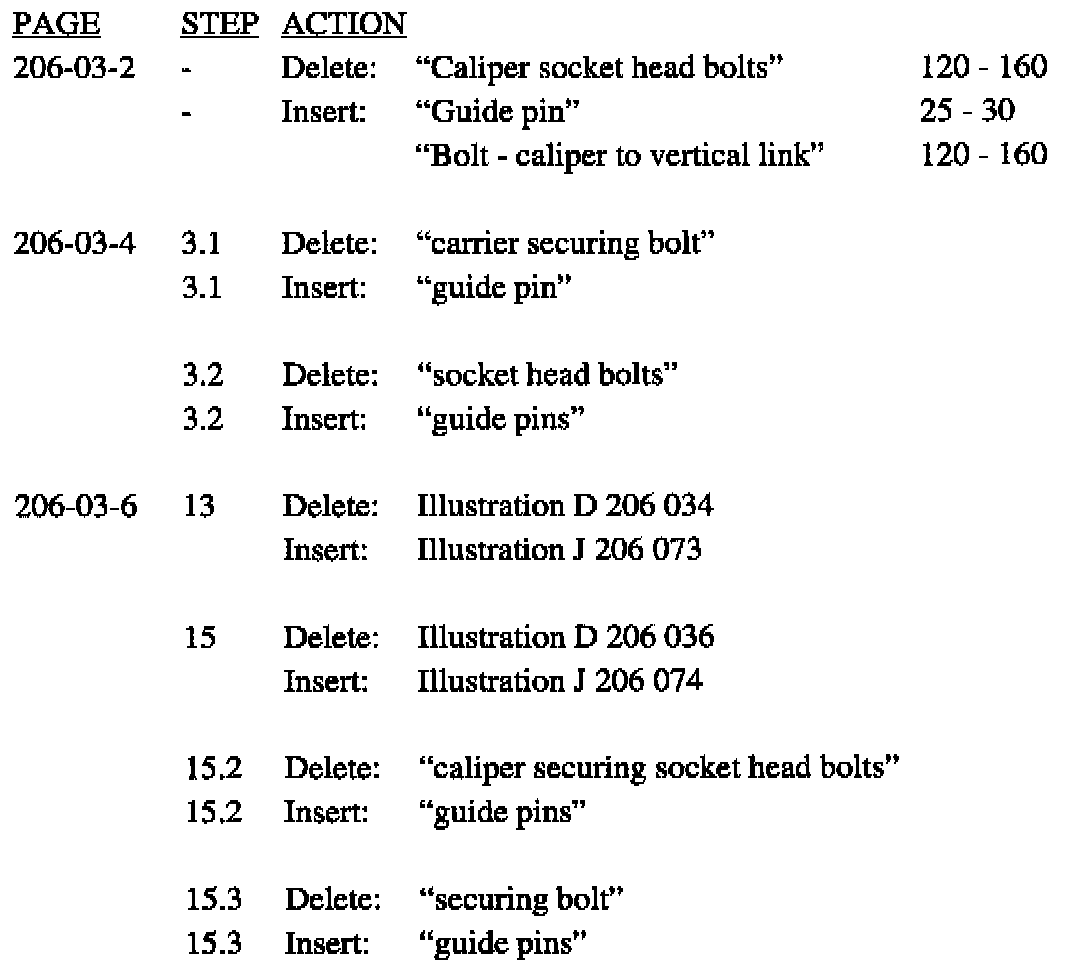

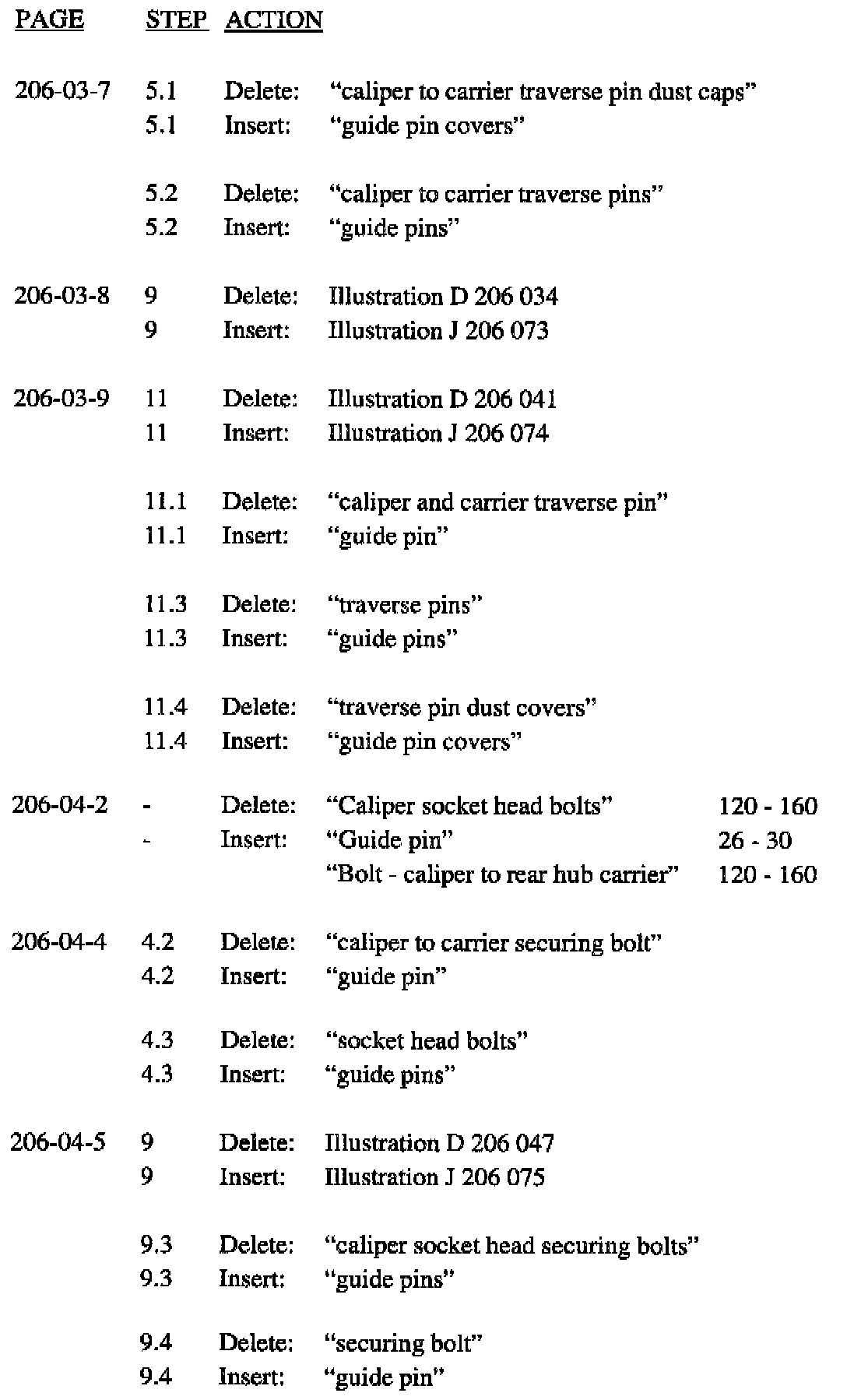

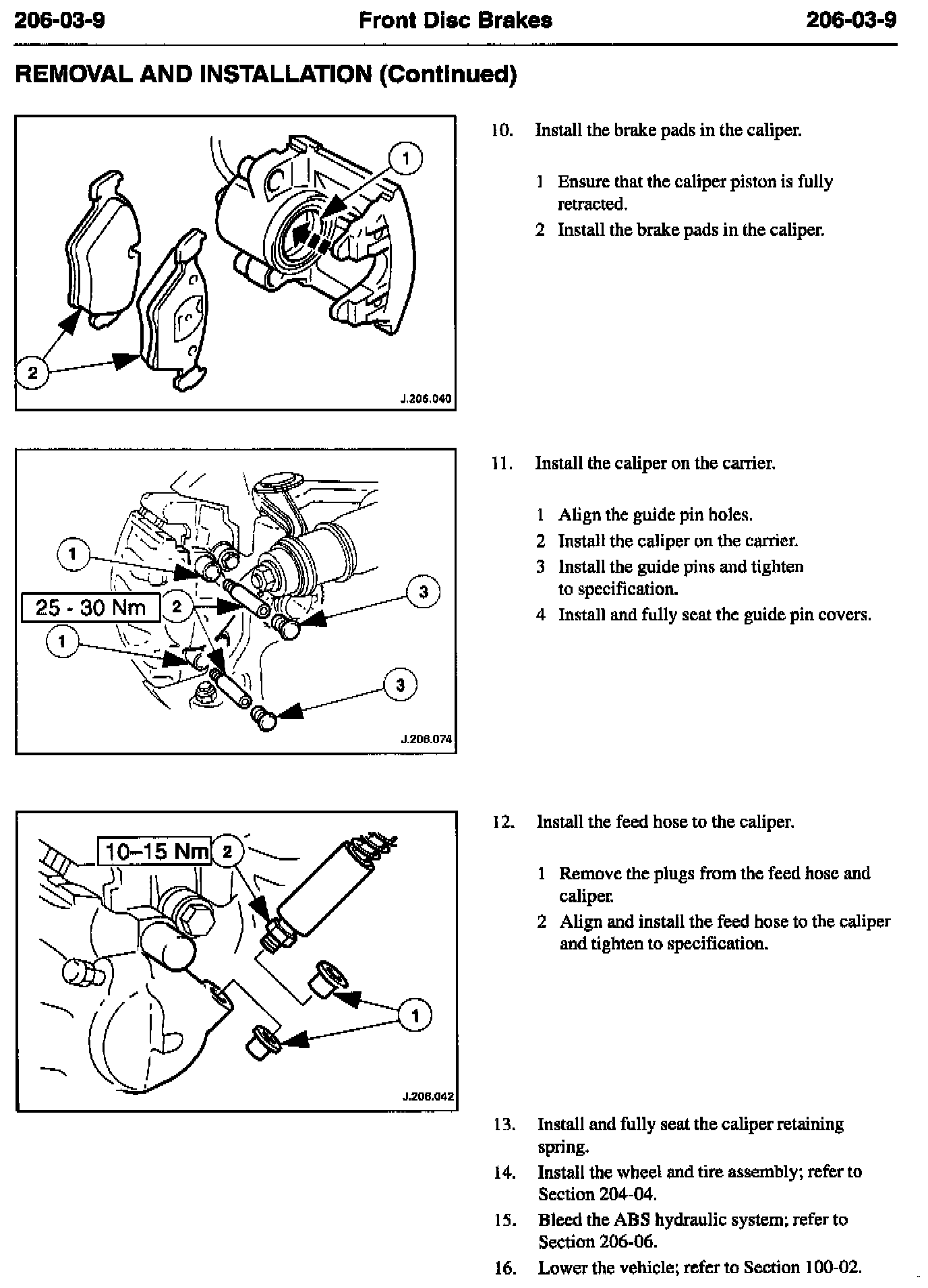

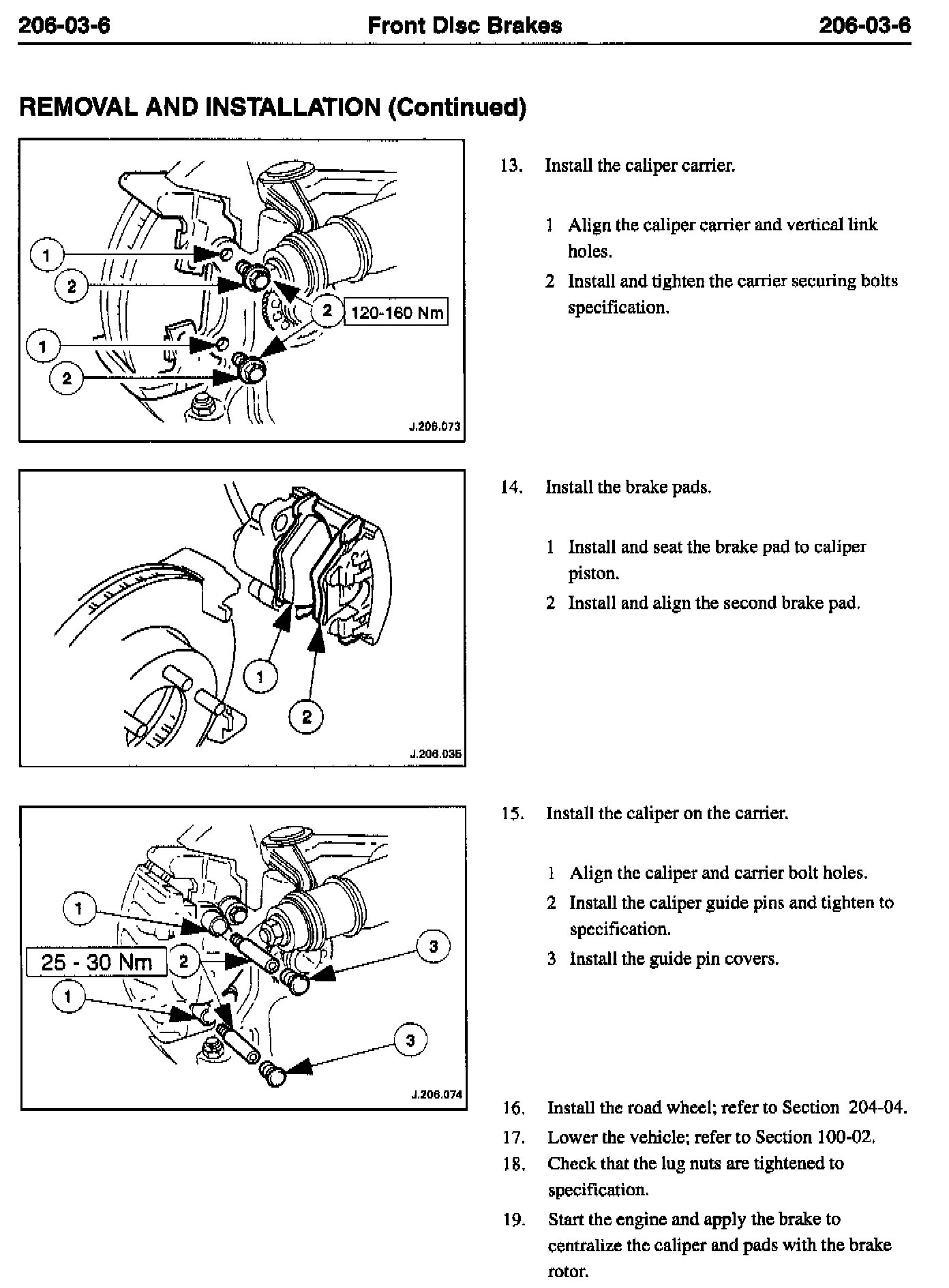

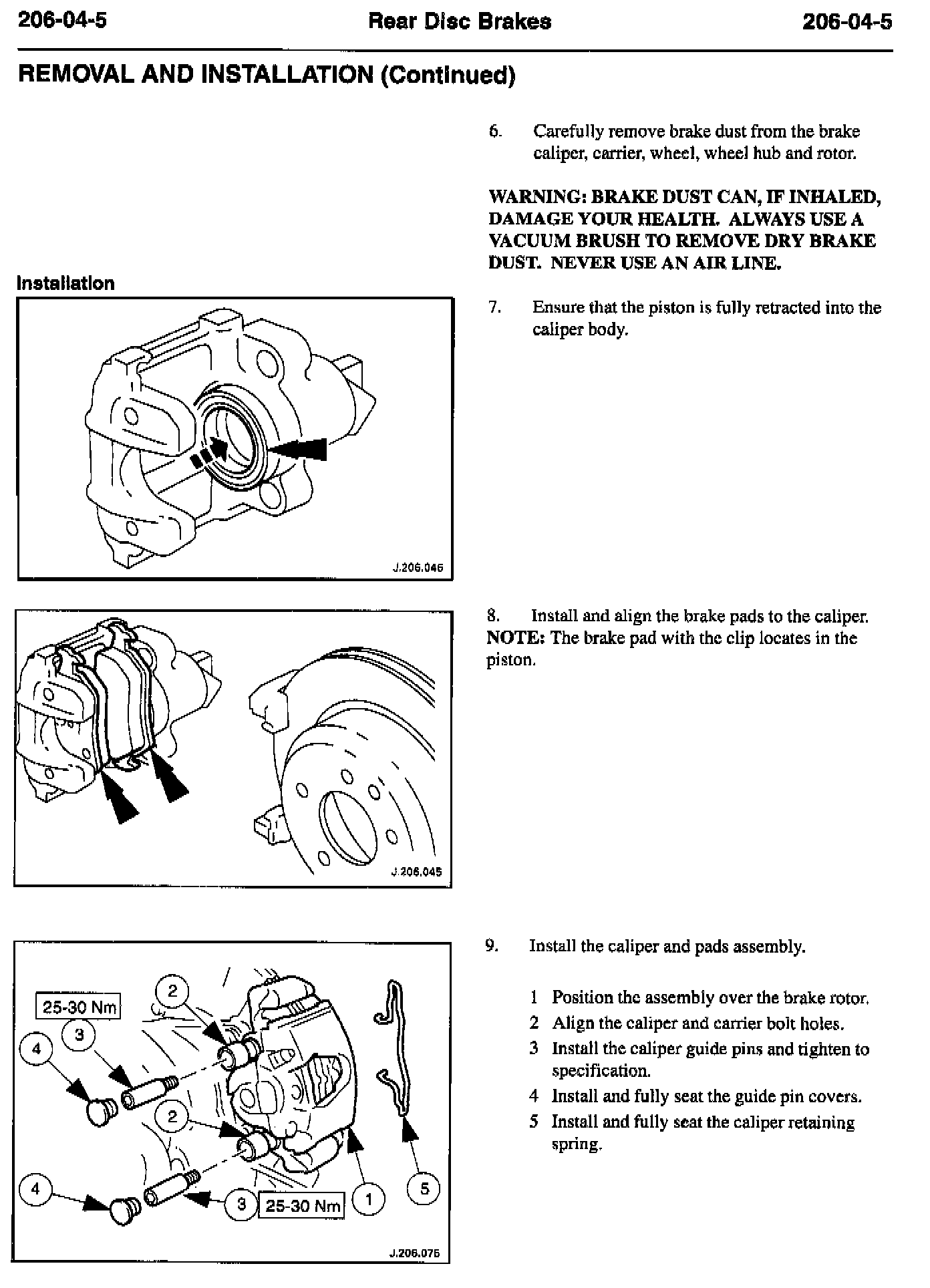

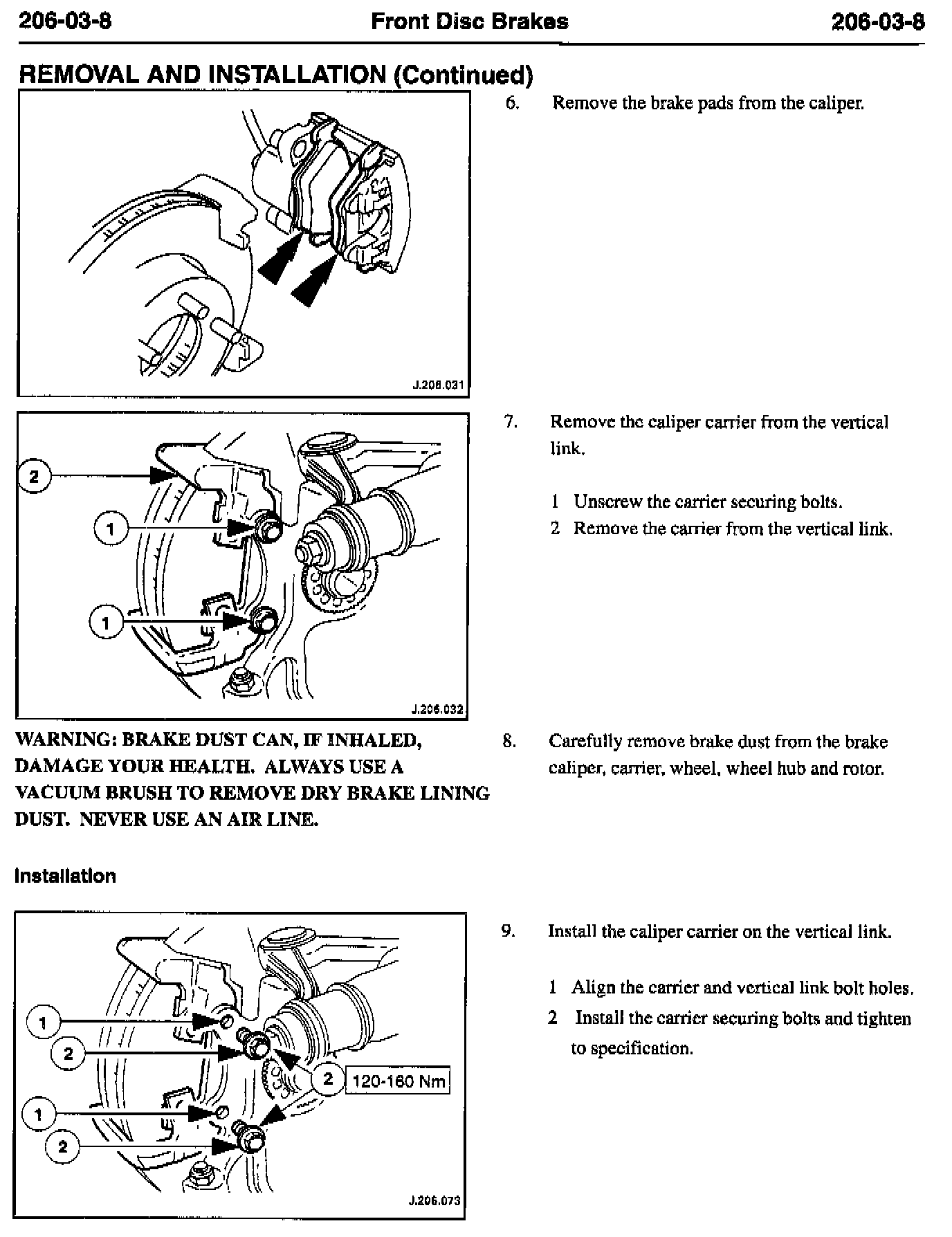

The pages with revised illustrations have been reproduced in this bulletin. Mark the following corrections in the XK8 VSM.

NOTE:
There is no change to any Parts or Warranty Information.
