Teves Mk 20-I ABS and ABS/TC Systems

Teves Mk 20-I ABS and ABS/TC Systems

DTCs are stored in the ABS/TC control module nonvolatile memory and can be accessed only through the DLC (Diagnostic Link Connector) using PDU.

Depending on the fault detected, the ABS or ABS/TC module will adopt one of the following default actions:

- System switches off - the ABS or ABS/TC system will be switched off until the fault is corrected. The brake system will operate as a normal non-anti-lock system.

- System inhibited - operation of the modulator assembly solenoid valves will be inhibited while the fault is present. The brake system will operate as a normal non-anti-lock system.

- TC/ASC switches off - the traction control and stability control systems will be switched off until the fault is corrected. ABS functions will continue to operate normally.

PDU DATALOGGER ACRONYMS

FBRAKE Stop light switch
FLWS Front left wheel speed sensor
FRWS Front right wheel speed sensor
RLWS Rear left wheel speed sensor
PRWS Pear right wheel speed sensor

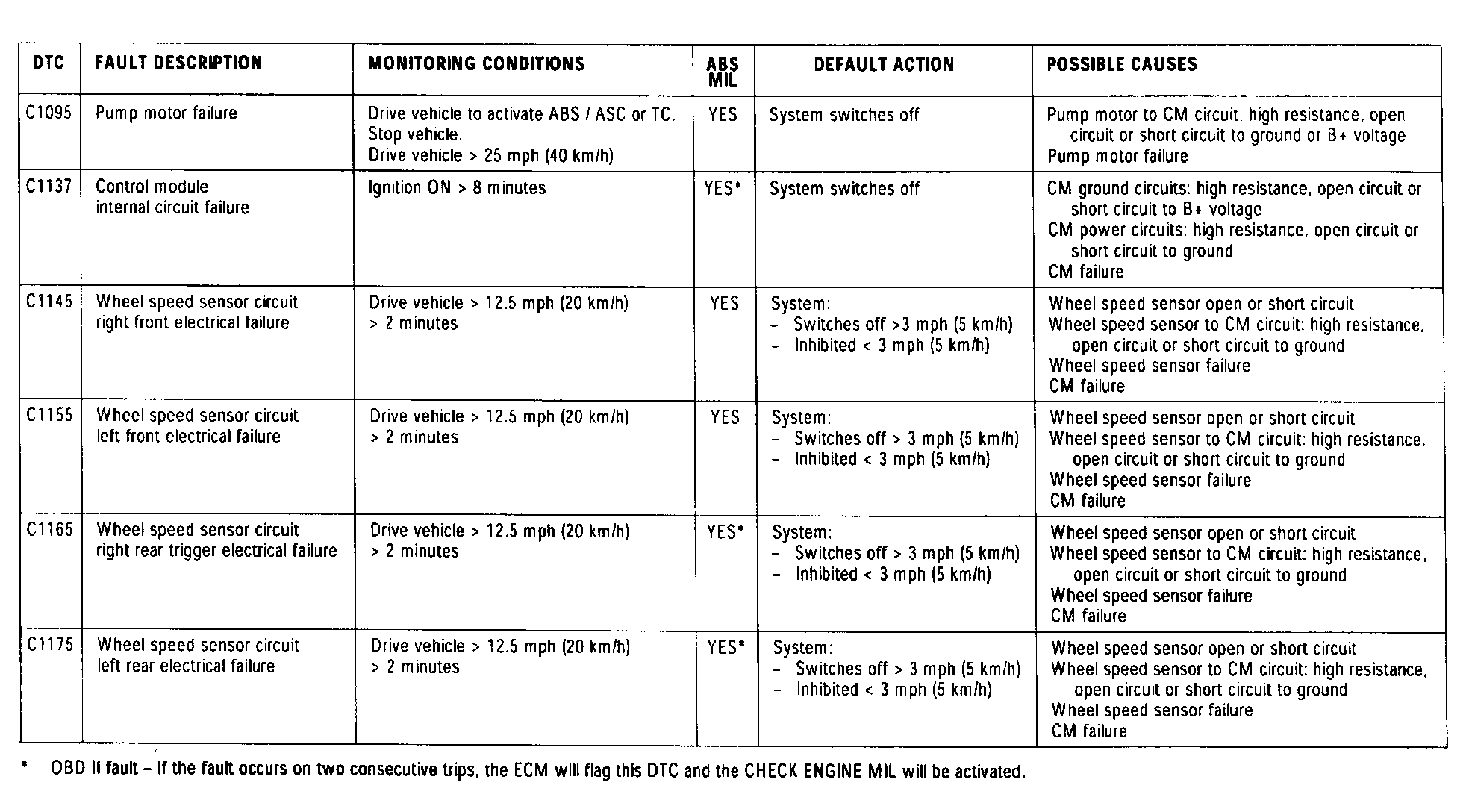

DTC C1095-C1175

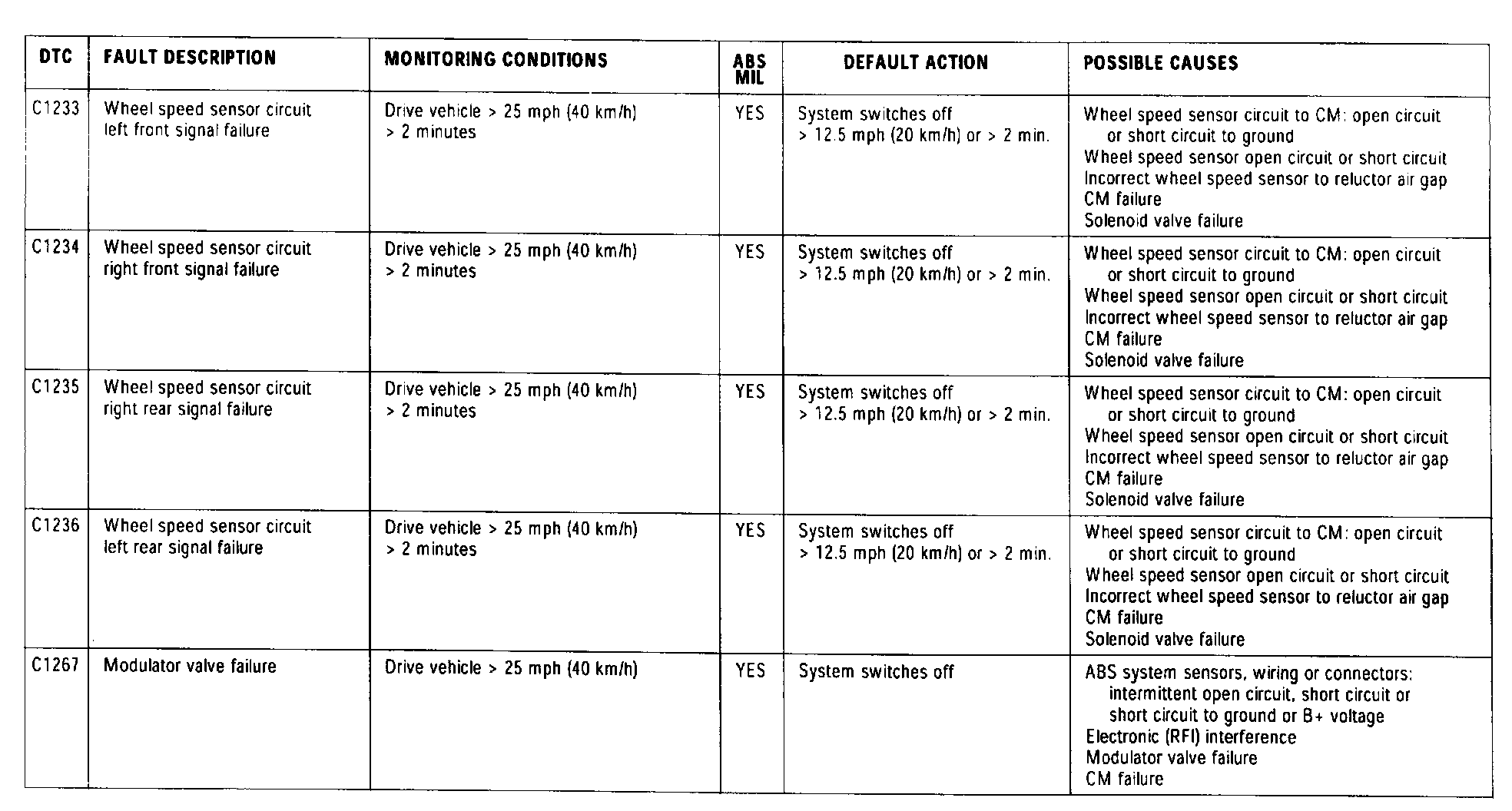

DTC C1233-C1267

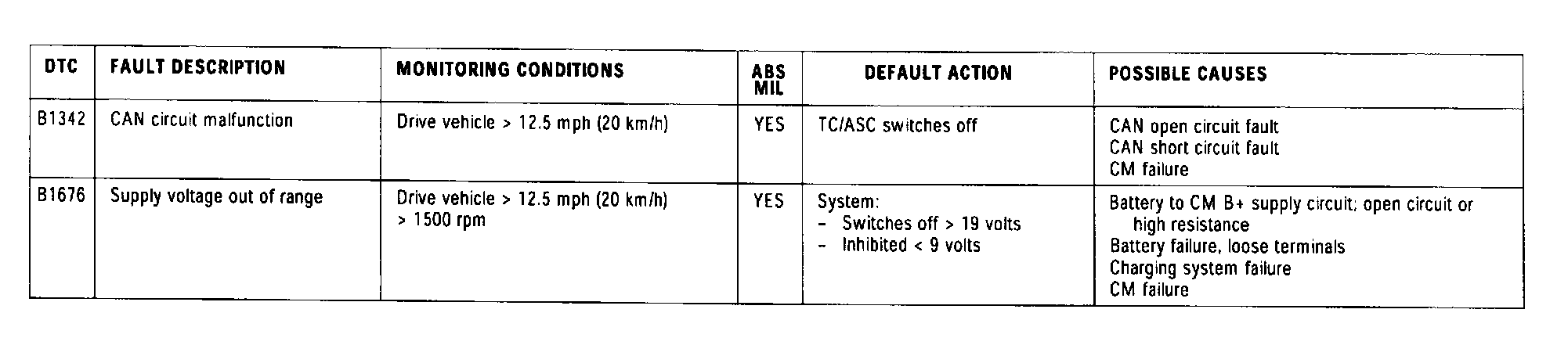

DTC B1342/B1676
