Power Seat Switch: Service and Repair

Removal
1. Power seat to fully raised position.
2. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
3. Remove front seat from vehicle and place on clean work surface. Service and Repair





4. Release seat harness multiplugs from mounting bracket and disconnect multiplugs.

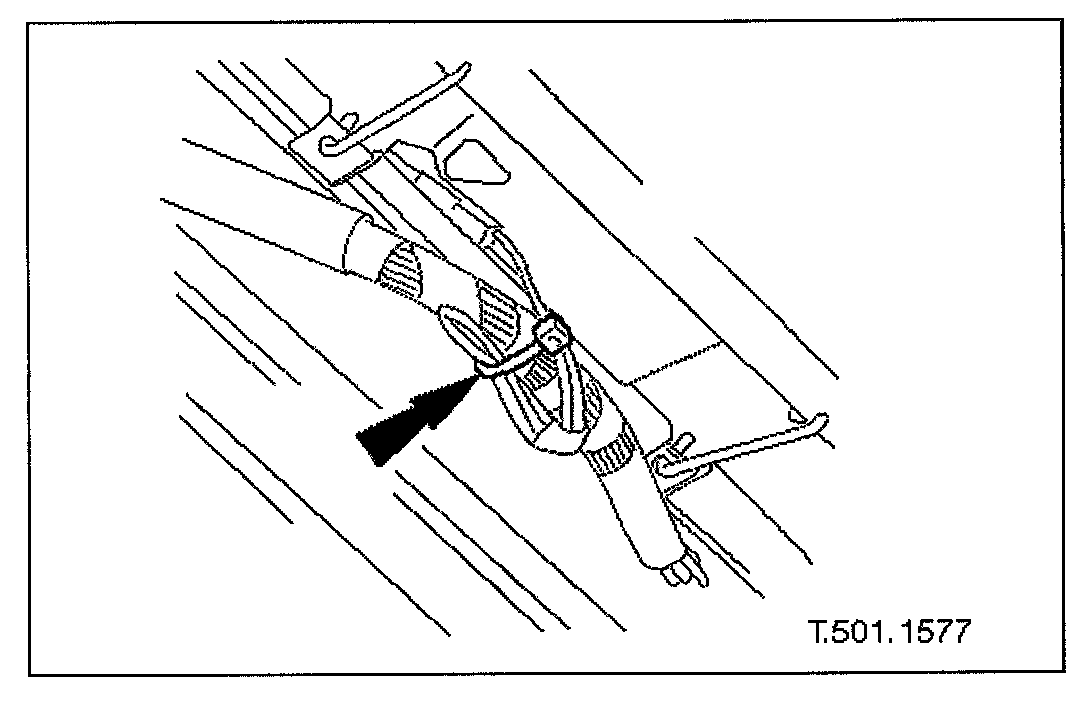

5. Sever and discard tiestraps securing seat harness to seat frame.

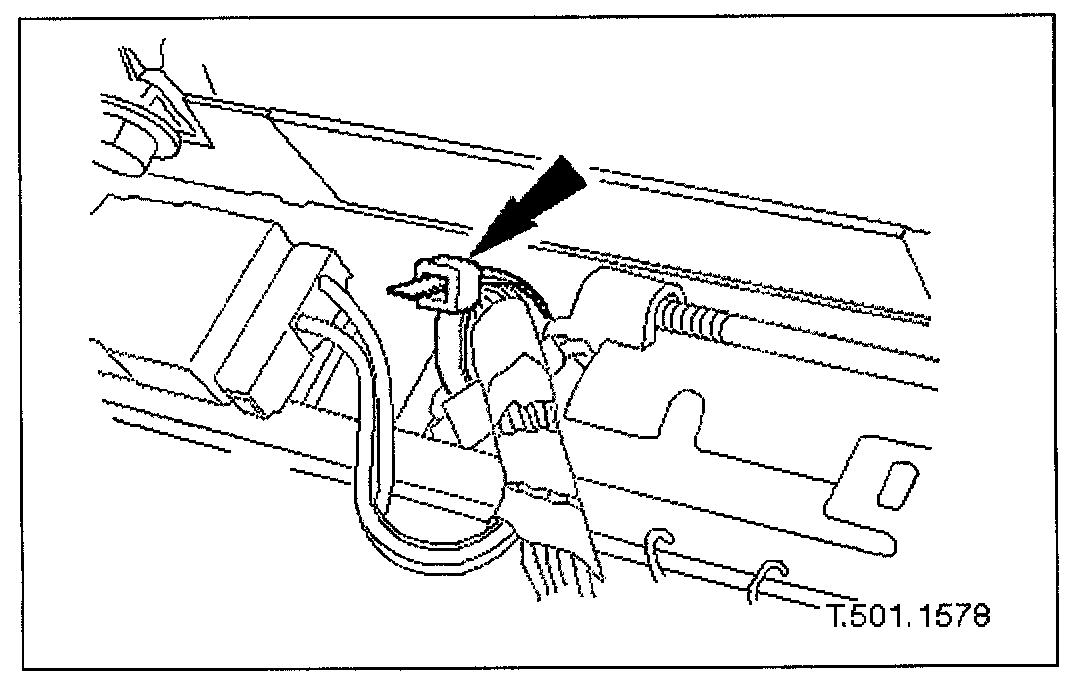

6. Sever and discard tiestrap securing seat harness to motor assembly.





7. Remove bolts securing seat slide assembly to seat frame and withdraw slide assembly.

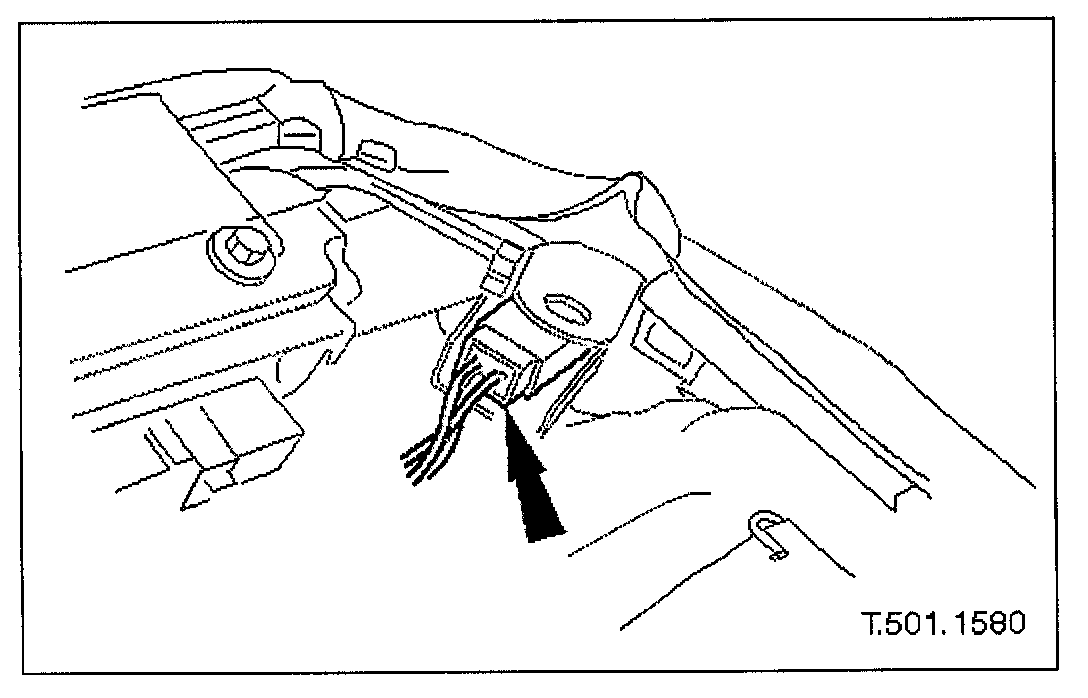

8. Disconnect switchpack harness multiplug.

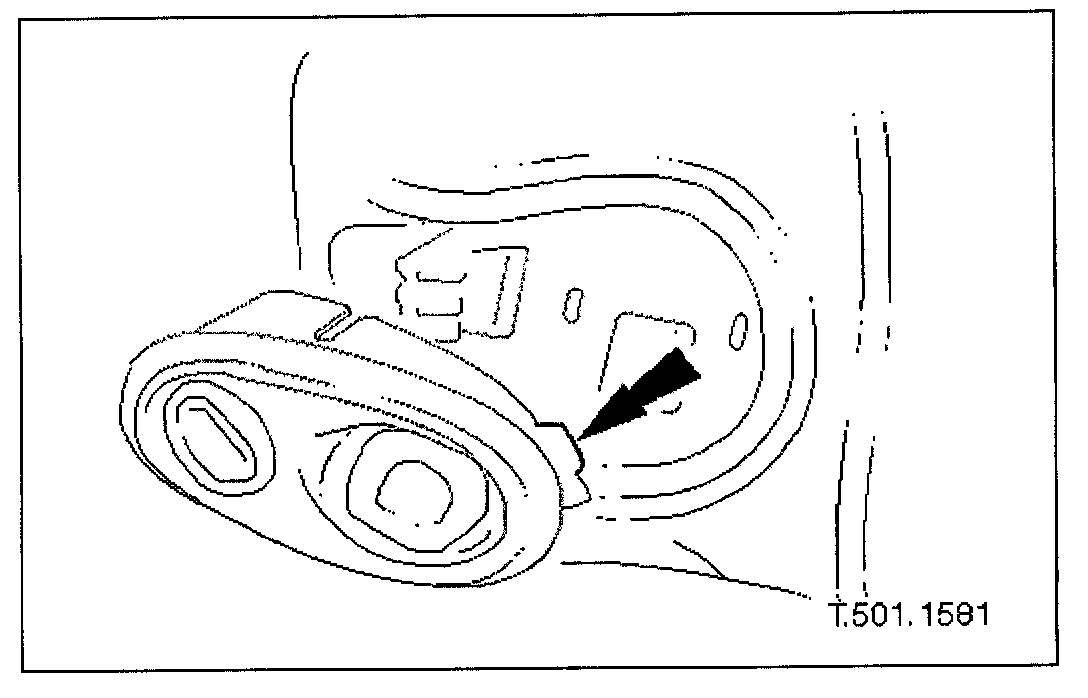

9. Positioning cushion foam for access, use a screwdriver to release switch pack securing tab.


Installation
1. Fit and fully seat switchpack in seat.
2. Positioning cushion foam for access, connect harness multiplug to switchpack.
3. Position slide assembly on seat frame and install securing bolts.
4. Connect seat harness multiplugs.
5. Install harness multiplug onto mounting bracket.
6. Using new tiestraps, secure harness to seat frame and motor.
7. Install seat assembly in vehicle.
8. Connect ground cable to battery terminal and fit battery cover. Refer to Battery Reconnection Procedure. Service and Repair
